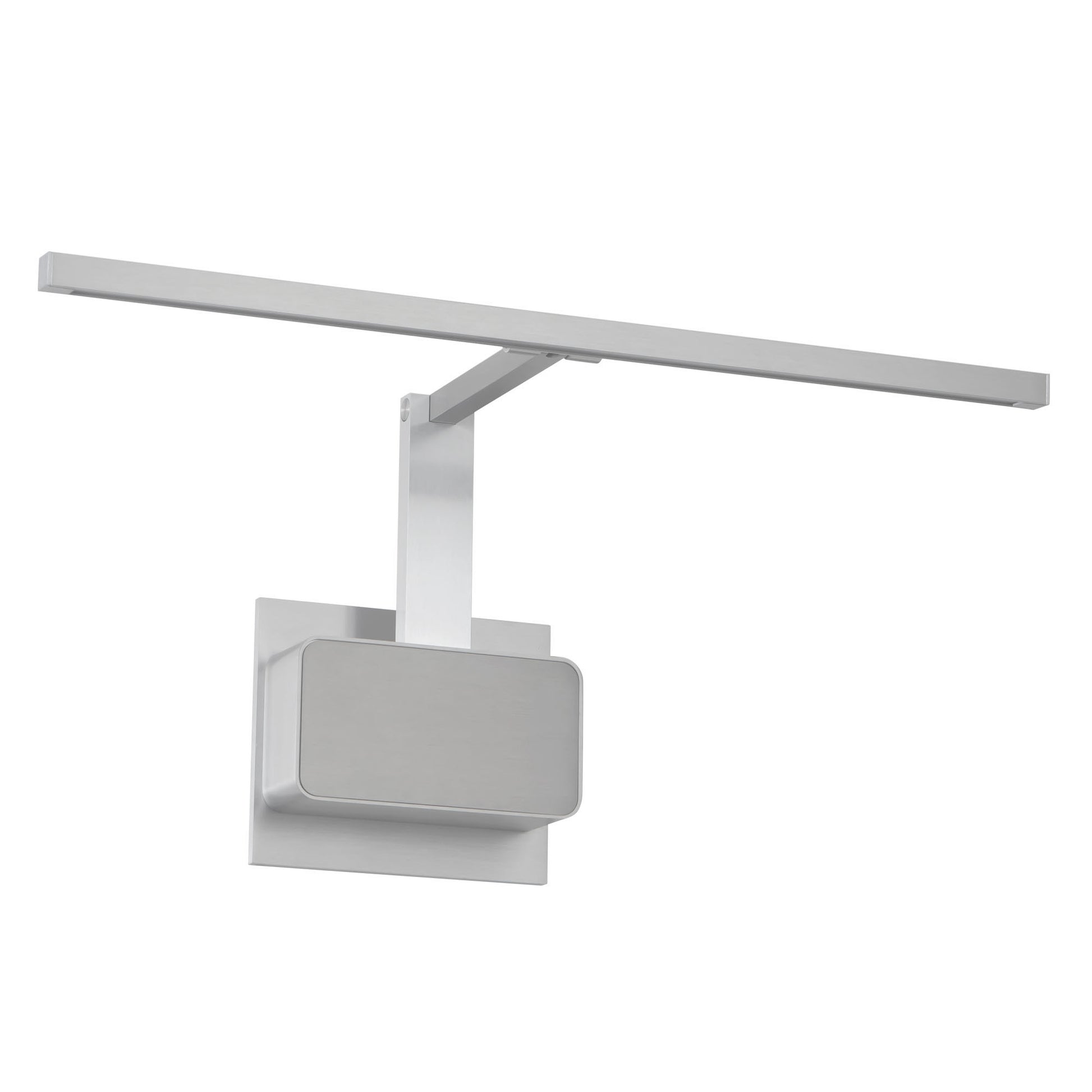

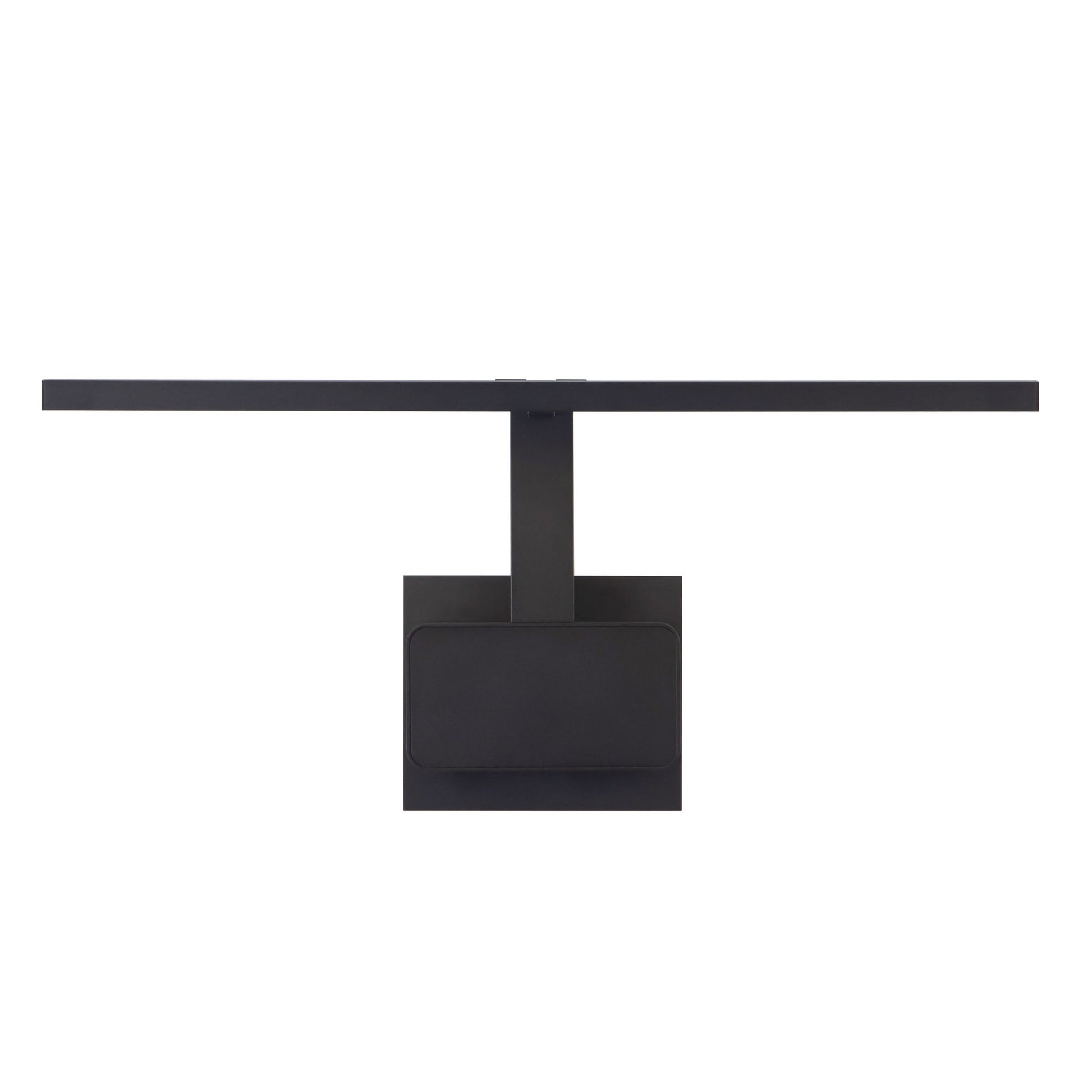

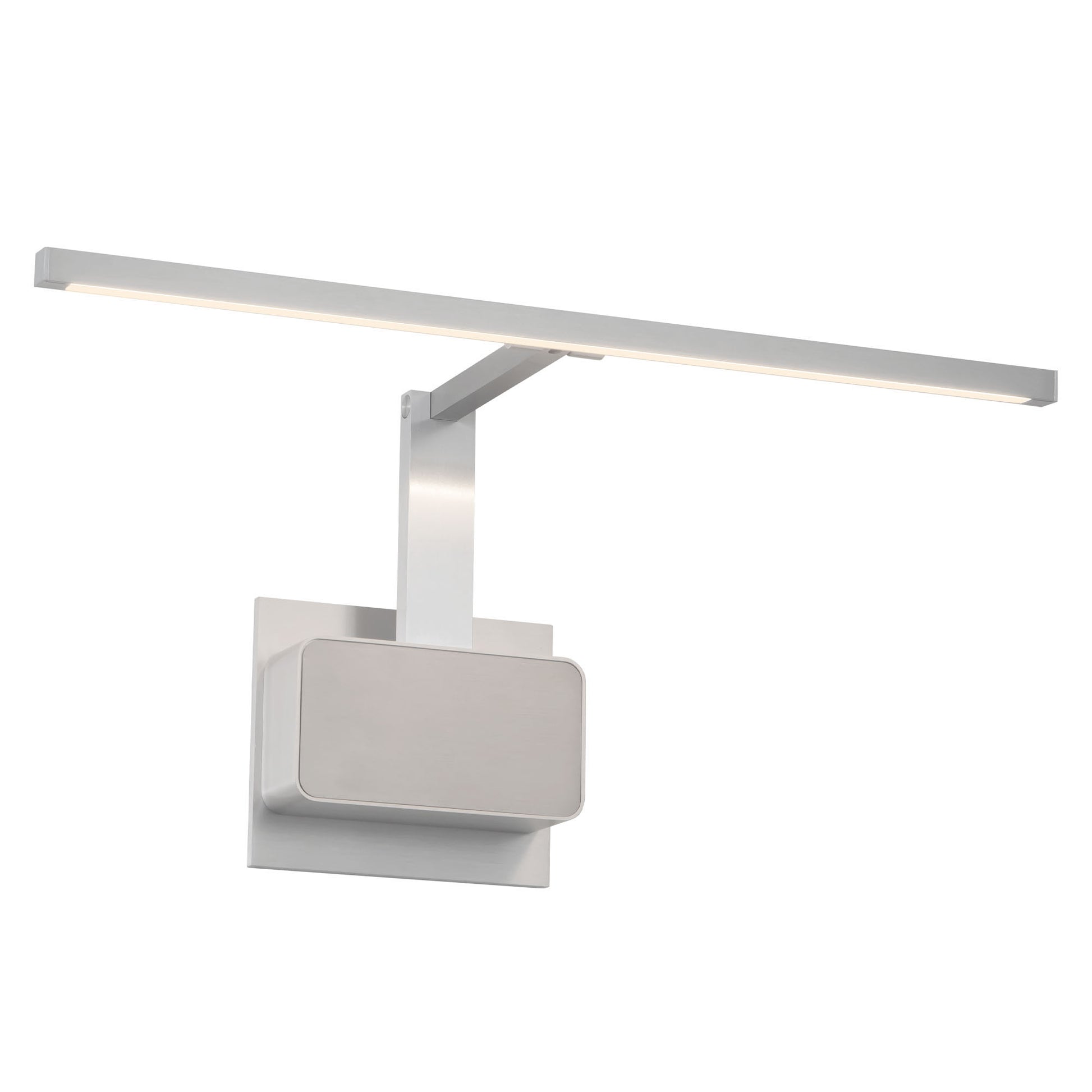

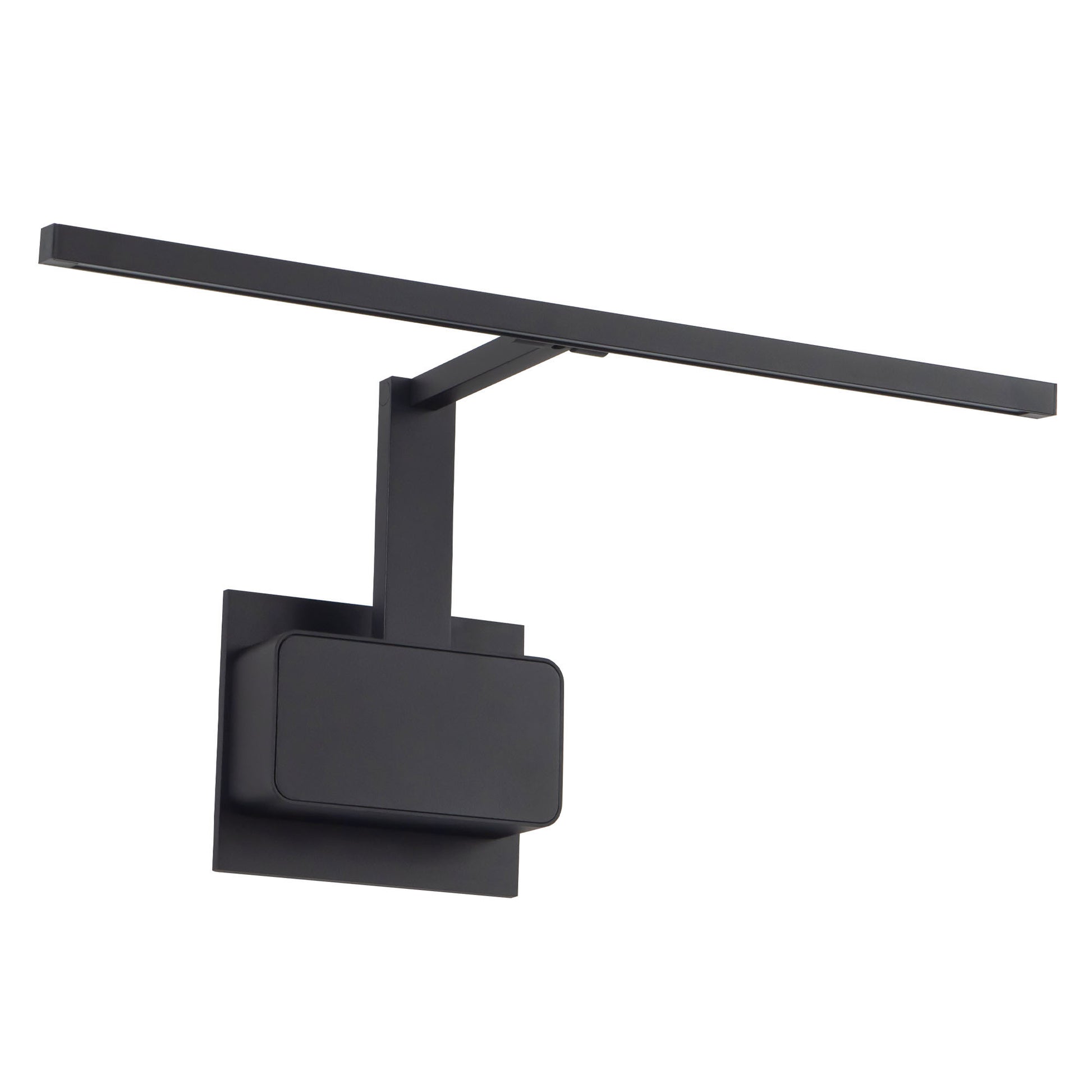

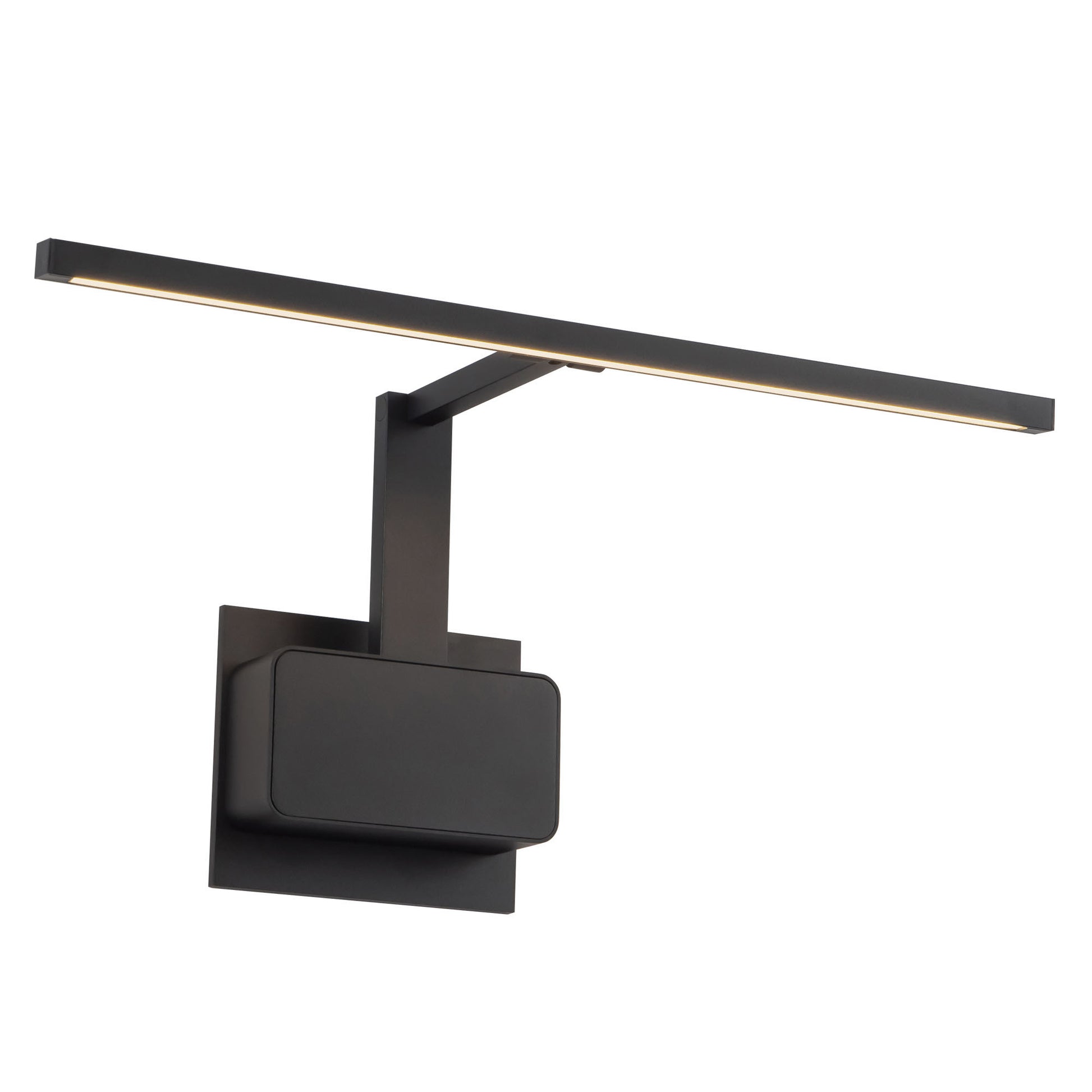

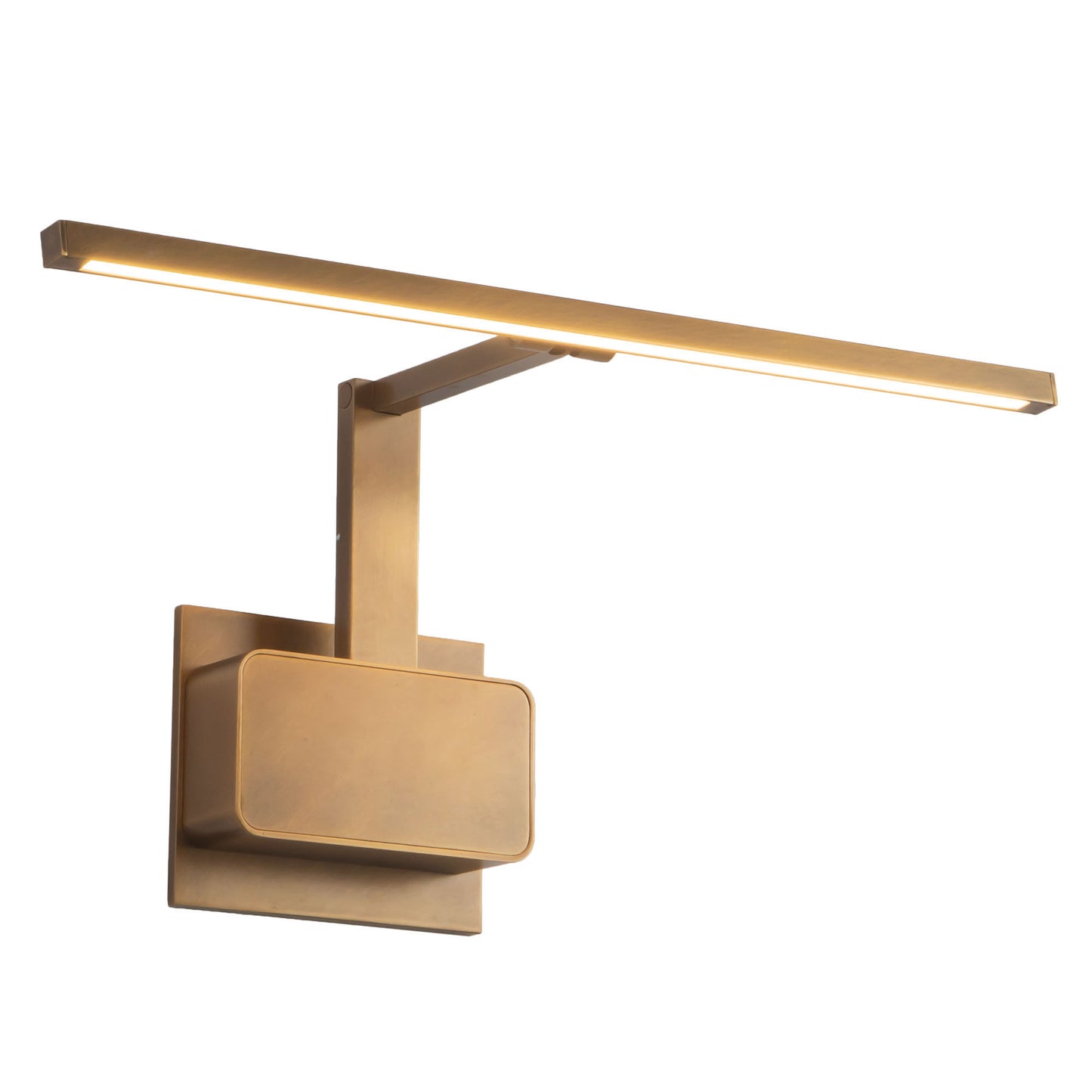

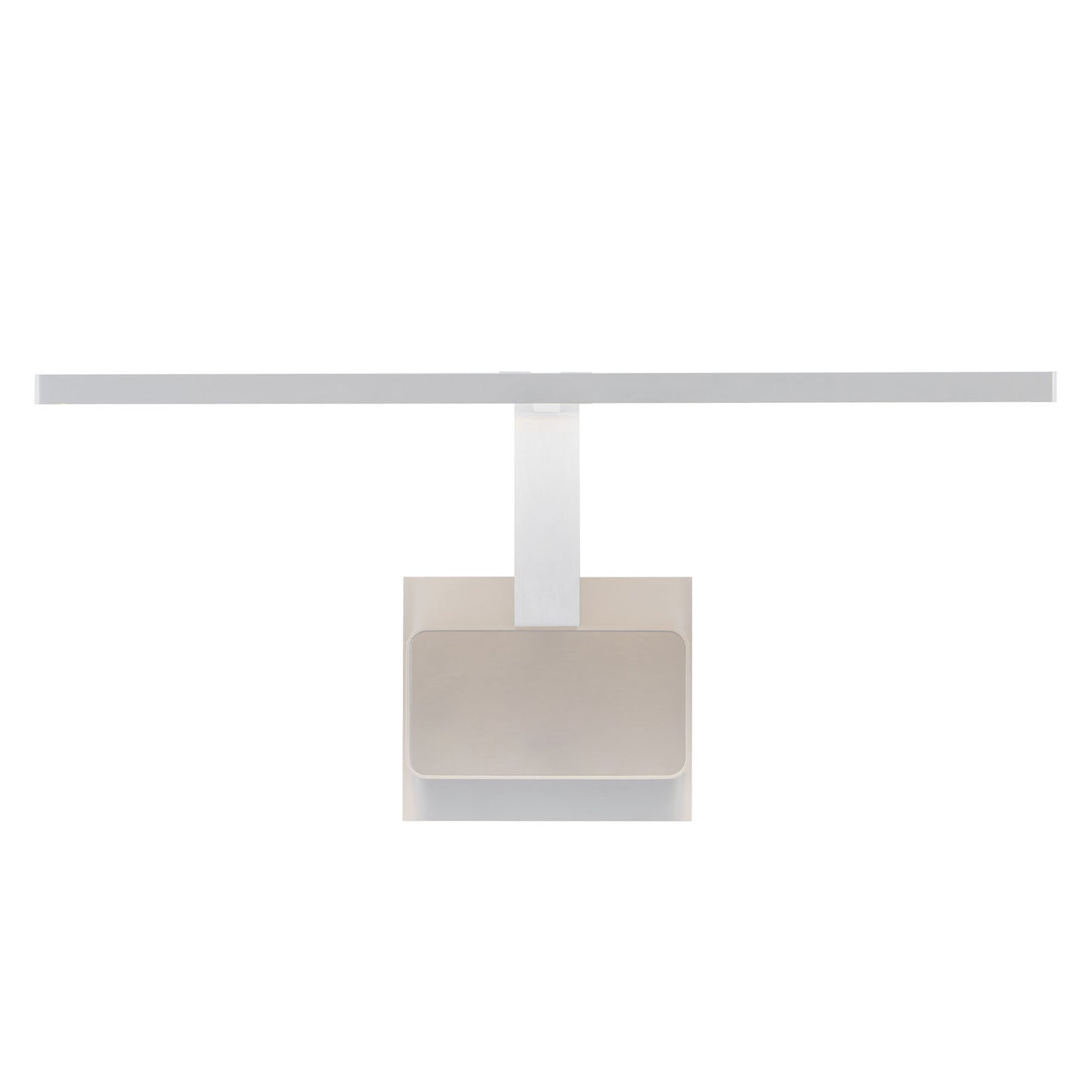

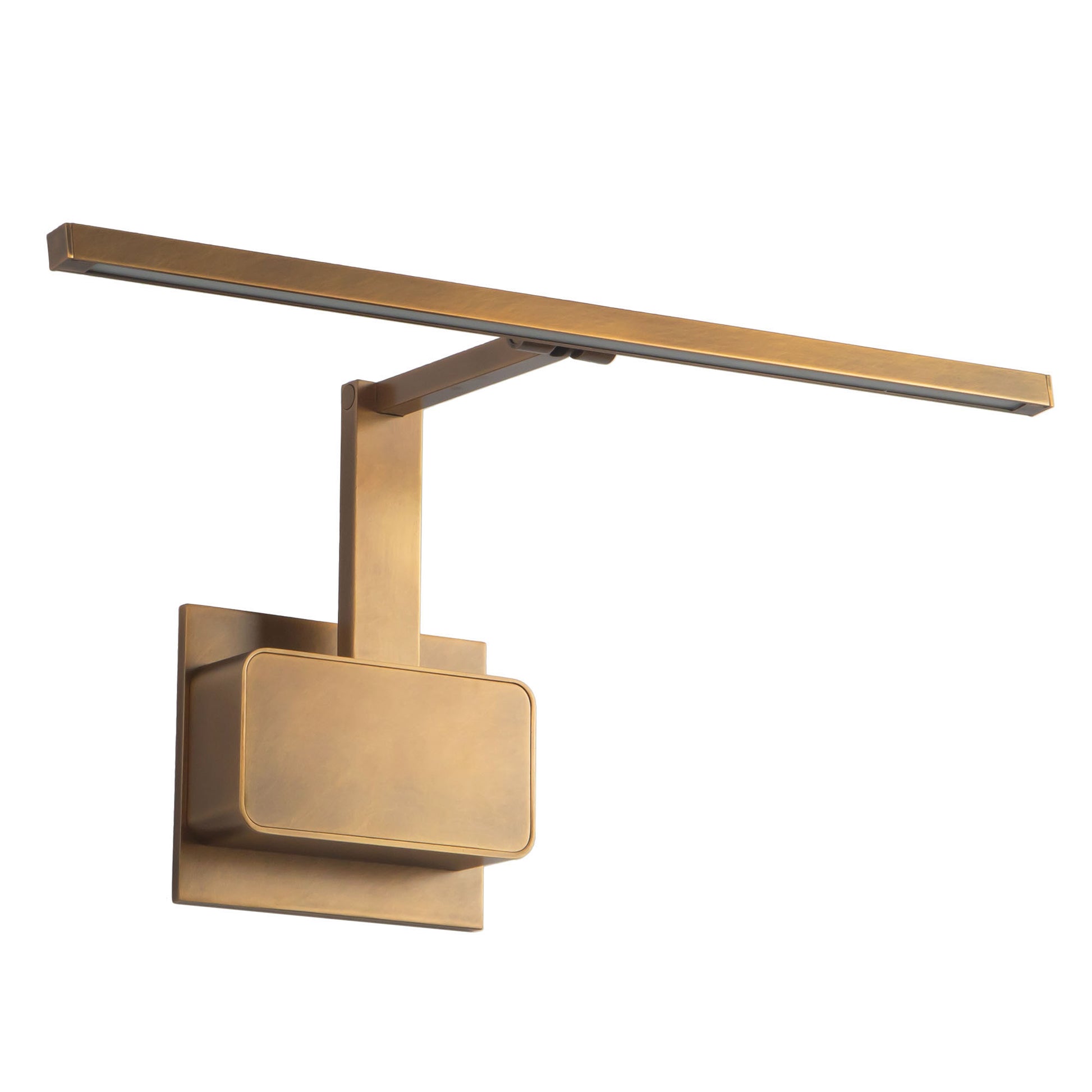

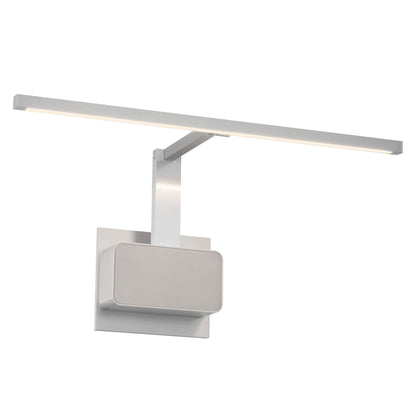

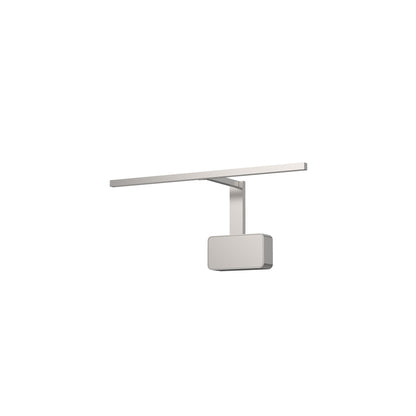

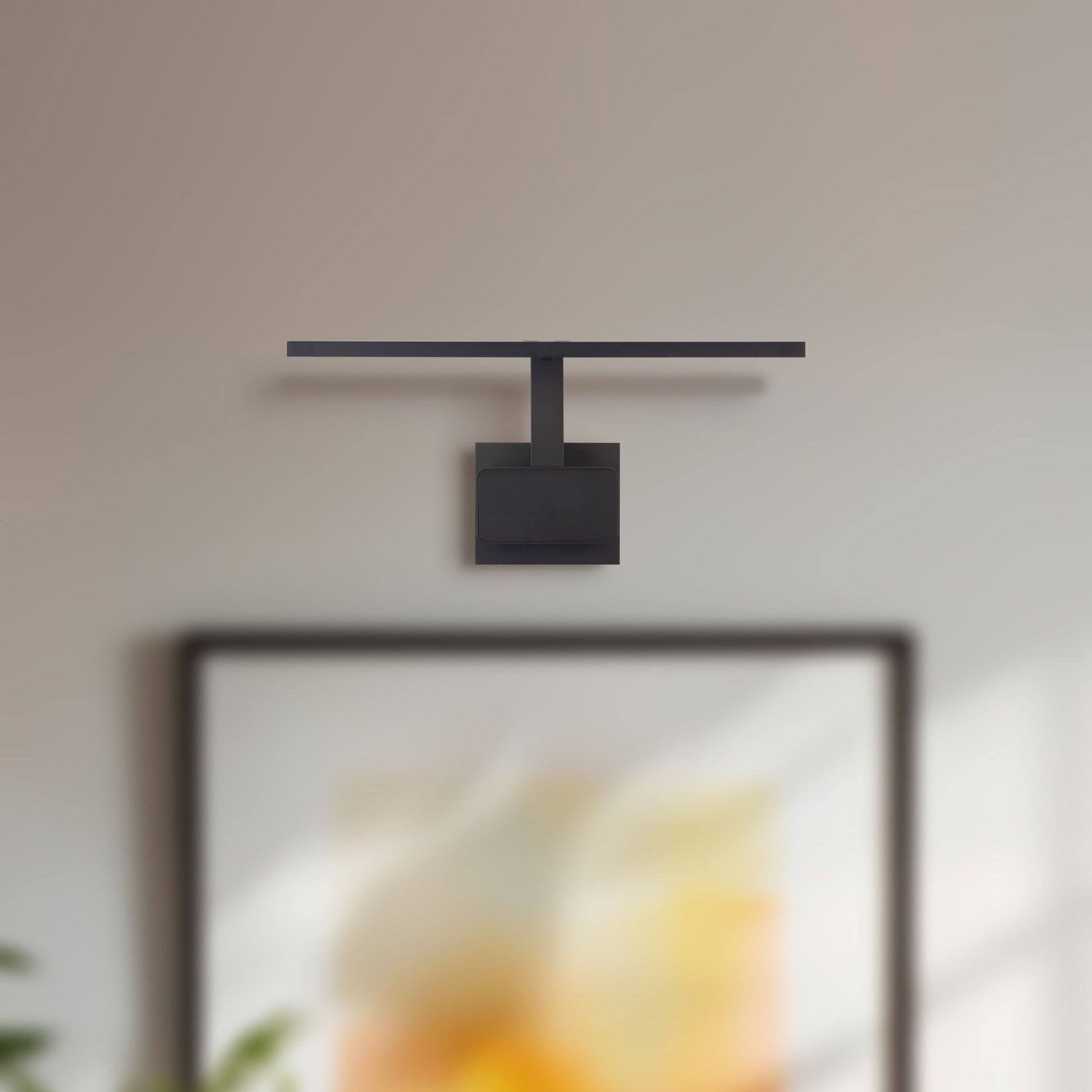

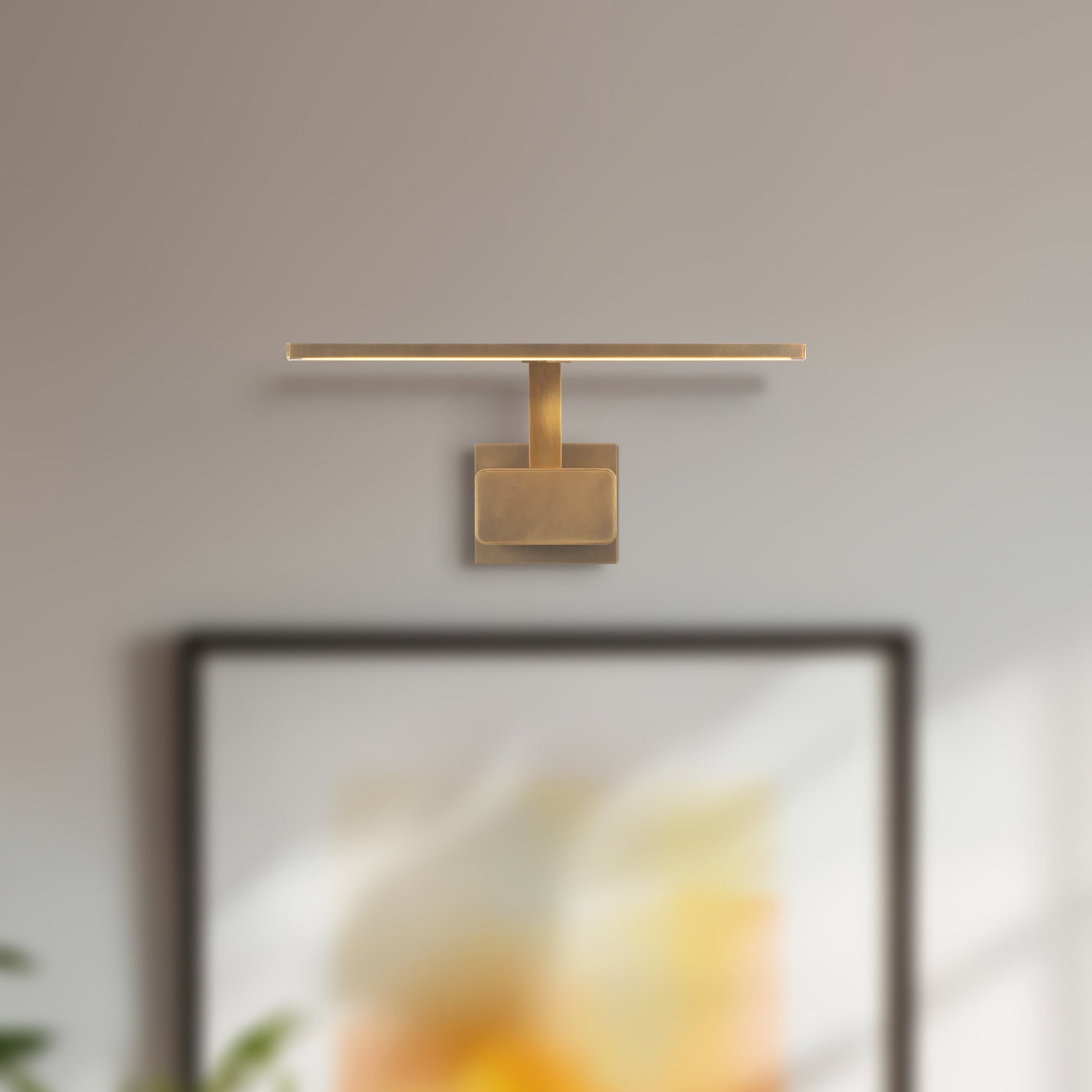

Vega Minor Picture 17-in Wall/Picture Light
Vega Minor Picture 17-in Wall/Picture Light
SKU:PL18217-BK

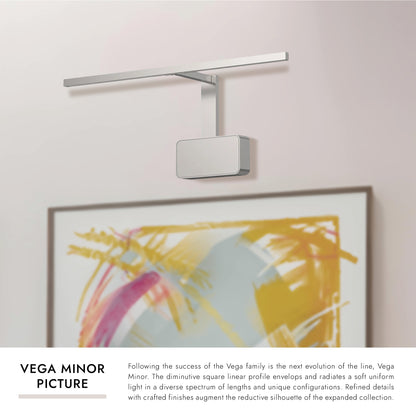

Following the success of the Vega family is the next evolution of the line, Vega Minor. The diminutive square linear profile envelops and radiates a soft uniform light in a diverse spectrum of lengths and unique configurations. Refined details with crafted finishes augment the reductive silhouette of the expanded collection.
Technical Description
Technical Description

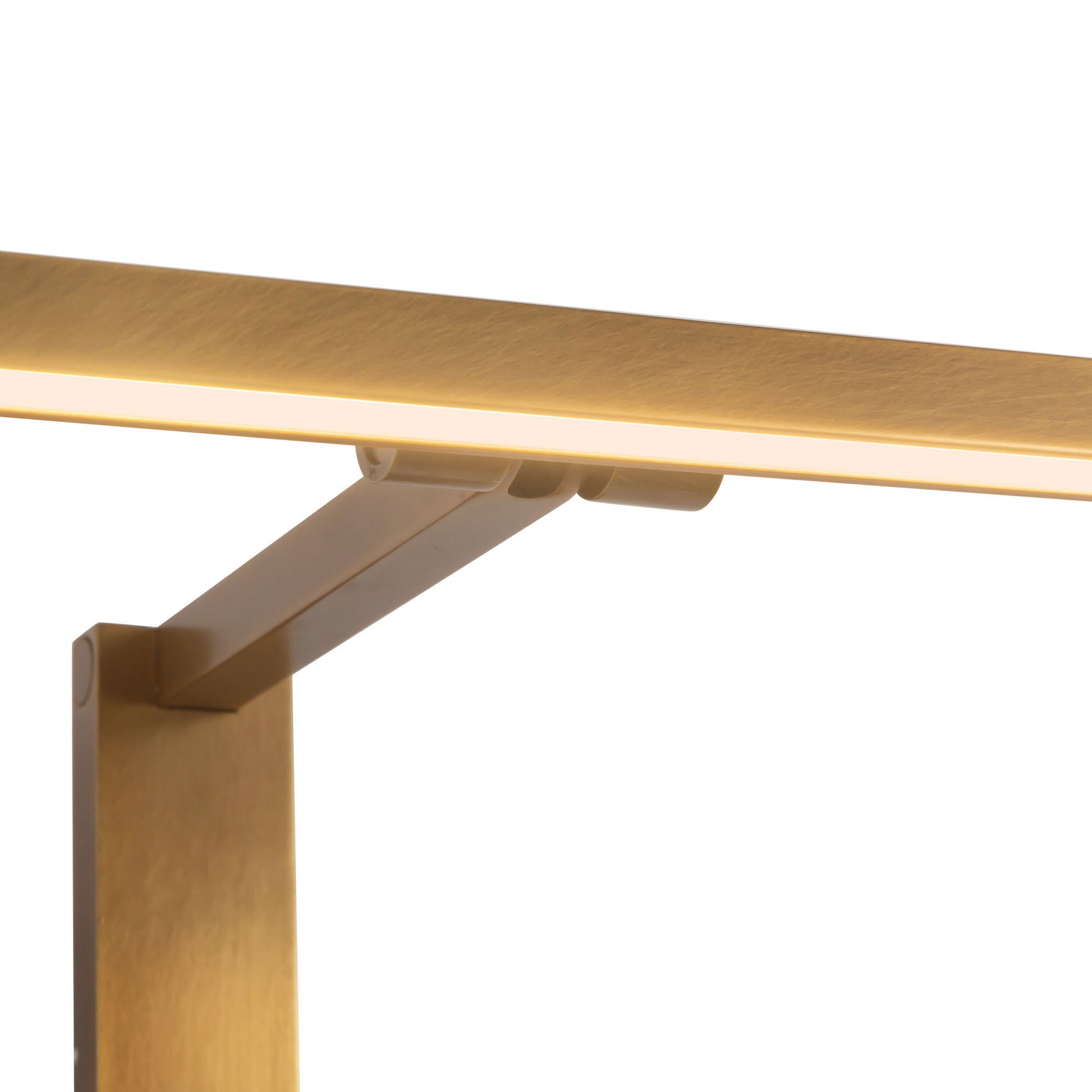

- Solid machined- and extruded-aluminum frame
- Modern powder coat or anodized finish

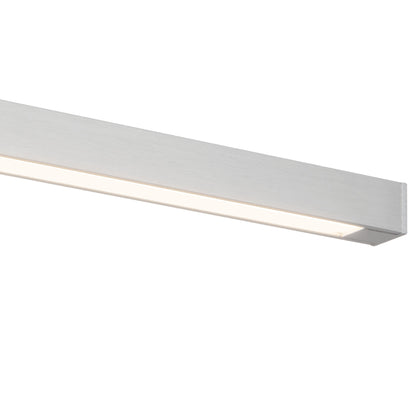

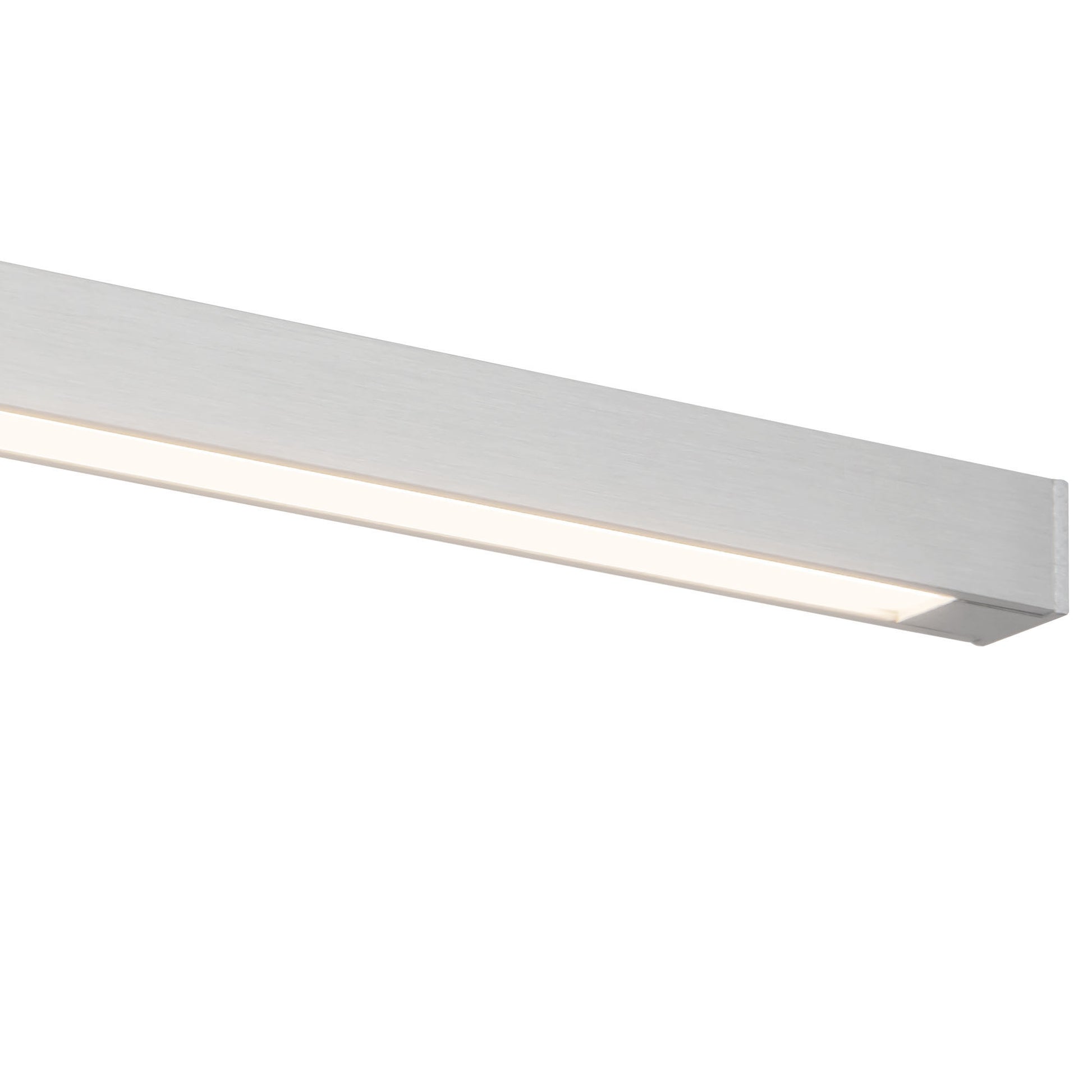

- Frosted acrylic diffuser

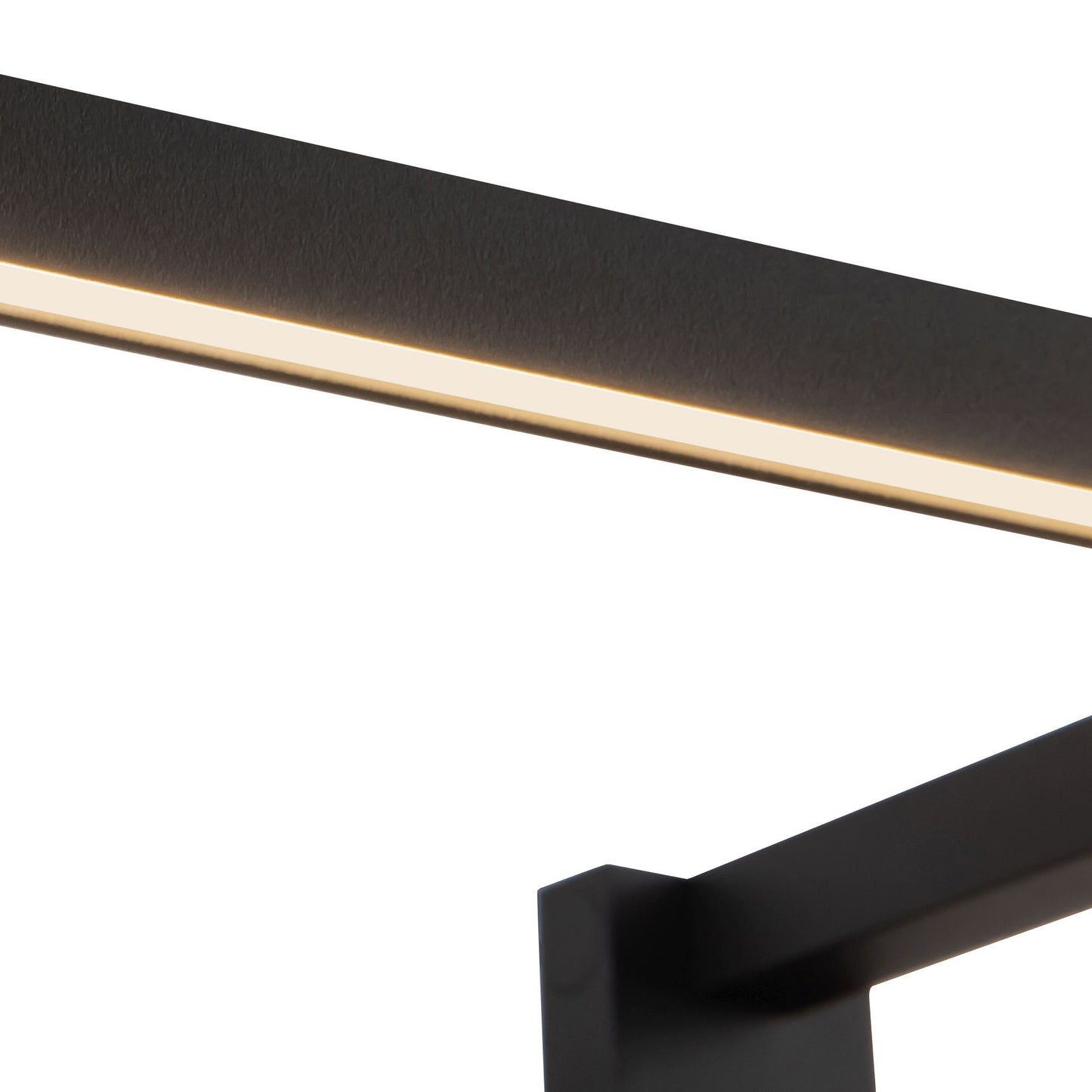

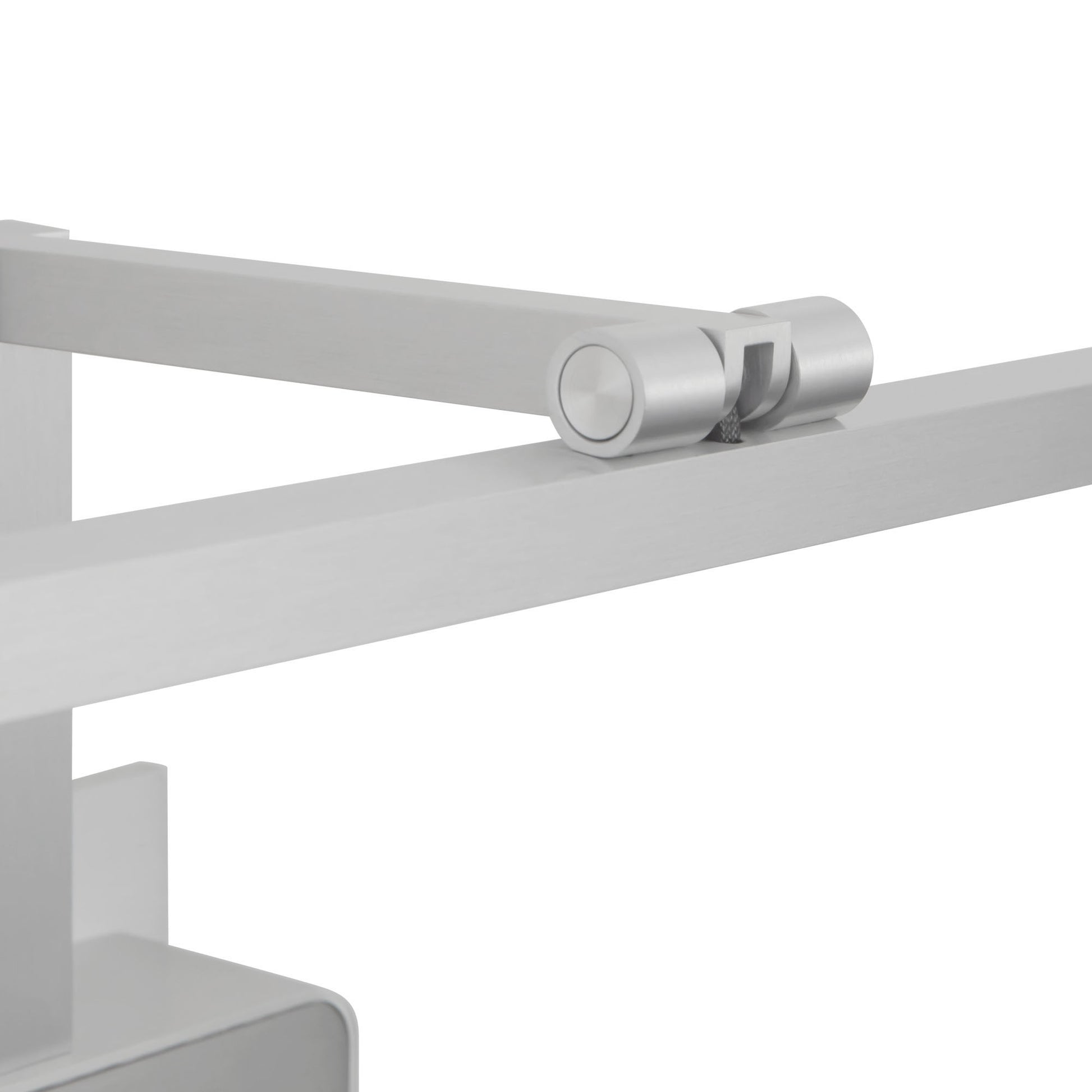

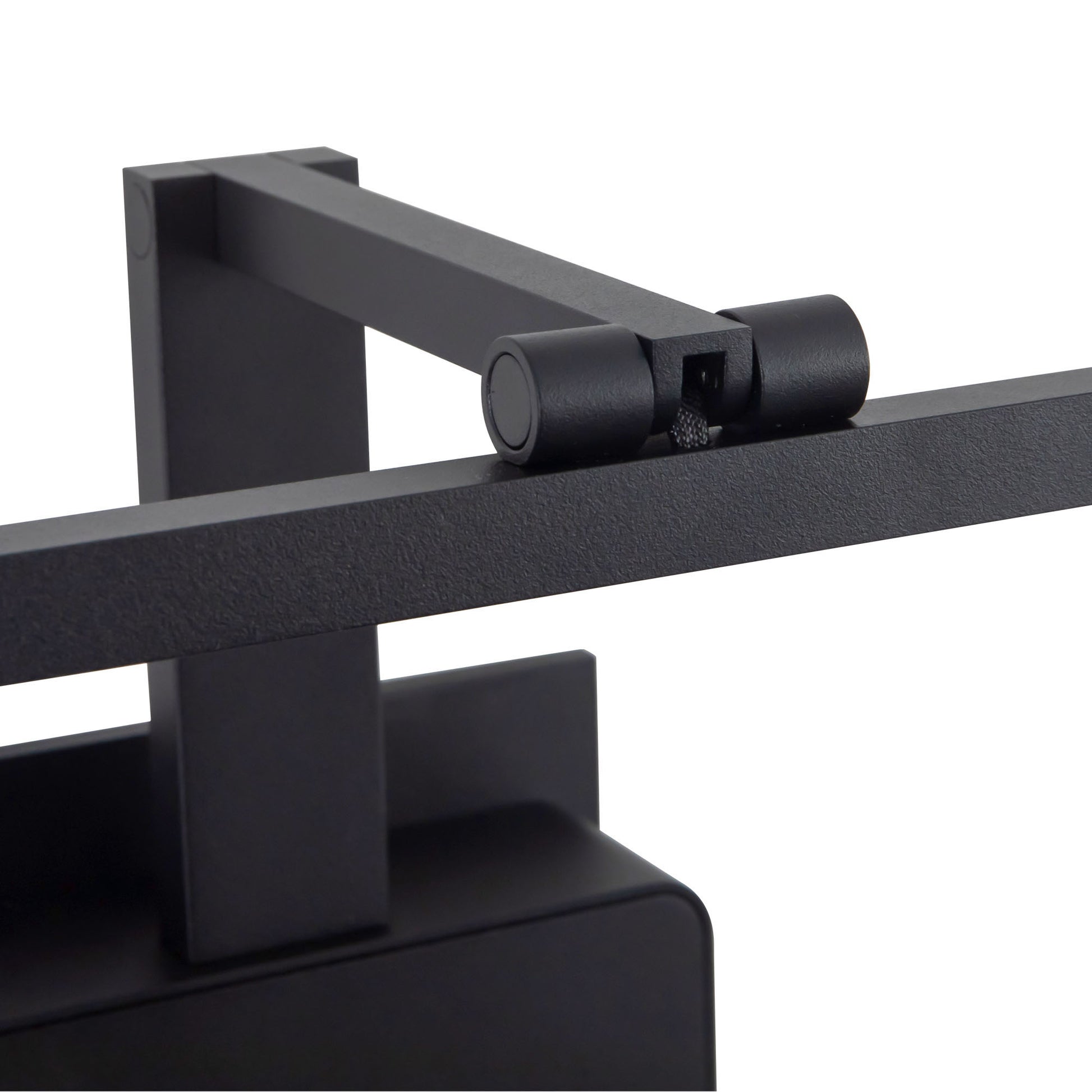

- Rotational down light
- Custom options available

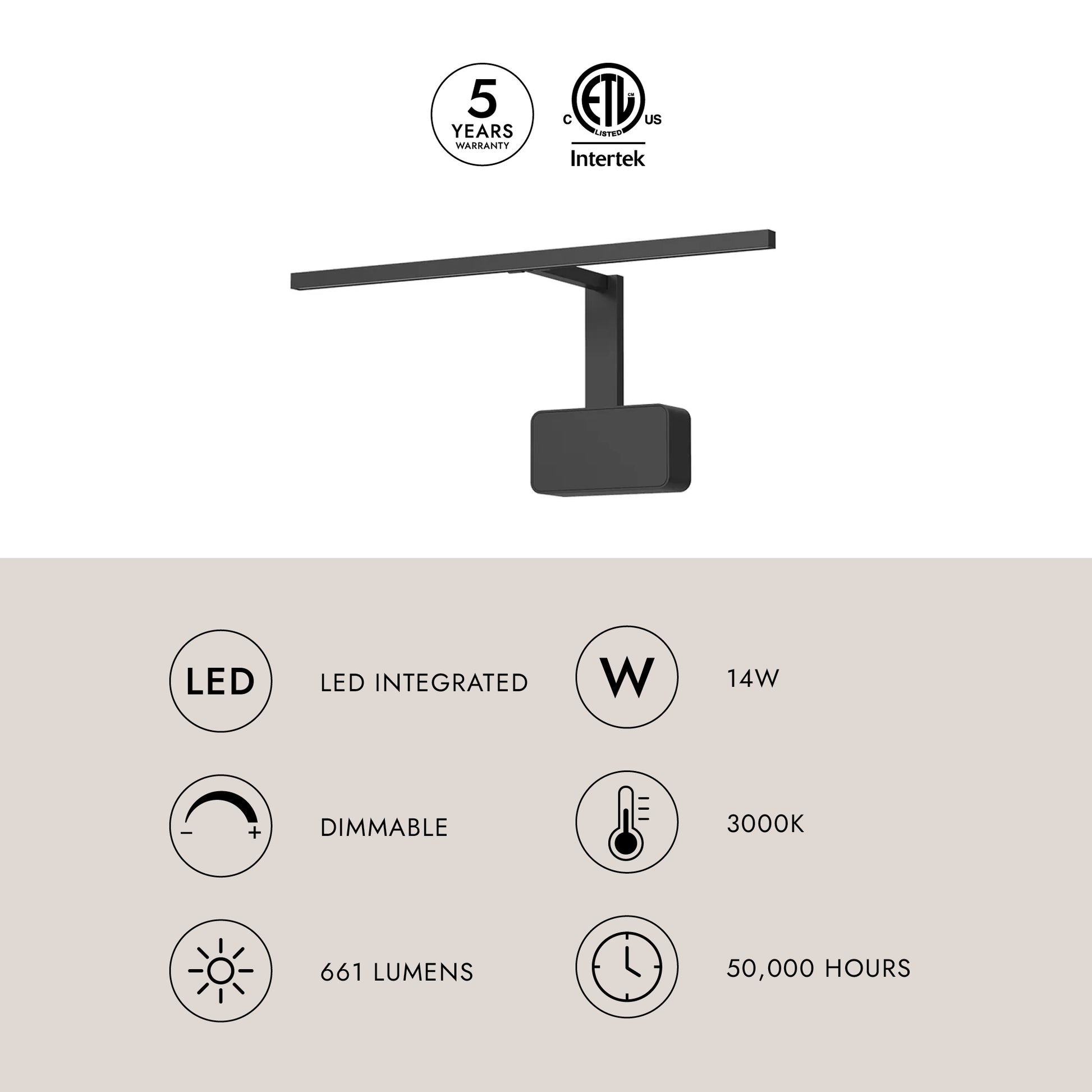

Specifications
Specifications
Family | Vega Minor Picture |
Color Temperature | 3000K |

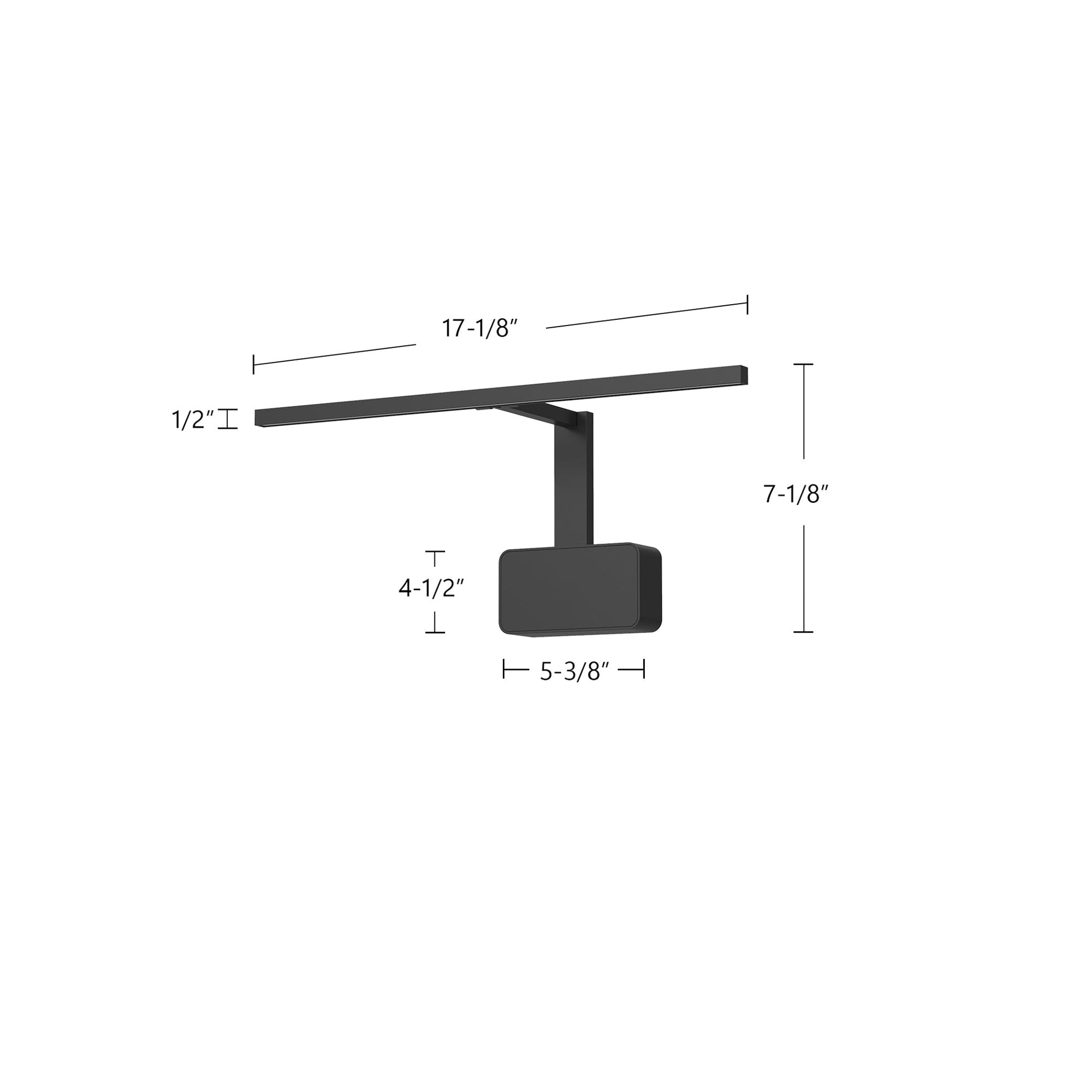

Fixture Dimensions | 17-1/8 W x 7-1/8 H x 6-7/8 E |
Primary Dimension | 17-in |
Canopy Dimensions | W5-3/8" x H4-1/2" x E1/4" |
Location Rating | Dry |
Wattage | 14W |
Dimming Range | 100% - 10% |
Dimming Type | TRIAC or ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 1190lm |
Fixture Delivered Lumens | BK-400lm*|BN-650lm* |
LED Life Span | 50,000 hours |
Fixture Input Voltage | 120V |
Illumination Direction | Downlight |
Mounting Style | All Orientation|Wall |
Diffuser Material | Frosted acrylic diffuser |
ETL Compliant | Yes |
Energy Star | Yes, Energy Star Compliant |
CEC Title 24 Ja8 | Yes, JA8-2022 |
Country Of Origin | CHINA |
Warranty | 5 Years |
