Vega Minor 3 Head Multi Pendant
Vega Minor 3 Head Multi Pendant
SKU:MP18203-BK-UNV
Following the success of the Vega family is the next evolution of the line, Vega Minor. The diminutive square linear profile envelops and radiates a soft uniform light in a diverse spectrum of lengths and unique configurations. Refined details with crafted finishes augment the reductive silhouette of the expanded collection.
Technical Description
Technical Description
- Square profile linear aluminum with thin cables
- Inset opal polymeric diffuser
- Finely textured plate or powder-coat finish
- Custom options available
Specifications
Specifications
Family | Vega Minor |
Color Temperature | 3000K |

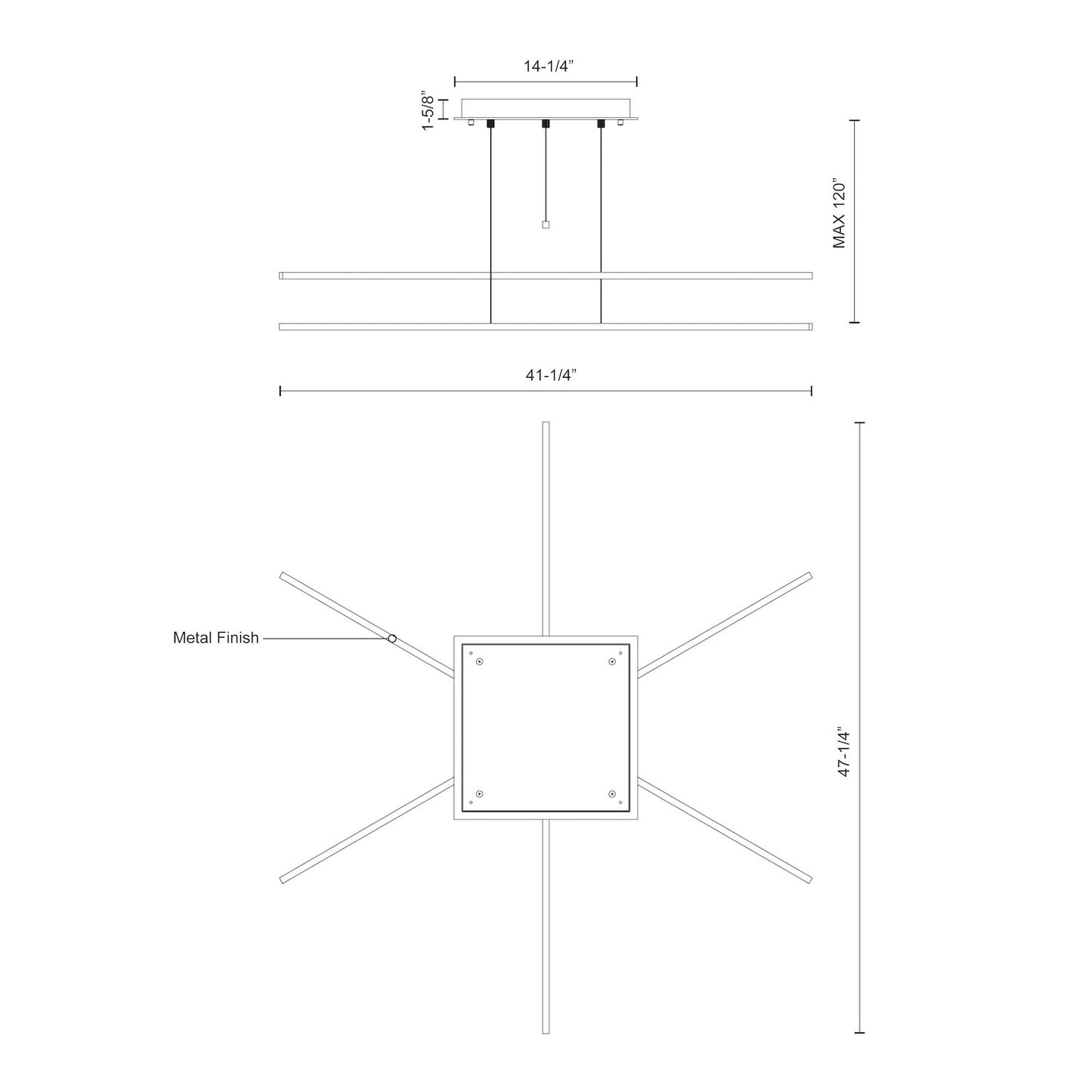

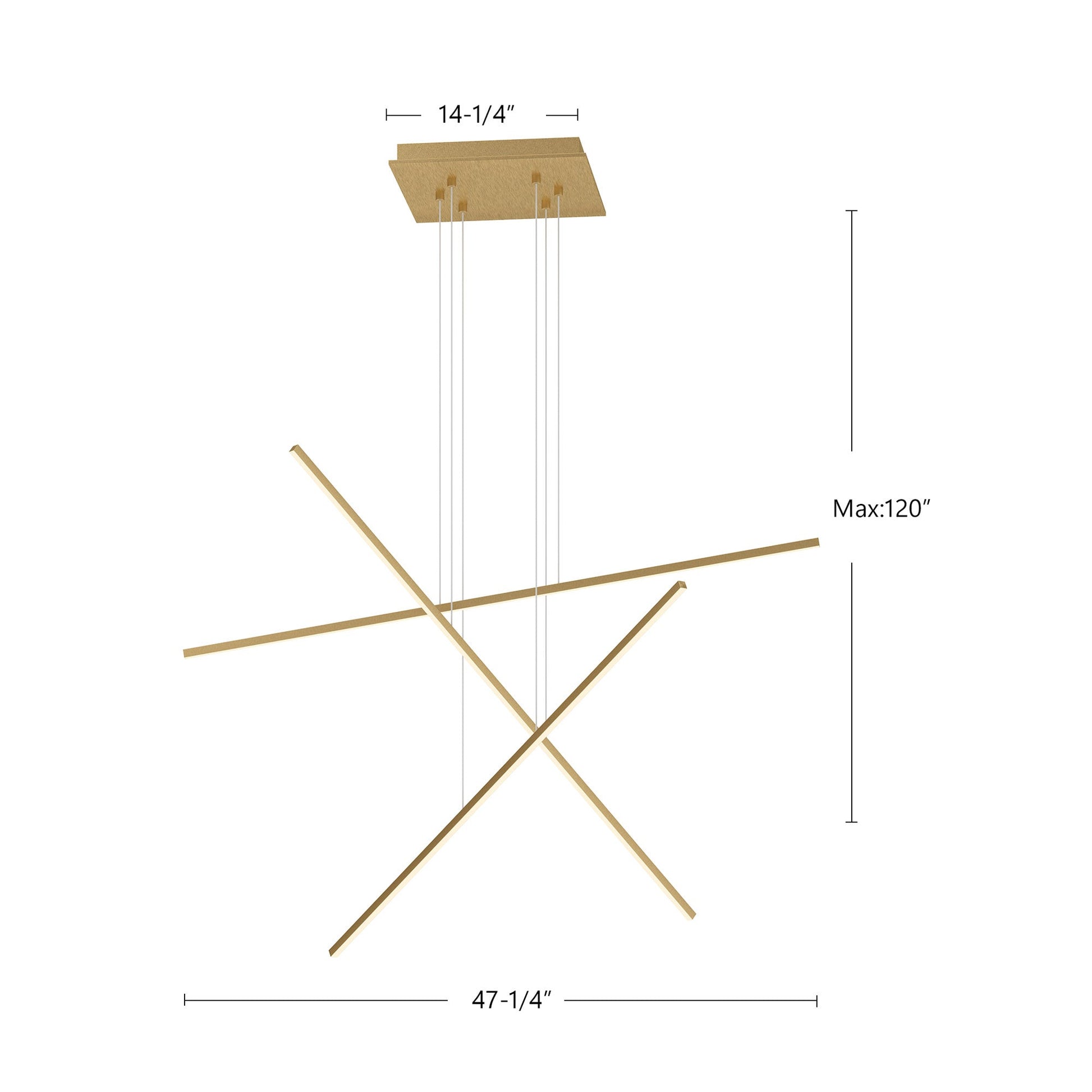

Fixture Dimensions | 41-1/4 L x 47-1/4 W x 1/2 H |
Primary Dimension | 3 Head |
Canopy Dimensions | L14-1/4" x W14-1/4" x H1-5/8" |
Location Rating | Dry |
Wattage | 69W |
Dimming Range | 100% - 10% |
Dimming Type | TRIAC or ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 6237lm |
Fixture Delivered Lumens | BK-2069lm|BN-3477lm|WH-4117lm |
LED Life Span | 50,000 hours |
External Wire Type | BG, BN - Clear Coaxial Wire|BK - Black Coaxial Wire|WH - White Coaxial Wire |
External Wire Length | 120" |
Fixture Input Voltage | 120V |
Illumination Direction | Downlight |
Sloped Ceiling Adaptable | Yes |
Hanging Method | Wire |
Adjustable | Yes |
Diffuser Material | White Acrylic Diffuser |
ETL Compliant | Yes |
CEC Title 24 Ja8 | Yes, JA8-2022 |
Country Of Origin | CHINA |
Warranty | 5 Years |
* All Universal Voltage products allow for 120-277V input voltages
