Vega Minor 48-in Vanity Light
Vega Minor 48-in Vanity Light
SKU:VL18248-BG
Square profile linear aluminum with rectangular
wall mount
Optional adapter plate for larger junction box
Inset opal polymeric diffuser
Finely textured plate or powder-coat finish
Down light
Technical Description
Technical Description
- Square profile linear aluminum with rectangular wall mount
- Optional adapter plate for larger junction box
- Inset opal polymeric diffuser
- Finely textured plate or powder-coat finish
- Custom options available
Specifications
Specifications
Family | Vega Minor |
Color Temperature | 3000K |

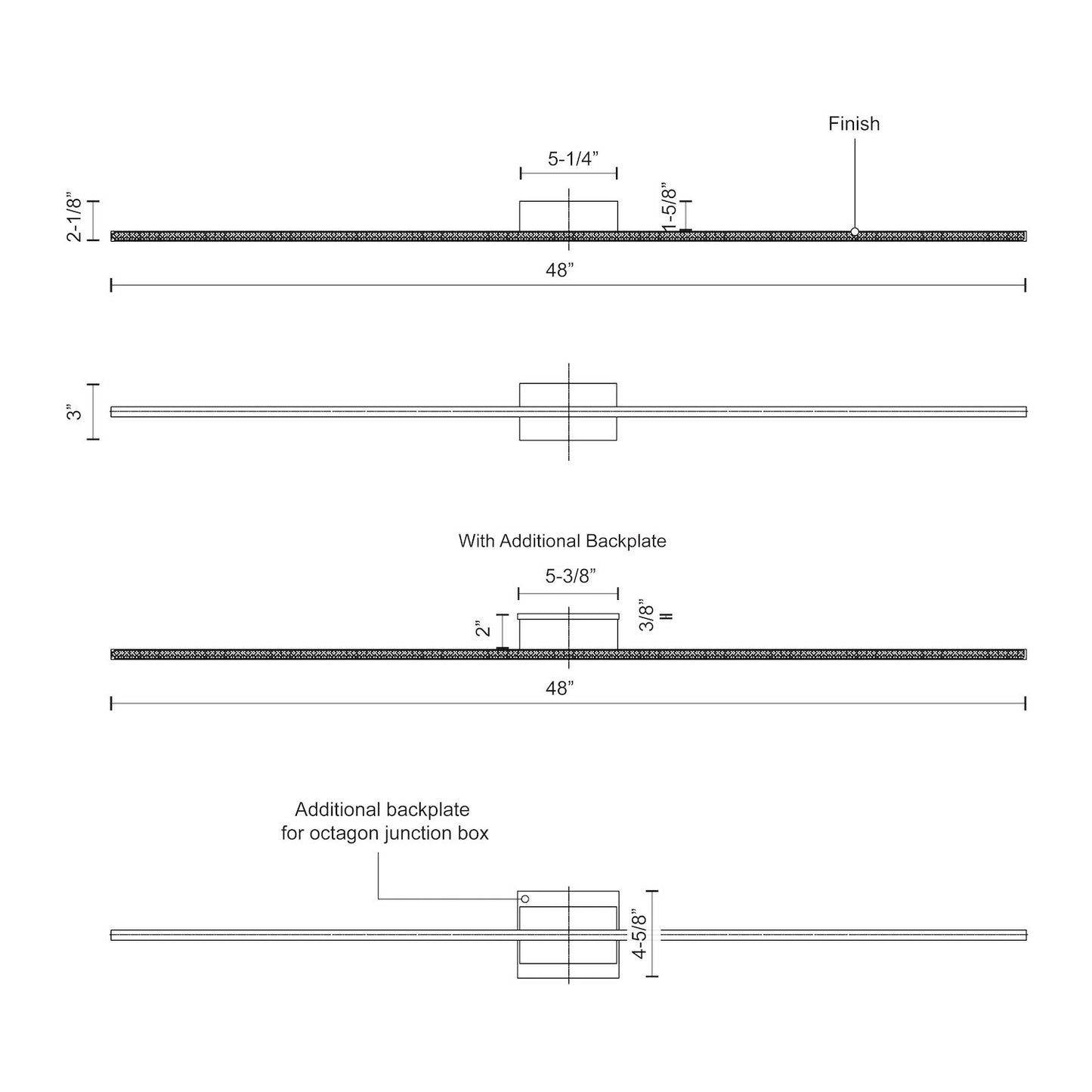

Fixture Dimensions | 48 W x 3 H x 2-1/8 E |
Primary Dimension | 48-in |
Canopy Dimensions | W5-3/8" x H4-5/8" x E3/8" |
Location Rating | Damp |
Wattage | 44W |
Dimming Range | 100% - 10% |
Dimming Type | TRIAC or ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 3690lm |
Fixture Delivered Lumens | BK-1268lm|BN-2132lm|WH-2524lm |
LED Life Span | 50,000 hours |
Fixture Input Voltage | 120V |
Illumination Direction | Downlight |
Mounting Style | All Orientation|Wall |
Diffuser Material | White Acrylic Diffuser |
ETL Compliant | Yes |
ADA Compliant | Yes |
CEC Title 24 Ja8 | Yes, JA8-2022 |
Country Of Origin | CHINA |
Warranty | 5 Years |
