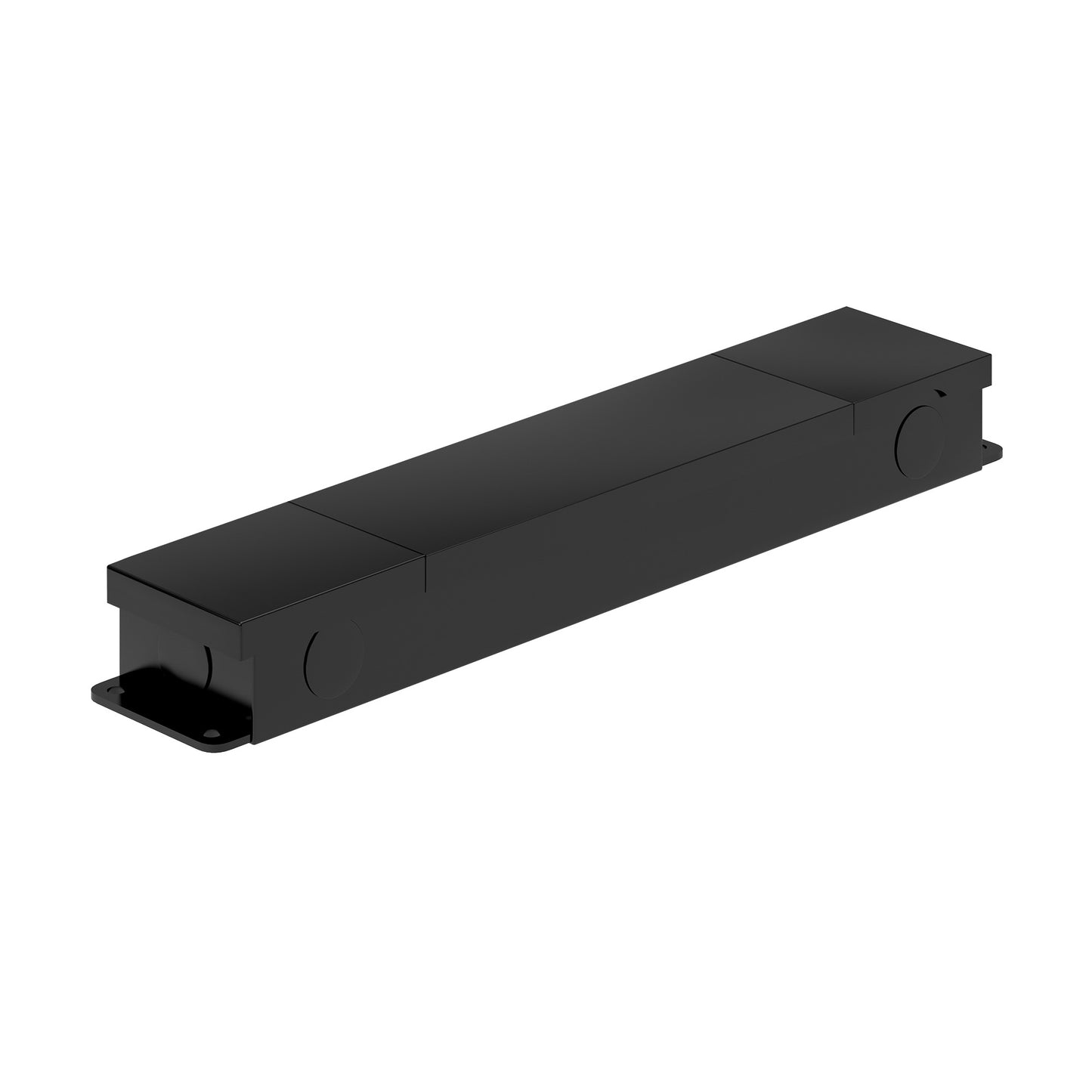

Trilo Track 12-in Trilo Track Remote Driver

Trilo Track 12-in Trilo Track Remote Driver

TRR989096-BK-UNV-010
The Trilo remote driver power options include a fully enclosed 48V class 2 driver with compatible dimming (see specifications). The remote driver includes end feed with field cuttable 96-in wire and conduit. Must be installed at end of the Trilo track system.
  • or equivalent bulb required, not included
  • Designed for hallway, entryway, kitchen, and beyond
  • Modern, Contemporary Style with Decorative Details
  • Installation hardware included
  • Easy assembly instructions included in box
  • Dimmable, see specs for detail
Where to Buy

Technical Description

Specifications


Primary Dimension 12-in
Fixture Dimensions L3-3/8" x W1-1/8" x H5/8"
Location Rating Dry
Wattage 96W
Dimming Range 100-10%
Dimming Type TRIAC/ELV Dimmer (Optional, Not Included) or 0-10V Dimmer (Optional, Not Included)
Wire Length 96"
Fixture Input Voltage 120-277V
Hanging Method Wire
Material Aluminum + Steel
ETL Compliant Yes
Country Of Origin CHINA

* All Universal Voltage and 0-10 Dimming products allow for 120-277V input voltages. All 0-10 Dimming (Dimmer not included) products allow for 0-10 volt dimming.

* Please review delivered lumens for most accurate lumen output

* Please visit Our Warranty Page for specific warranty details and limitations.
