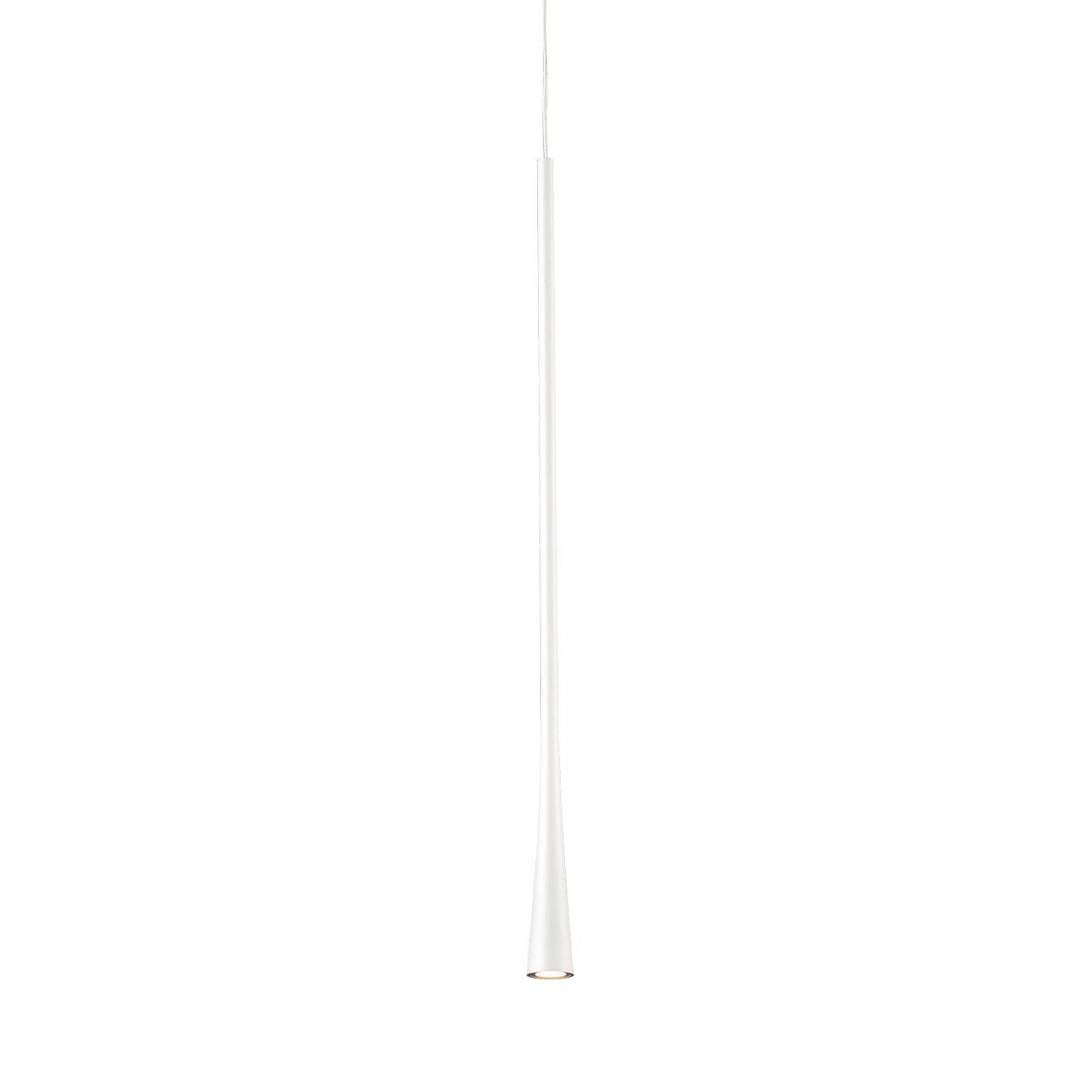

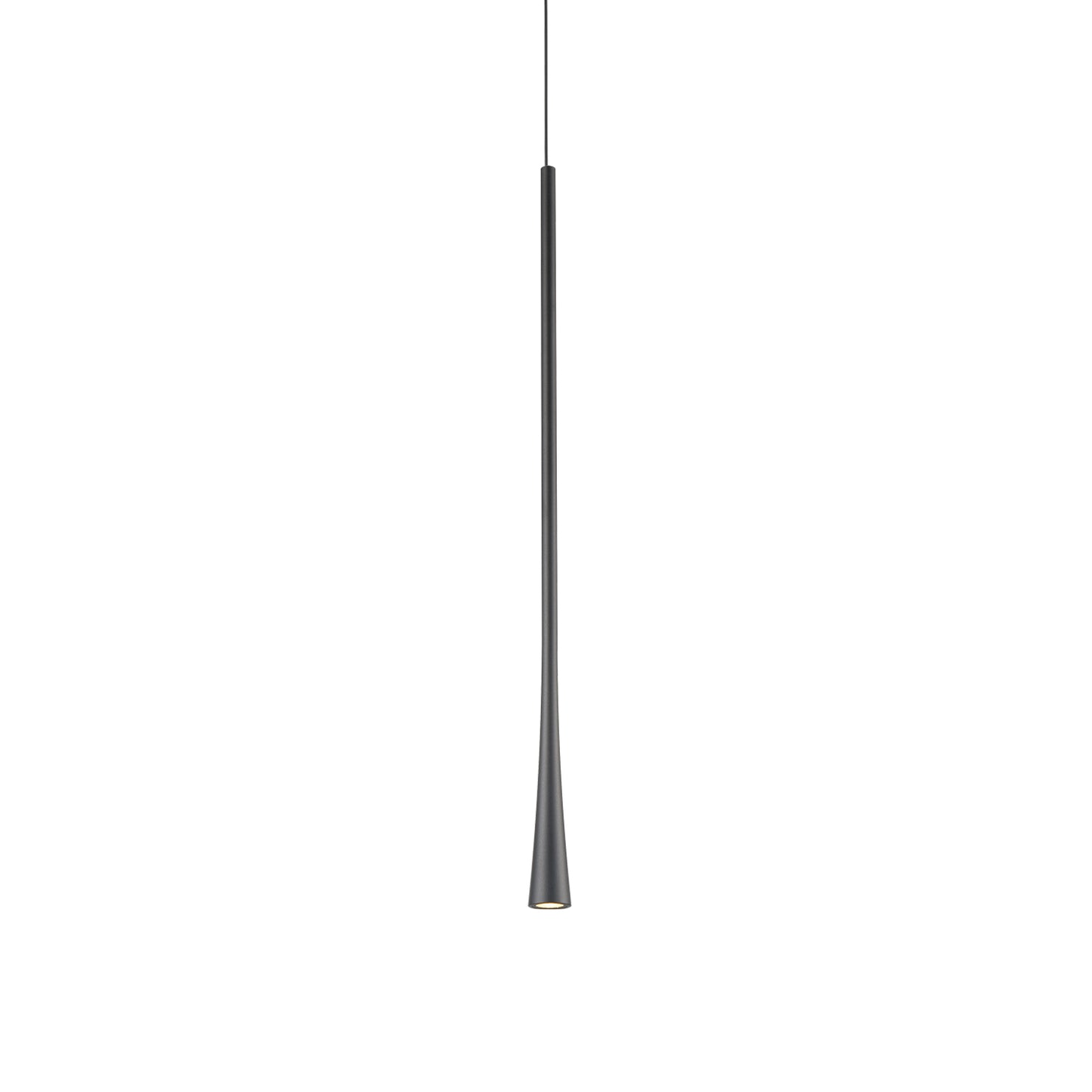

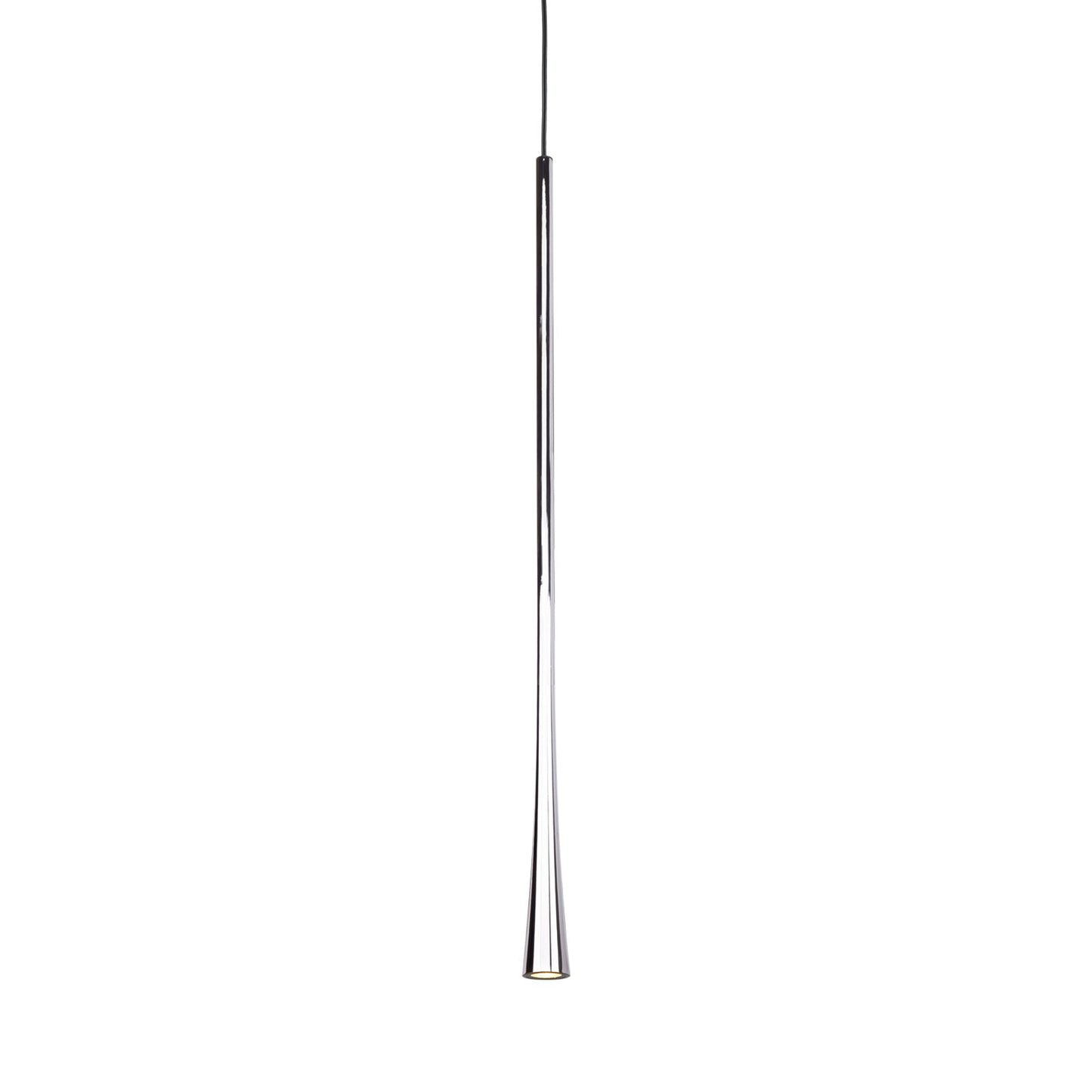

Taper 24-in Pendant
Taper 24-in Pendant
SKU:PD15824-BK

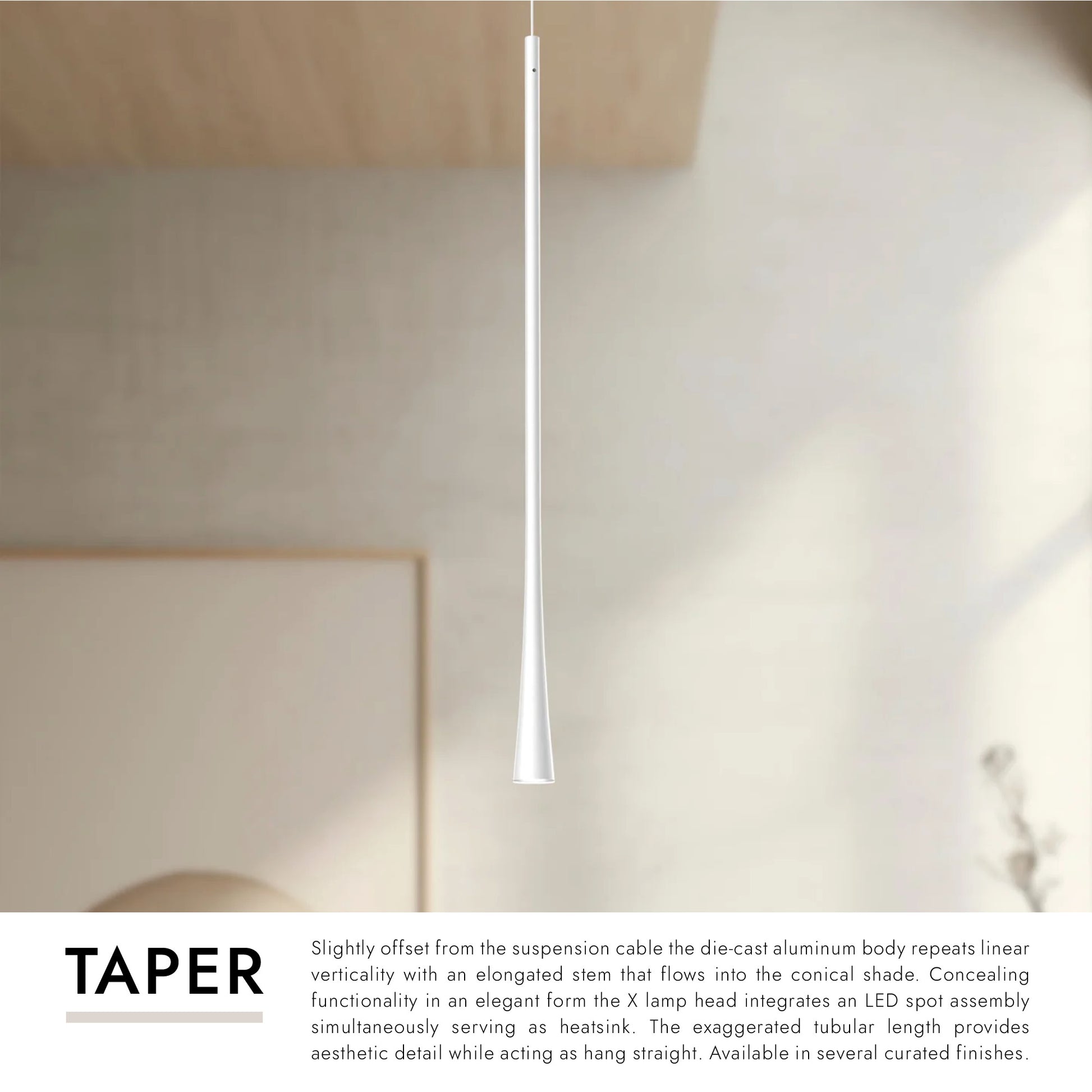

Slightly offset from the suspension cable the die-cast aluminum body repeats linear verticality with an elongated stem that flows into the conical shade. Concealing functionality in an elegant form the X lamp head integrates an LED spot assembly simultaneously serving as heatsink. The exaggerated tubular length provides aesthetic detail while acting as hang straight. Available in several curated finishes.
Technical Description
Technical Description
- Die-cast conical aluminum lamp head with continuous long stem
- Powder-coat or plated finish
- Inset optical spot reflector
- Custom options available
Specifications
Specifications

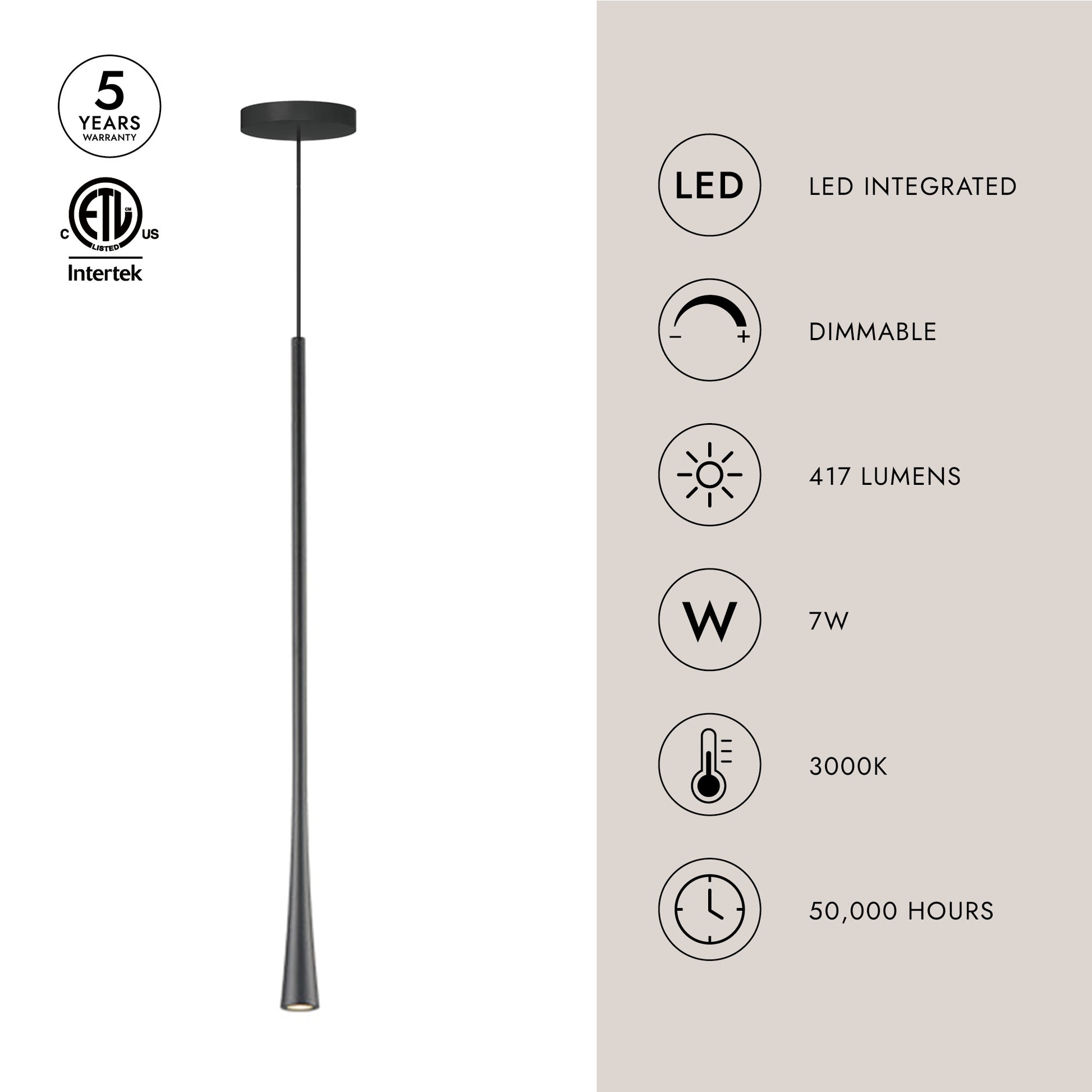

Family | Taper |
Color Temperature | 3000K |

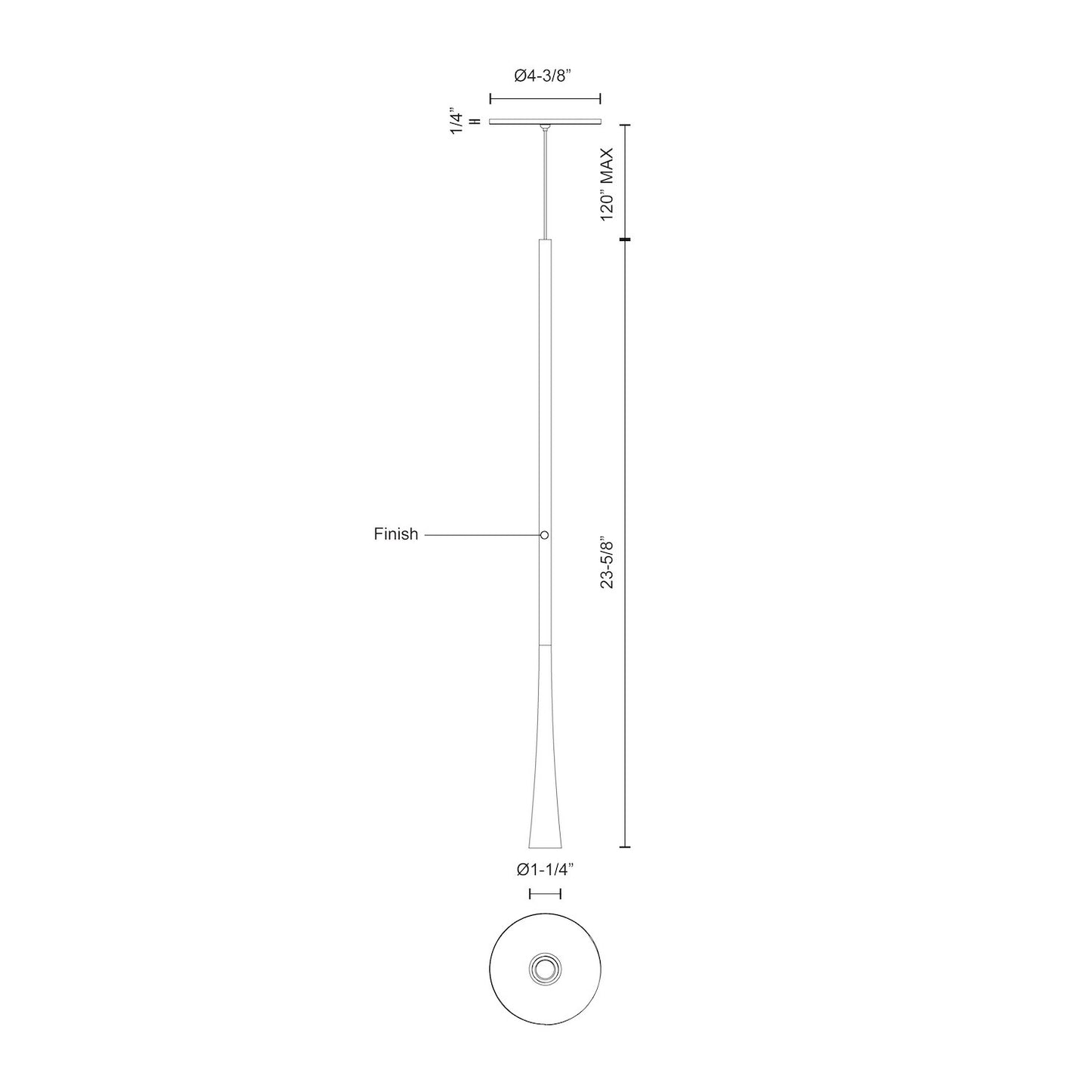

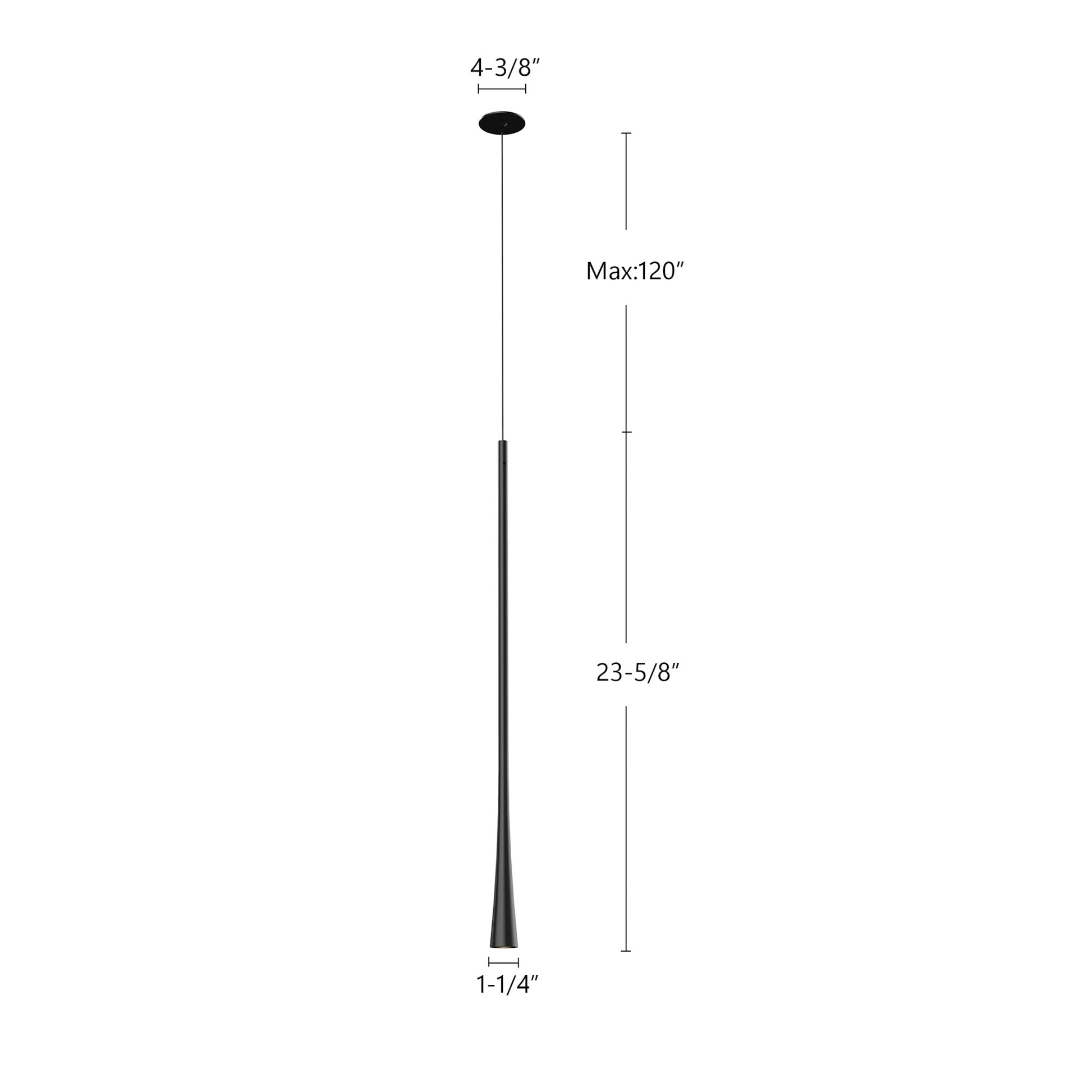

Fixture Dimensions | 23-5/8 H x 1-1/4 D |
Primary Dimension | 24-in |
Canopy Dimensions | D4-3/8" x H1/4" |
Location Rating | Dry |
Wattage | 7W |
Dimming Range | 100% - 10% |
Dimming Type | TRIAC or ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 510lm |
Fixture Delivered Lumens | BK-417lm|CH-434lm|WH-440lm |
LED Life Span | 50,000 hours |
External Wire Type | BK, CH - Black Coaxial Wire|WH - White Coaxial Wire |
External Wire Length | 120" |
Fixture Input Voltage | 120V |
Illumination Direction | Downlight |
Sloped Ceiling Adaptable | Yes |
Hanging Method | Wire |
Adjustable | Yes |
Diffuser Material | Acrylic Lens |
ETL Compliant | Yes |
CEC Title 24 Ja8 | Yes, JA8-2022 |
Country Of Origin | CHINA |
Warranty | 5 Years |
