Newport 10-in Exterior Wall/Step Light
Newport 10-in Exterior Wall/Step Light
SKU:ER72410-BK

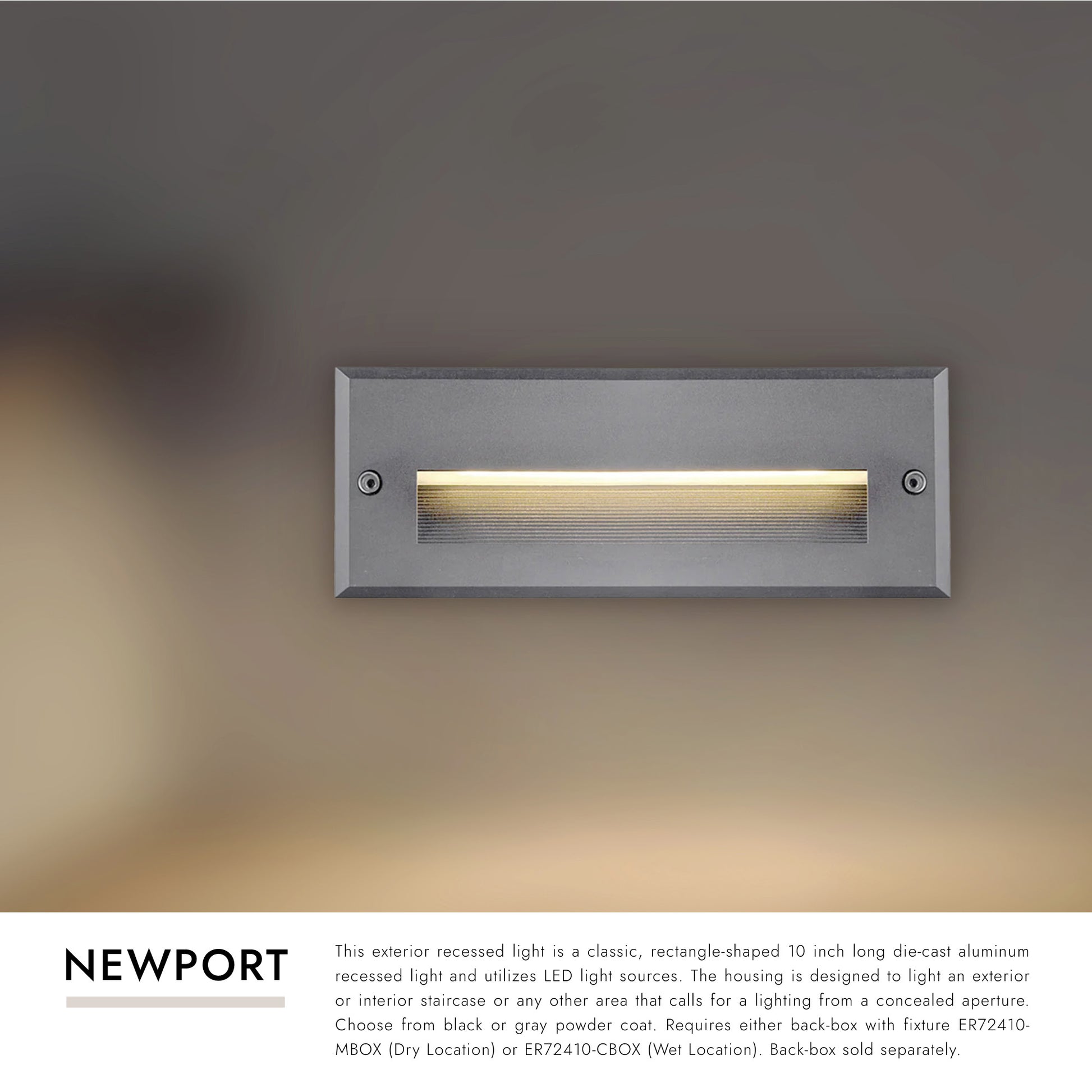

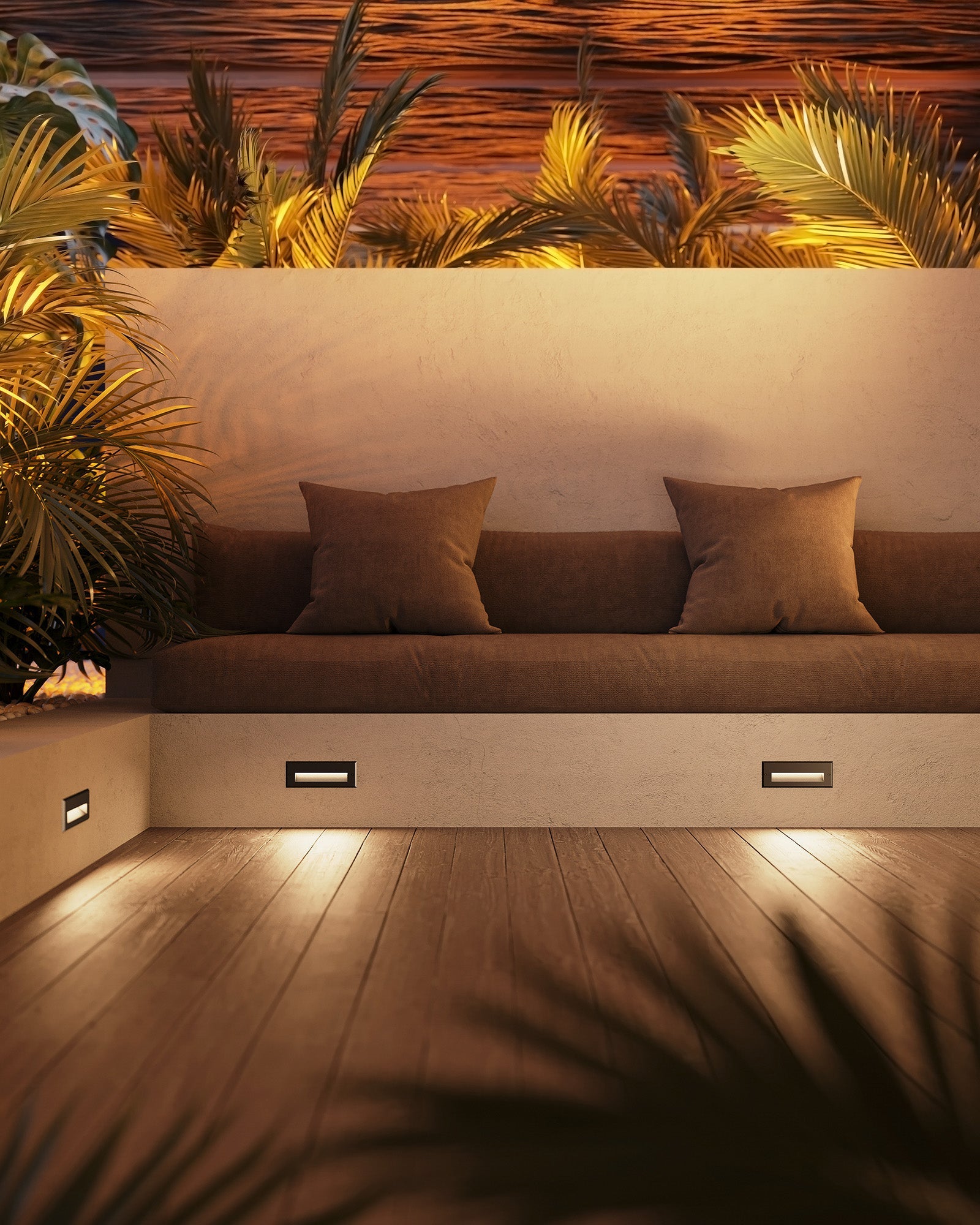

This exterior recessed light is a classic, rectangle-shaped 10 inch long die-cast aluminum recessed light and utilizes LED light sources. The housing is designed to light an exterior or interior staircase or any other area that calls for a lighting from a concealed aperture. Choose from black or gray powder coat. Requires either back-box with fixture ER72410- MBOX (Dry Location) or ER72410-CBOX (Wet Location). Back-box sold separately.
Technical Description
Technical Description

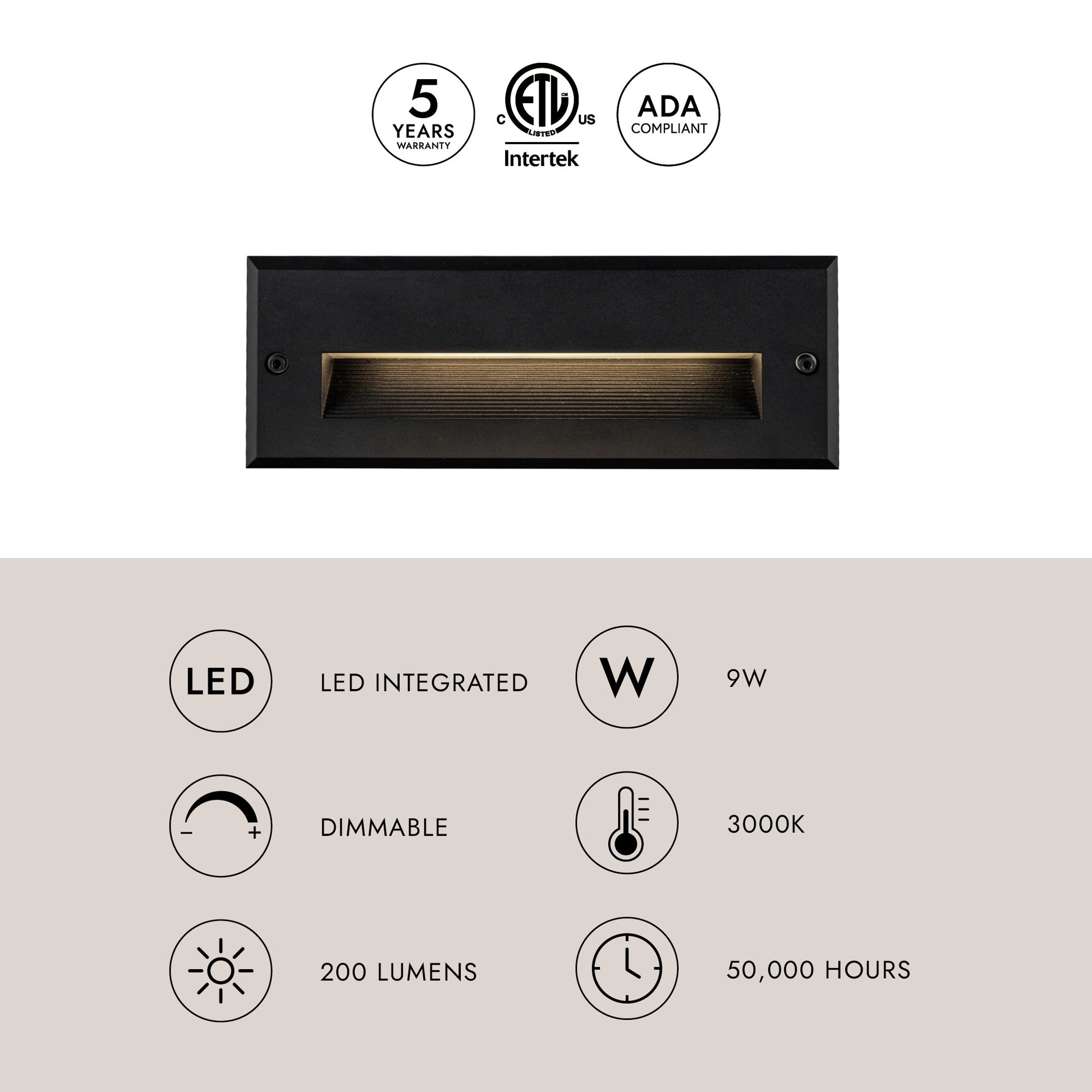

- Die-cast aluminum with powder-coated finish and polymeric lens
- Interior wiring galvanized back-box or die-cast concrete poured box sold separately
- Wet listed with die-cast concrete box
- Custom options available
Specifications
Specifications
Family | Newport |
Color Temperature | 3000K |

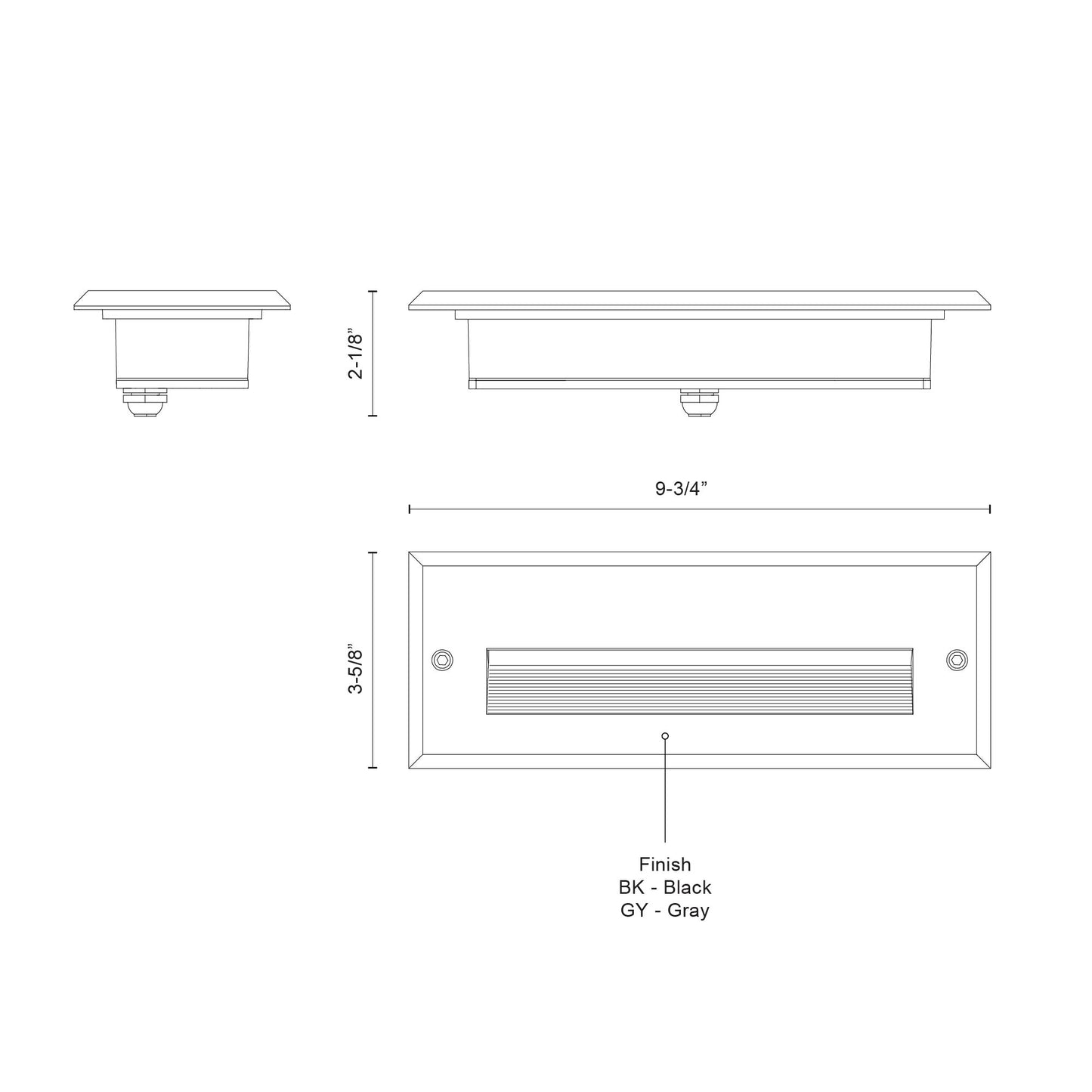

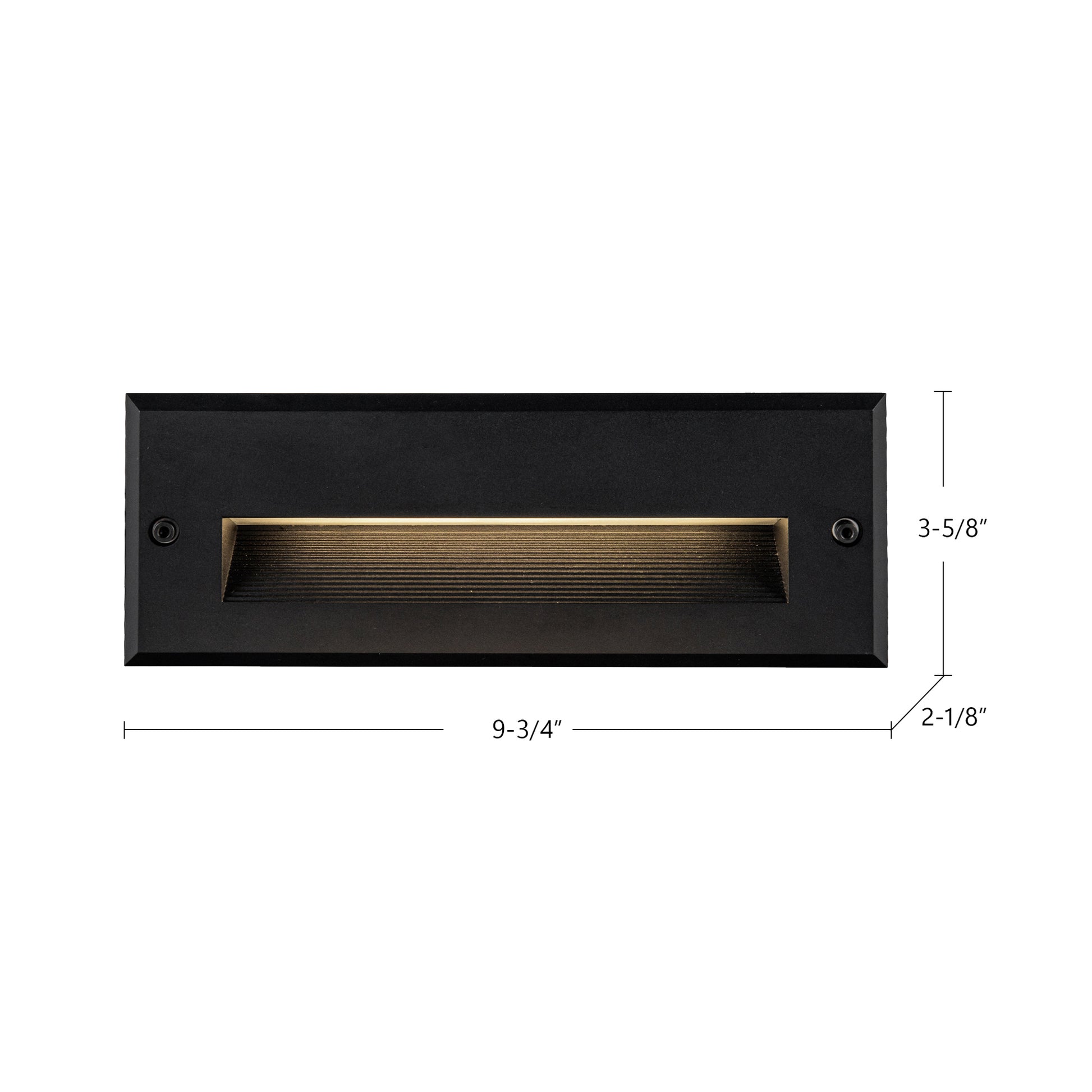

Fixture Dimensions | 9-3/4 W x 3-5/8 H x 2-1/8 E |
Primary Dimension | 10-in |
Location Rating | Wet |
Wattage | 9W |
Dimming Range | 100-10% (ELV) |
Dimming Type | ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 600lm |
LED Life Span | 50,000 hours |
Fixture Input Voltage | 120V |
Illumination Direction | Down |
Mounting Style | Wall Mount Down Only |
Material | Aluminum |
Diffuser Material | Frosted Glass Diffuser |
ETL Compliant | Yes |
ADA Compliant | Yes |
Country Of Origin | CHINA |
Warranty | https://kuzcolighting.com/warranty/ |
![Newport 10-in Exterior Wall/Step Light](http://kuzcolighting.com/cdn/shop/files/NEWPORT_ER72410-BK.jpg?v=1724961254&width=1445)
![Newport 10-in Exterior Wall/Step Light](http://kuzcolighting.com/cdn/shop/files/ER72410-DRAWING.jpg?v=1724961253&width=1445)
![Newport 10-in Exterior Wall/Step Light](http://kuzcolighting.com/cdn/shop/files/NEWPORT_ER72410-GY.jpg?v=1724961254&width=1445)
