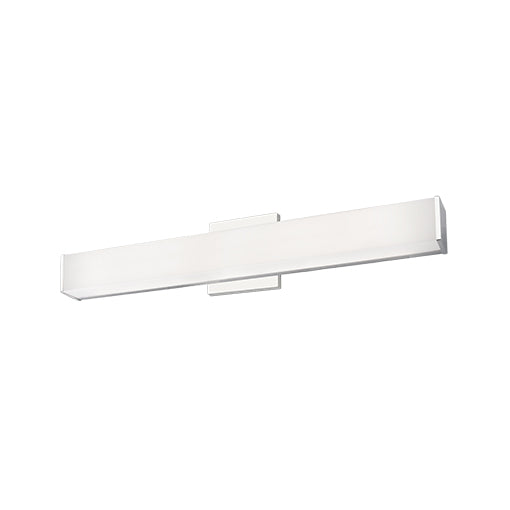

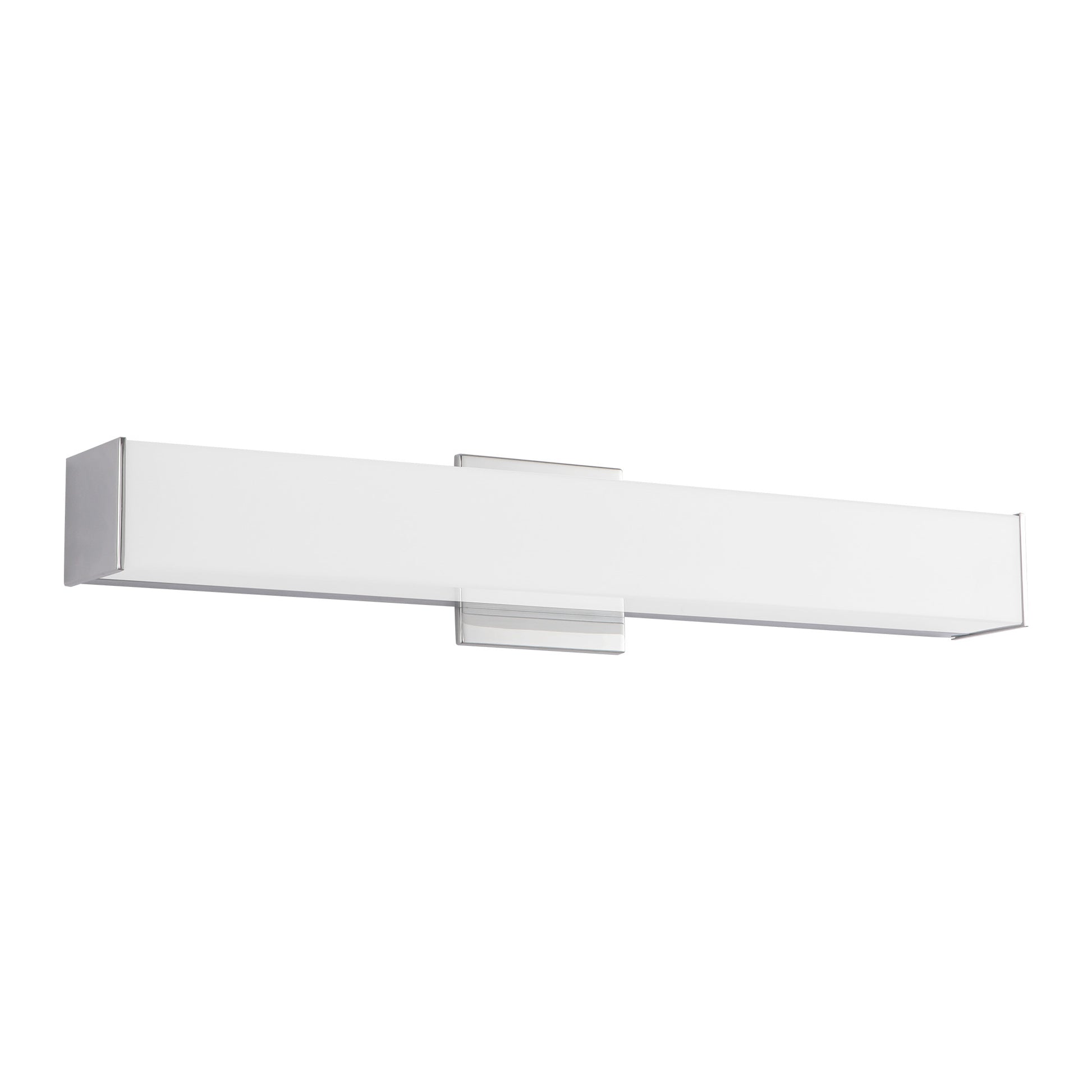

Jane 24-in Vanity Light
Jane 24-in Vanity Light
SKU:VL62224-BK

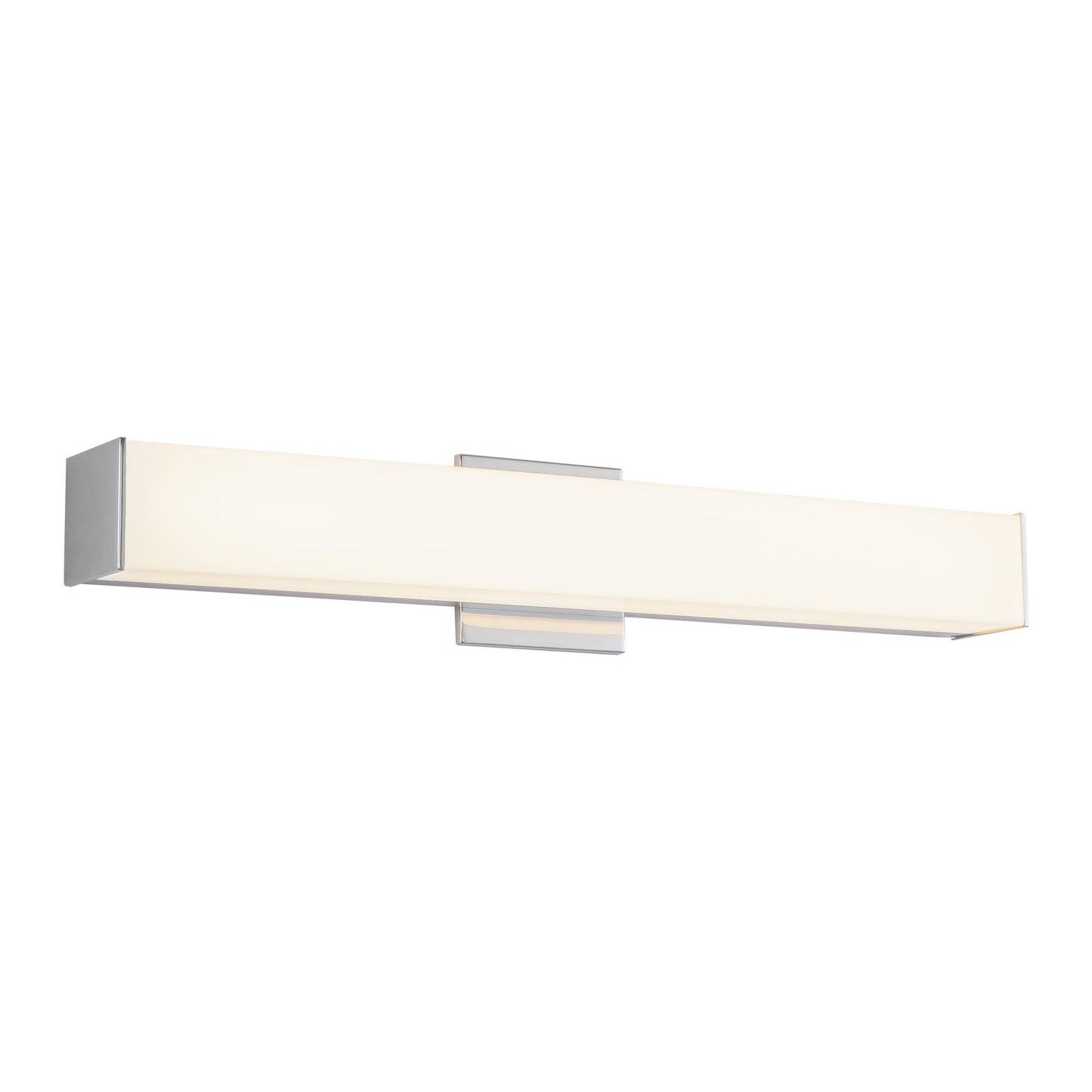

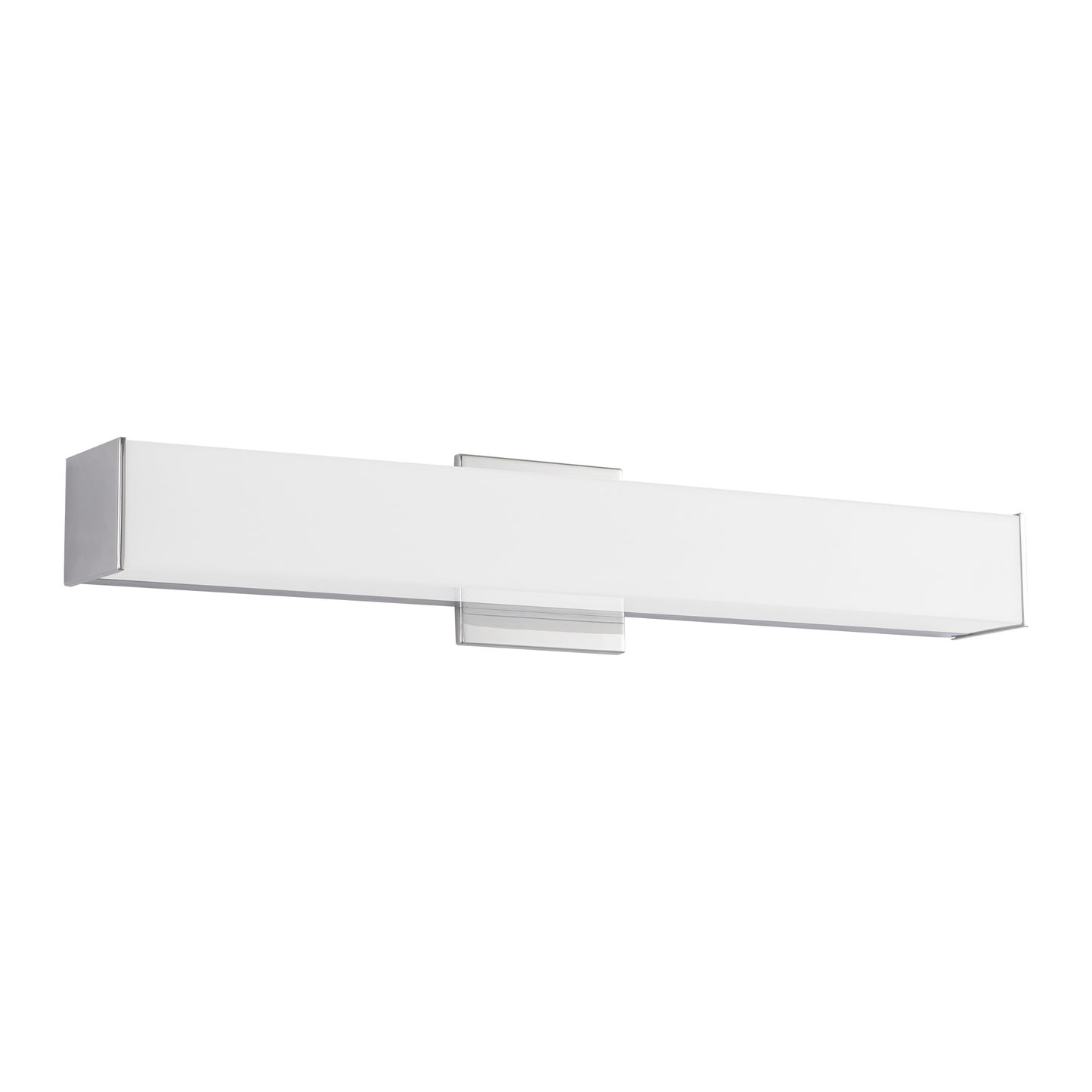

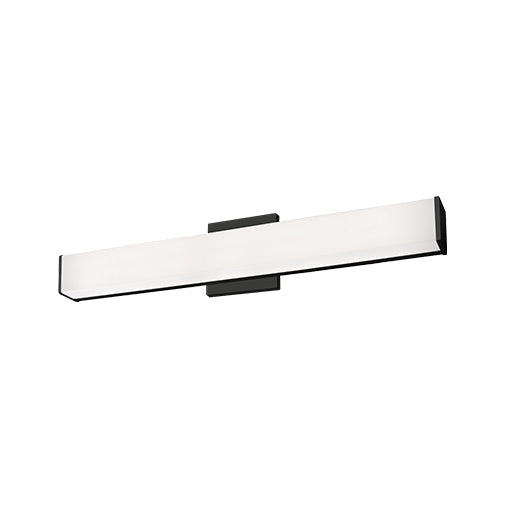

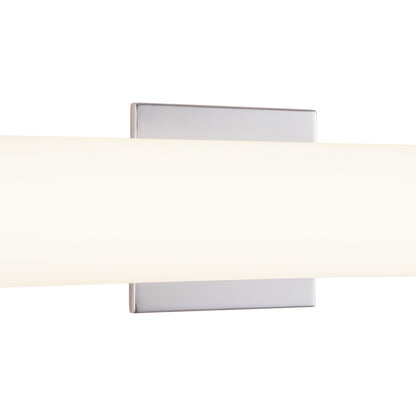

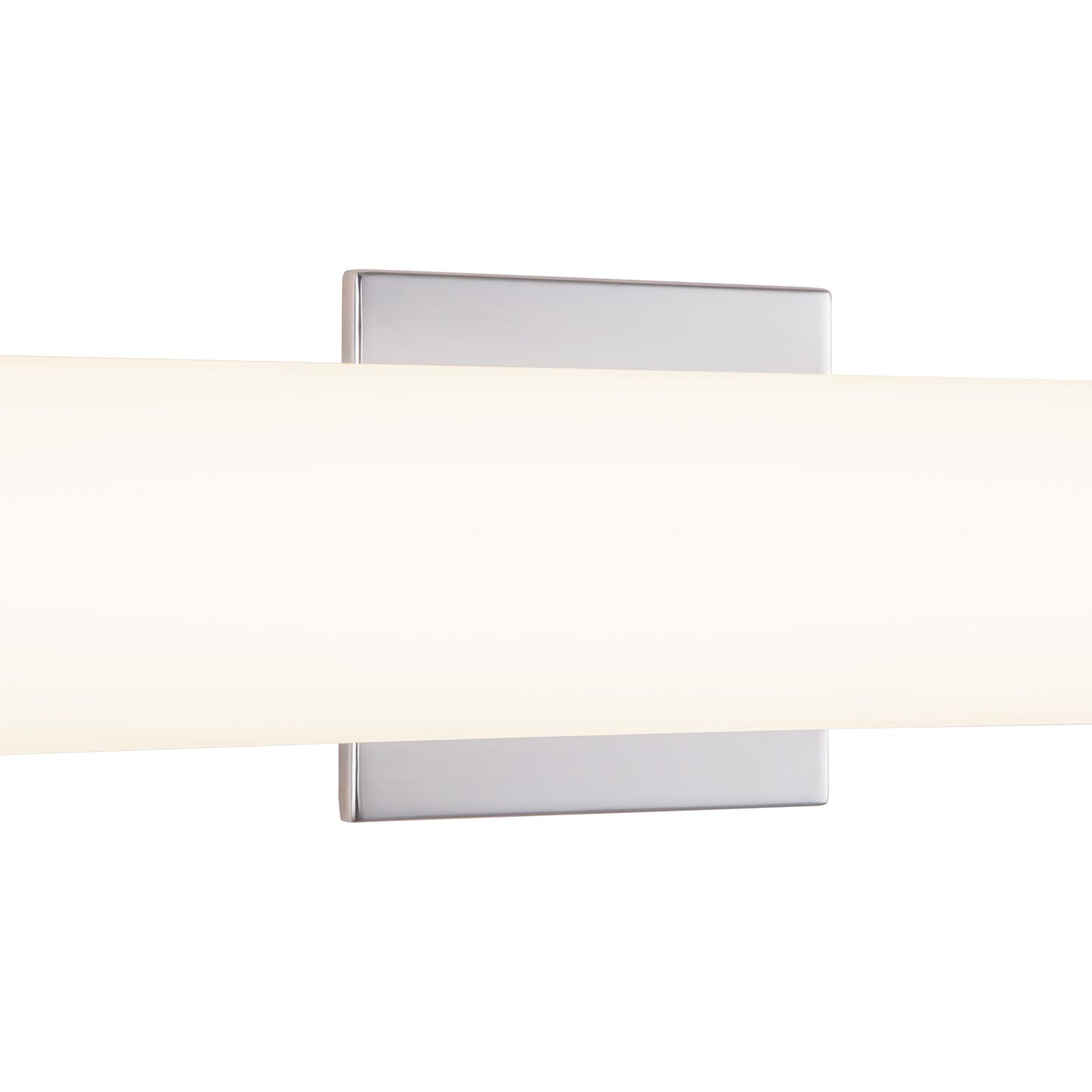

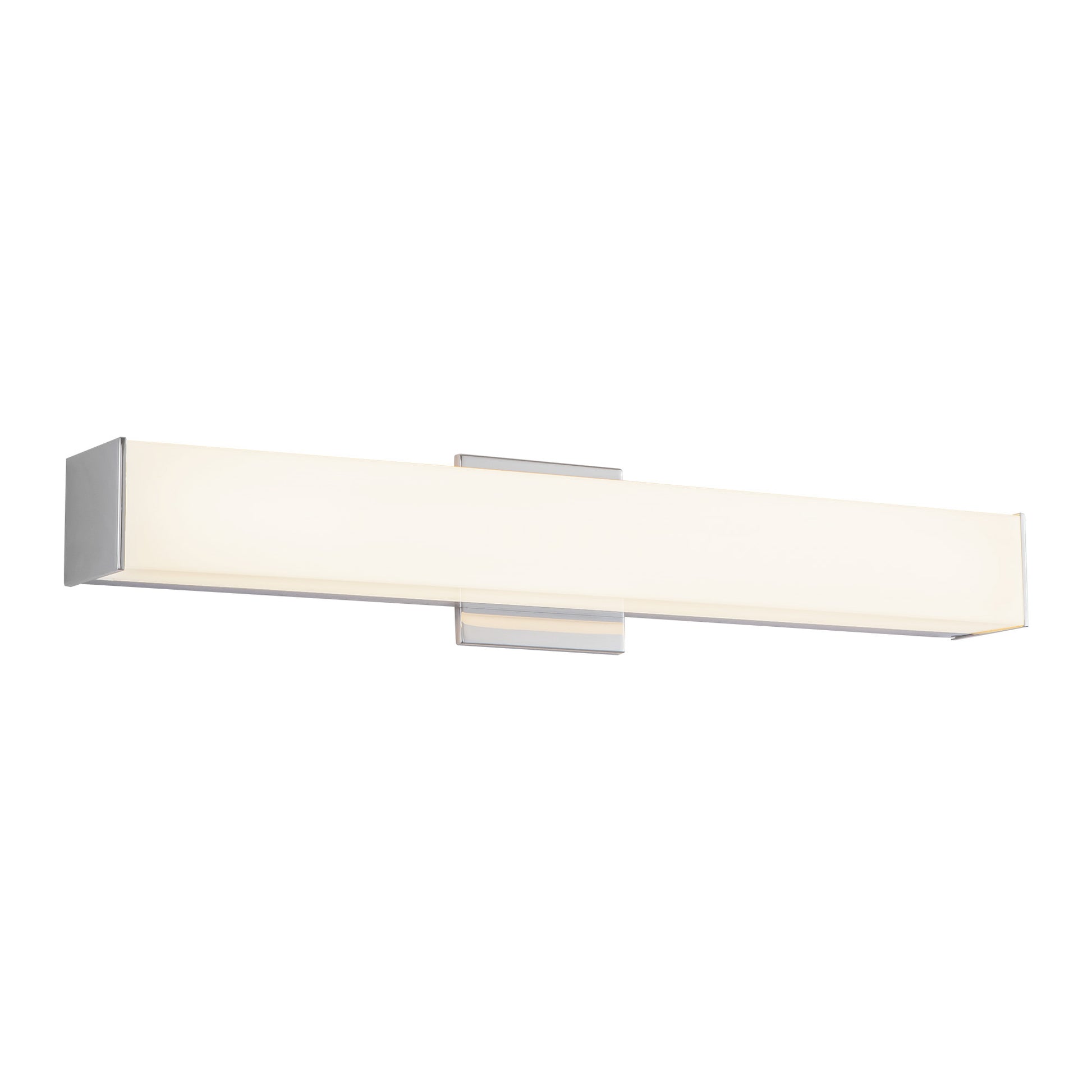

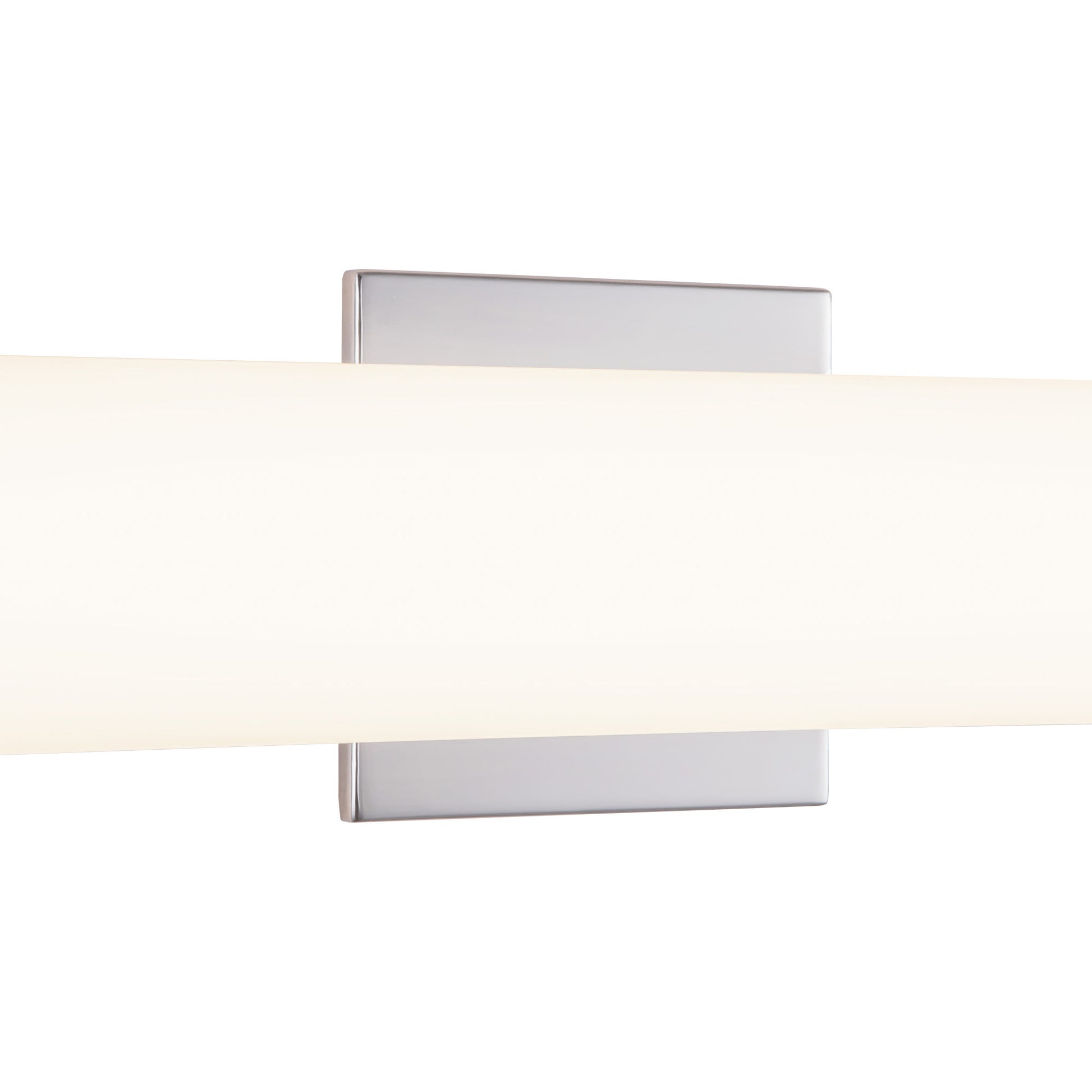

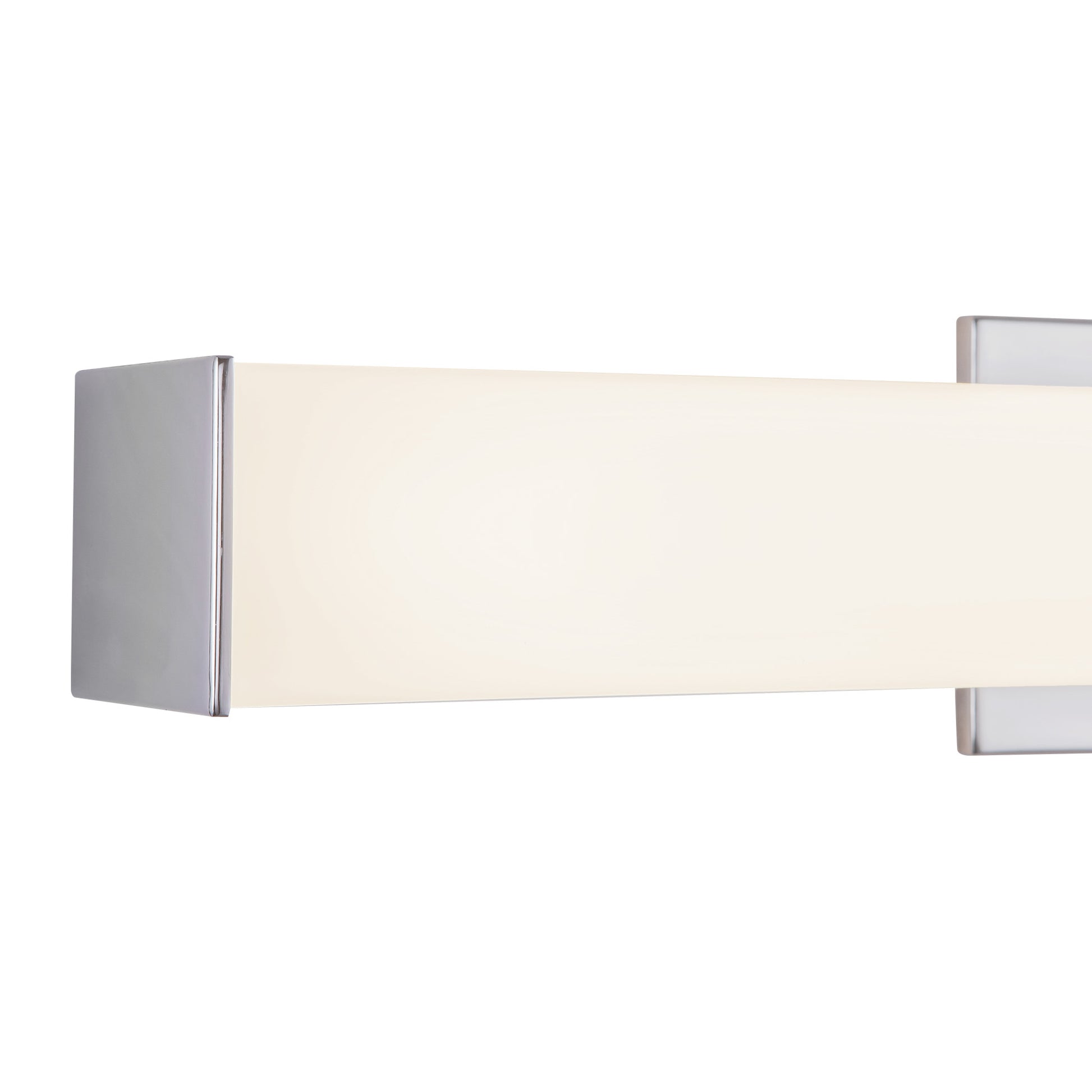

An extruded square diffuser surrounds the LED source of the geometric vanity fixture and gently spreads light. Enclosed at the ends by two thick caps the design is characterized by minimal details and clever features. During installation the lamp assembly may slide on the mounting track to allow for ideal positioning. Adding to the versatile function are the multiple fixture lengths and mounting orientations. Optional installation without backplate for smaller junction boxes.
Technical Description
Technical Description
- Rectangular white acrylic diffuser with electroplated formed steel detail
- Custom options available
Specifications
Specifications
Family | Jane |
Color Temperature | 3000K |

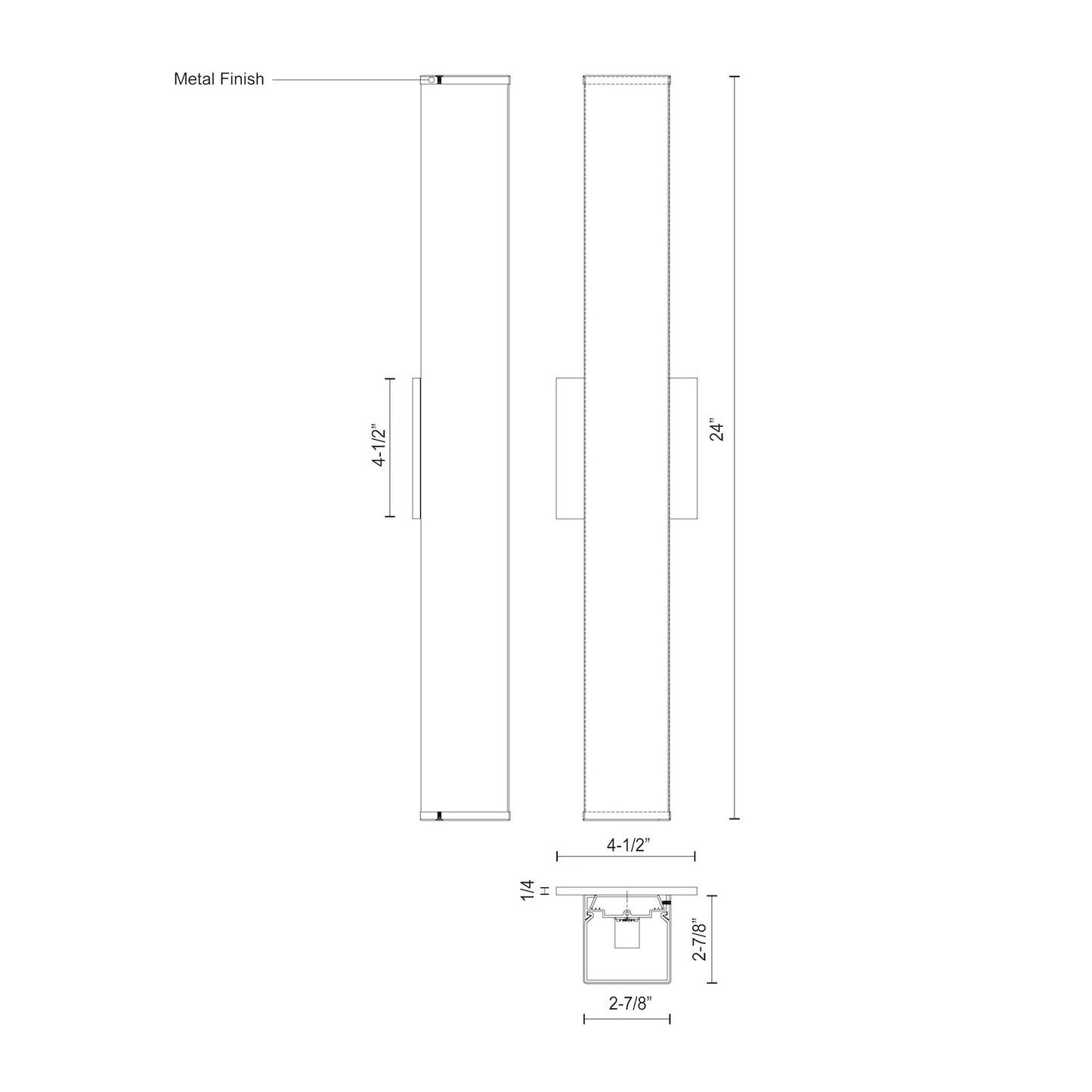

Fixture Dimensions | 24 W x 2-7/8 H x 2-7/8 E |
Primary Dimension | 24-in |
Canopy Dimensions | W4-1/2" x H4-1/2" x E1/4" |
Location Rating | Damp |
Wattage | 31W |
Dimming Range | 100% - 10% |
Dimming Type | ELV Dimmer (Not Included) |
CRI | 90CRI |
LED Total Lumens | 2400lm |
Fixture Delivered Lumens | BK-1918lm|CH-1987lm |
LED Life Span | 50,000 hours |
Fixture Input Voltage | 120V |
Illumination Direction | Omni-directional |
Mounting Style | All Orientation|Wall |
Diffuser Material | White Acrylic Diffuser |
ETL Compliant | Yes |
Energy Star | Yes, Energy Star Compliant |
ADA Compliant | Yes |
CEC Title 24 Ja8 | Yes, JA8-2022 |
Country Of Origin | CHINA |
Warranty | 5 Years |
![Jane 24-in Vanity Light](http://kuzcolighting.com/cdn/shop/files/JANE_VL62224-BK.jpg?v=1724960739&width=1445)
![Jane 24-in Vanity Light](http://kuzcolighting.com/cdn/shop/files/VL62224-BK.jpg?v=1724960739&width=1445)
![Jane 24-in Vanity Light](http://kuzcolighting.com/cdn/shop/files/JANE_VL62224_DRAWING_DIMS.jpg?v=1724960739&width=1445)
![Jane 24-in Vanity Light](http://kuzcolighting.com/cdn/shop/files/JANE_VL62224-CH.jpg?v=1724960739&width=1445)
![Jane 24-in Vanity Light](http://kuzcolighting.com/cdn/shop/files/VL62224-CH.jpg?v=1724960739&width=1445)
MORE IN THIS COLLECTION
-
Jane 20-in Vanity Light
VL62220Sold outSold out -
Jane 24-in Vanity Light
VL62224Sold outSold out -
Jane 36-in Vanity Light
VL62236Sold outSold out -

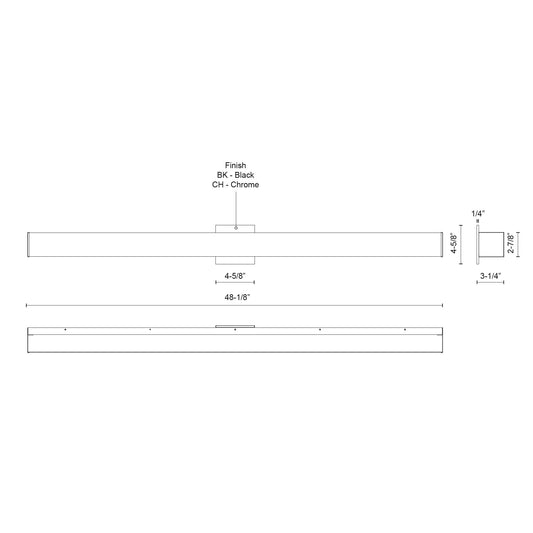

Jane 48-in Vanity Light
