Coronado 60-in Ceiling Fan
Coronado 60-in Ceiling Fan
SKU:CF90960-MB
Discover the Coronado Fan – a sleek and modern masterpiece with a hint of industrial flair. With its four blades and striking design, it effortlessly blends aesthetics with functionality. Available in two sizes and three distinctive finishes, the Coronado Fan adapts to your space and style seamlessly. Enjoy the convenience of a smart fan, controllable via the Smart by Bond app or the included handheld remote. With six adjustable speeds, a reverse function, and dimming capabilities on the light kit, the Coronado Fan redefines comfort and sophistication in one elegant package.
Technical Description
Technical Description
- Painted Steel with ABS Blades
- 90CRI, 3000K, LED
- Frosted Diffuser
- Remote + Smart Control
- Suitable for Sloped Ceiling, Other Rod Length Sold Seperately
- Kuzco
Specifications
Specifications
Family | Coronado |
Color Temperature | 3000K |

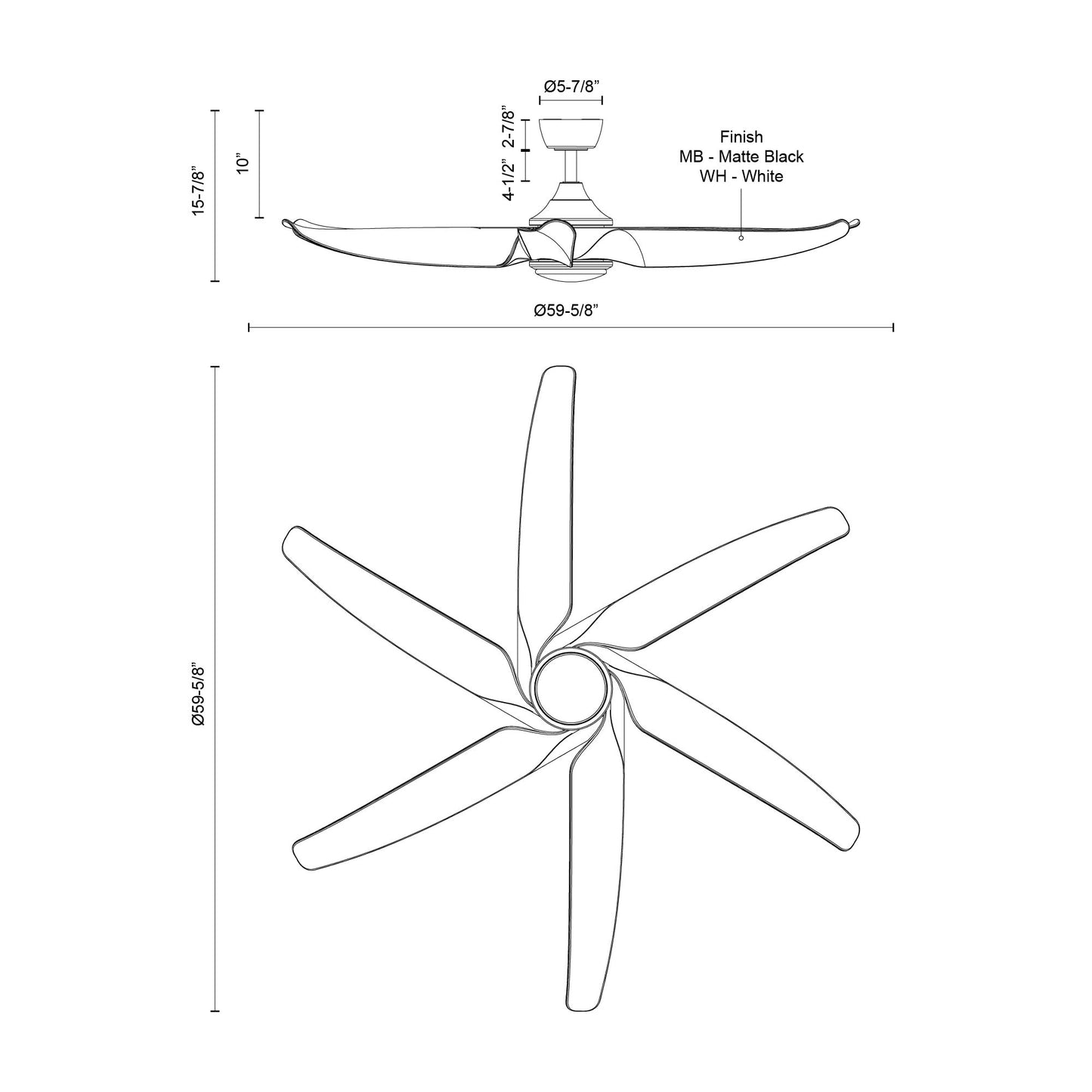

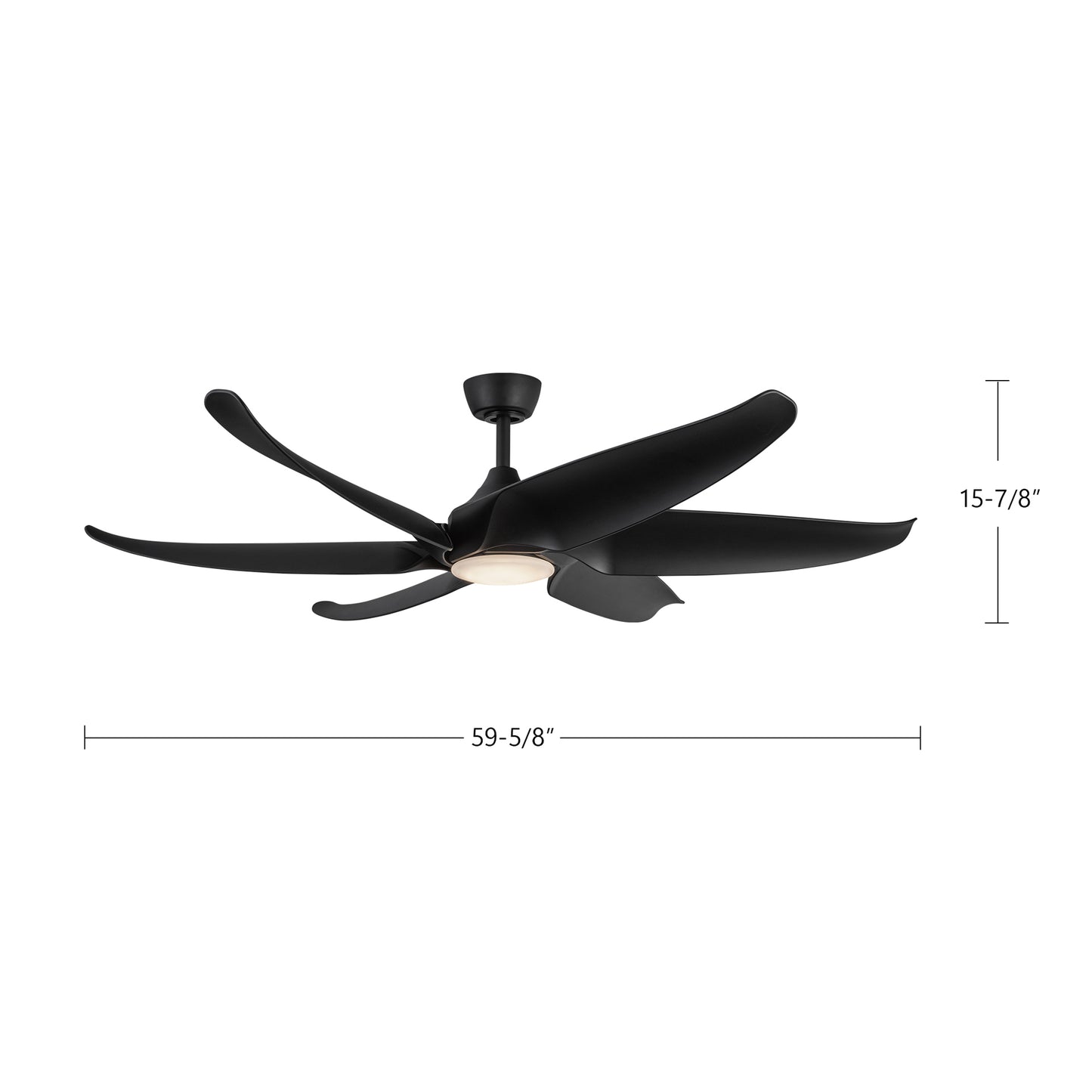

Fixture Dimensions | 15-7/8 H x 59-5/8 D |
Primary Dimension | 60-in |
Canopy Dimensions | D5-7/8" x H2-7/8" |
Location Rating | Damp |
Wattage | Total 54W Max [18W LED + Max 36W Motor] |
Dimming Range | 100% - 10% |
Dimming Type | Remote/Smart Control/Dimming |
CRI | 90CRI |
LED Total Lumens | 1900lm |
Fixture Delivered Lumens | MB-1097lm, WH-1178lm |
LED Life Span | 50,000 hours |
Rod Dimensions | 6" (for different rod length, contact factory) |
Fixture Input Voltage | 120V |
Illumination Direction | Down |
Sloped Ceiling Adaptable | 18 Deg |
Hanging Method | Down Rod |
Adjustable | Yes |
Material | Steel + ABS Blades |
Diffuser Material | Frosted Polymeric Lens |
UL Certified | Yes |
Number Of Fan Blades | 6 |
Fan Blade Pitch | 36 |
Fan Airflow Efficiency | 234 |
Motor Type | DC |
Motor Speeds | 6 |
Reversible Motor | Yes |
High CFM | 7939 |
Average CFM | 5463 |
Low CFM | 3267 |
Min Ceiling To Blade Distance | 14.11 |
Motor Rpm Range | 50-102 |
Country Of Origin | CHINA |

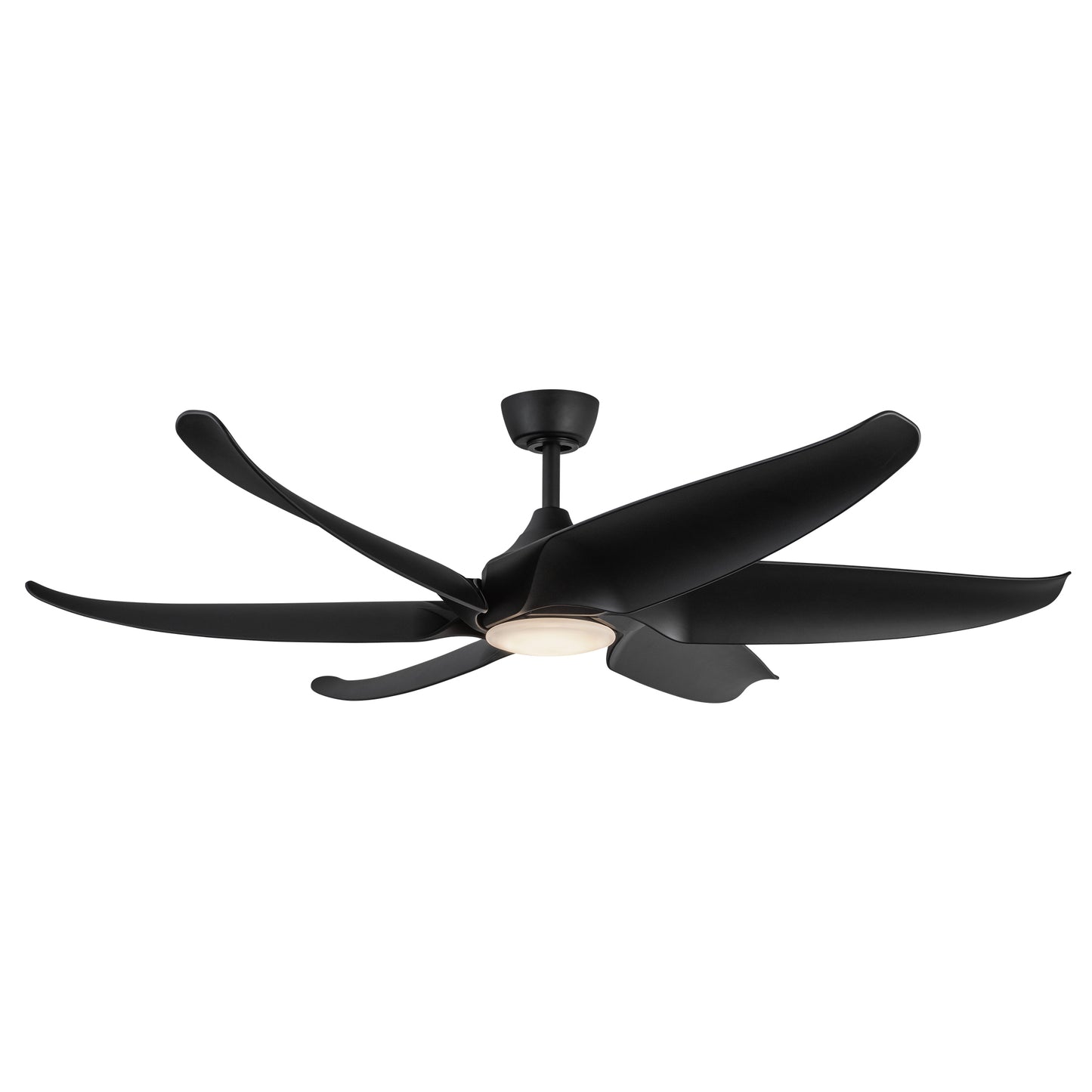

![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_CROPLS.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_02.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_03.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_04_DETAIL.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_05_DETAIL.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_SMART_APP_01.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_SMART_APP_02.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-MB_SMART_APP_03.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CF90960-DRAWING.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_LIFESTYLE.jpg?v=1724960189&width=1445)

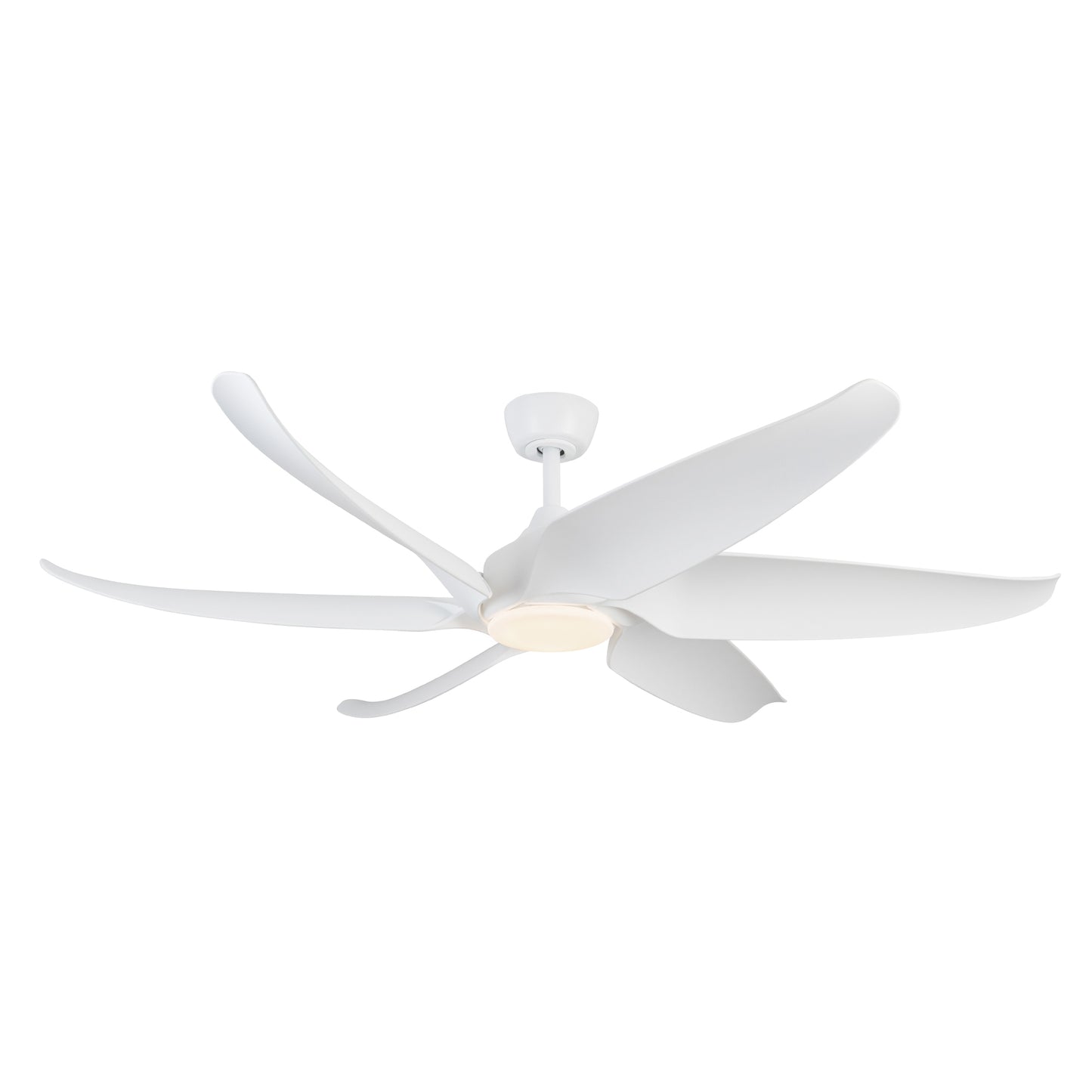

![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_02.jpg?v=1724960189&width=1445)

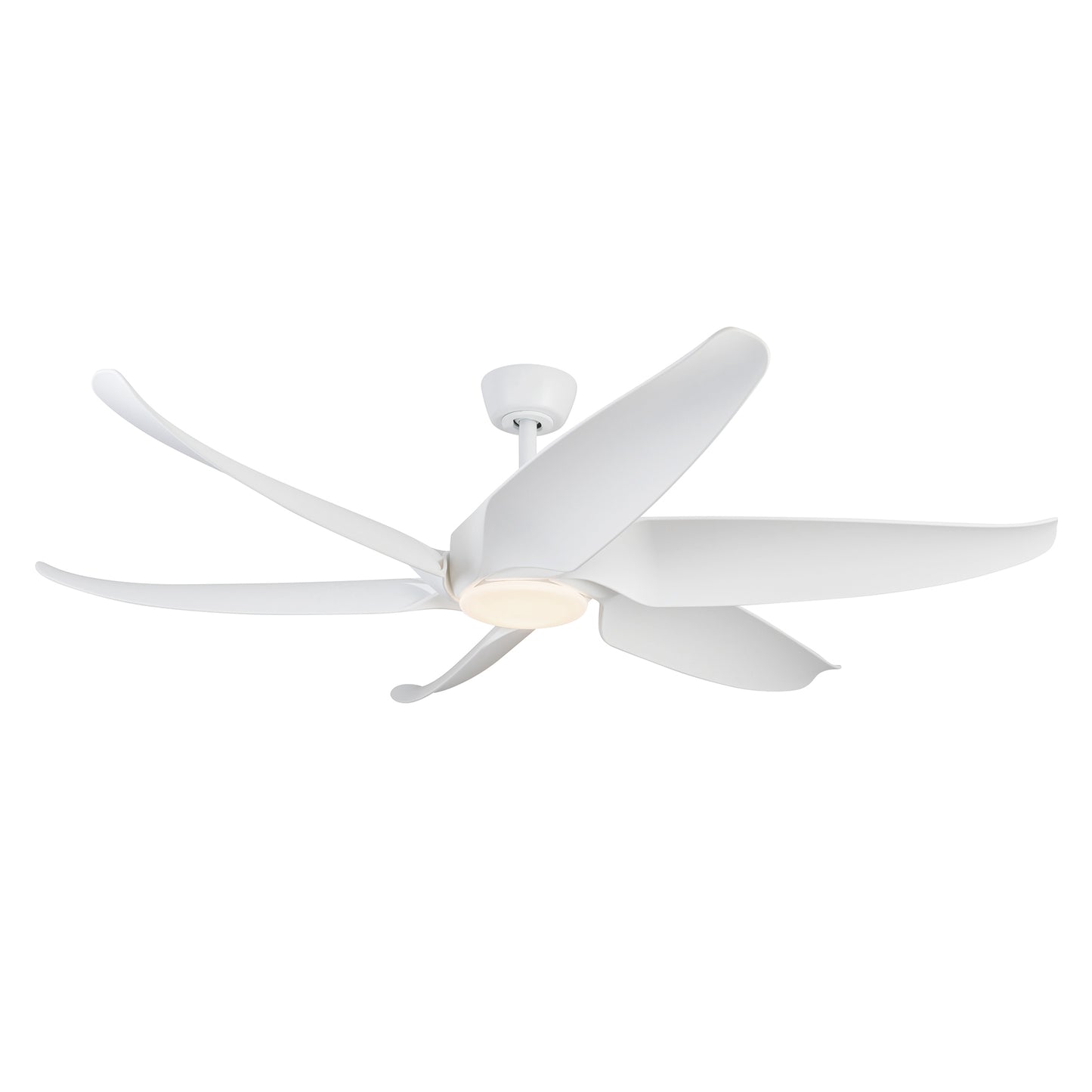

![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_03.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_04_DETAIL.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_05_DETAIL.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_SMART_APP_01.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_SMART_APP_02.jpg?v=1724960189&width=1445)
![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_SMART_APP_03.jpg?v=1724960189&width=1445)

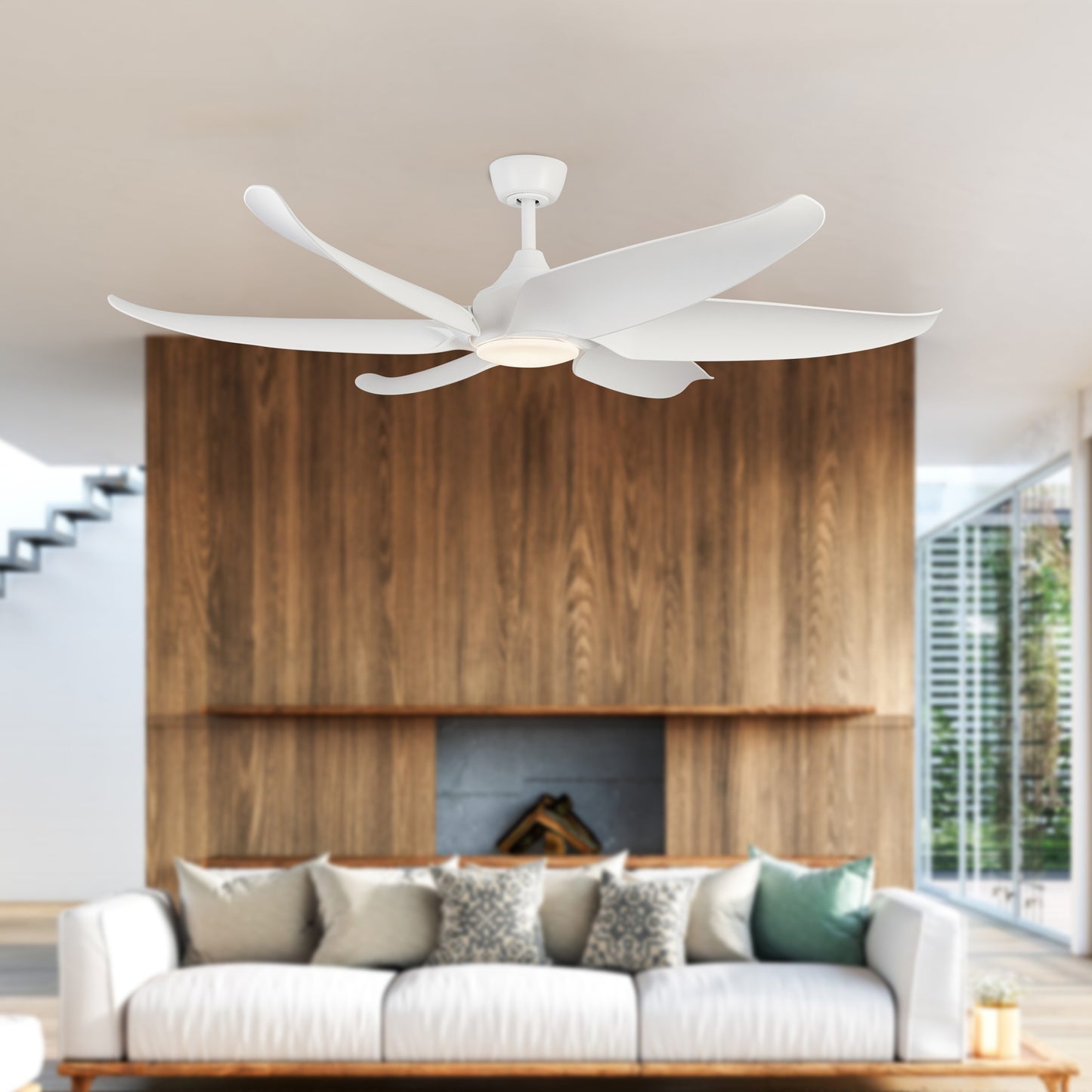

![Coronado 60-in Ceiling Fan](http://kuzcolighting.com/cdn/shop/files/CORONADO_CF90960-WH_CROPLS.jpg?v=1724960190&width=1445)
