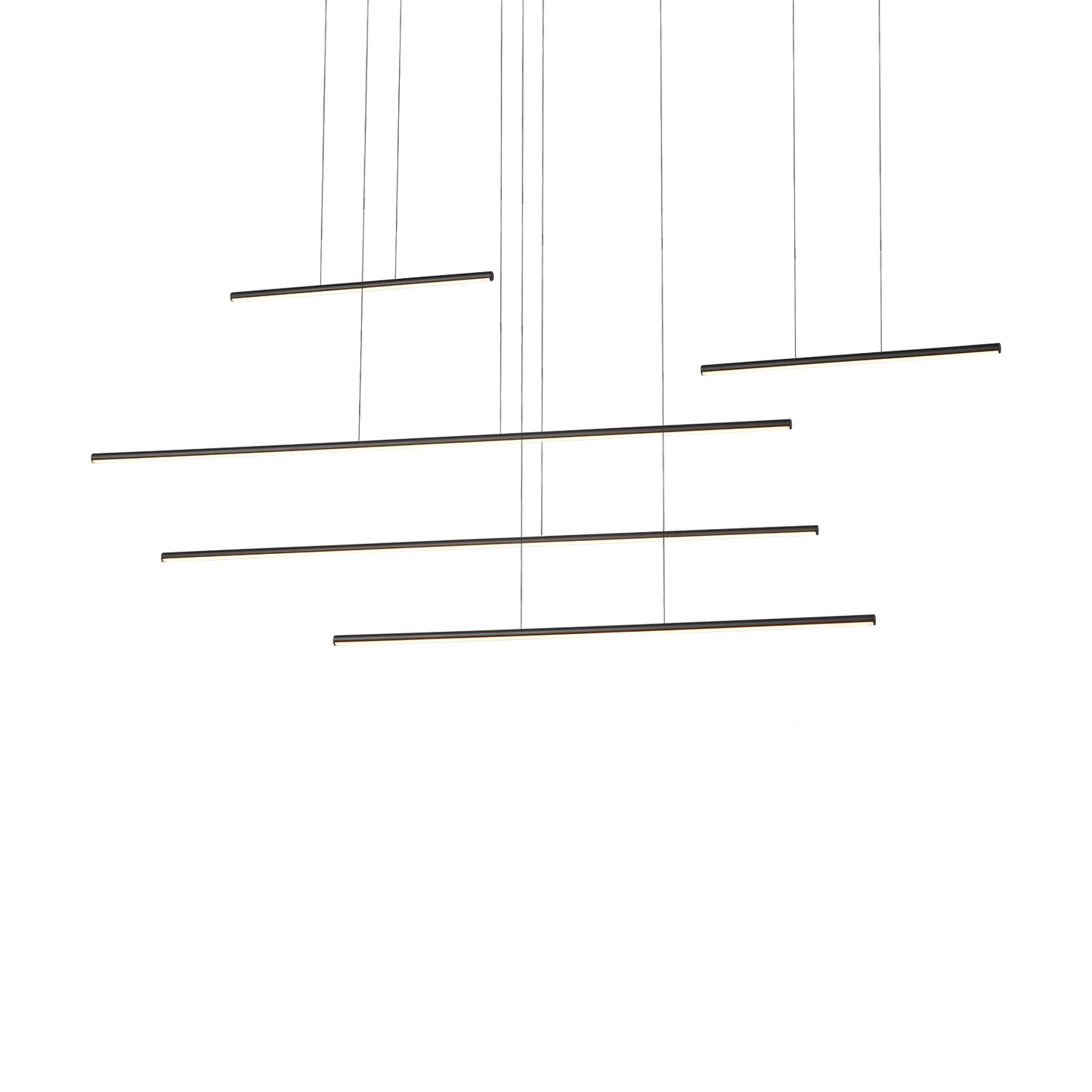

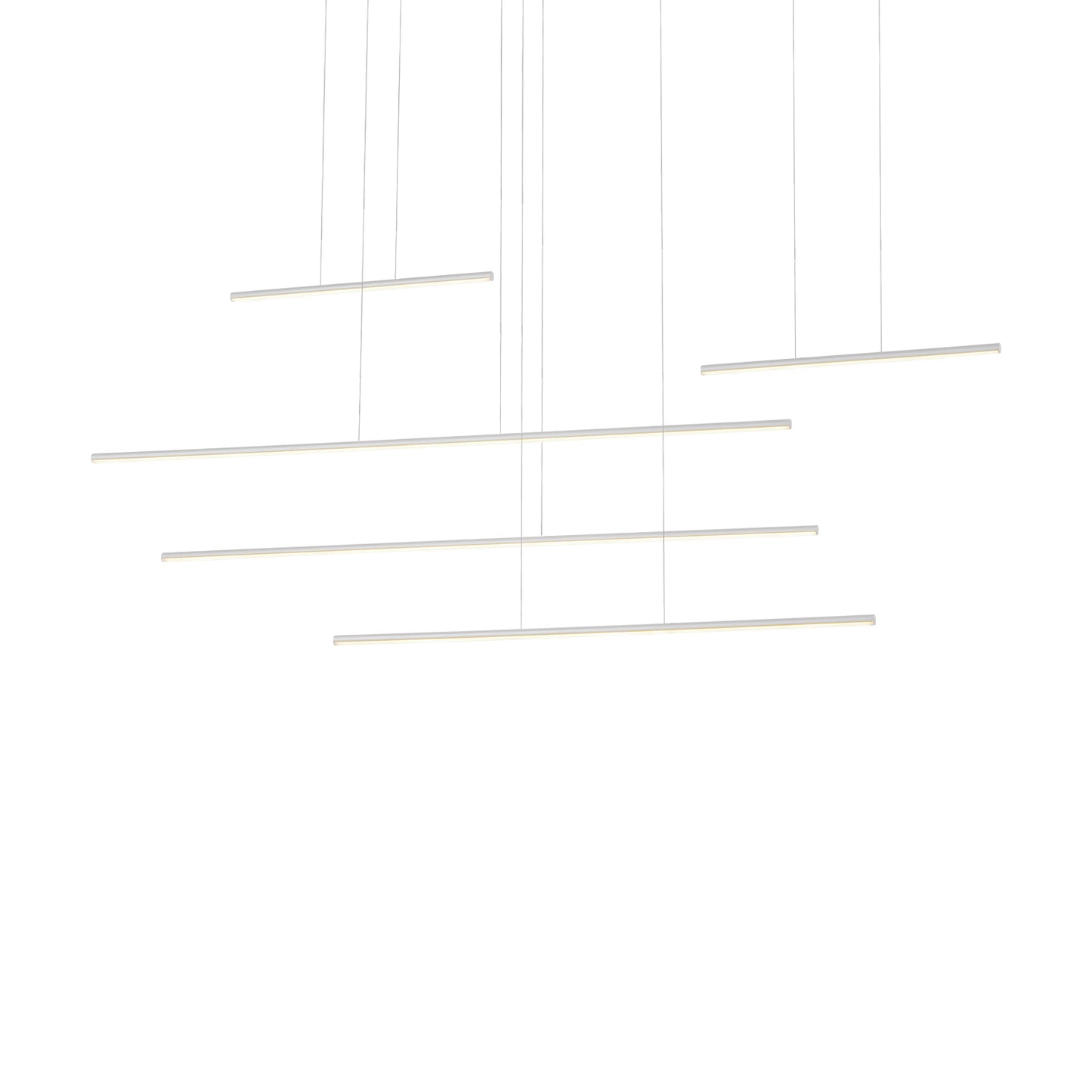

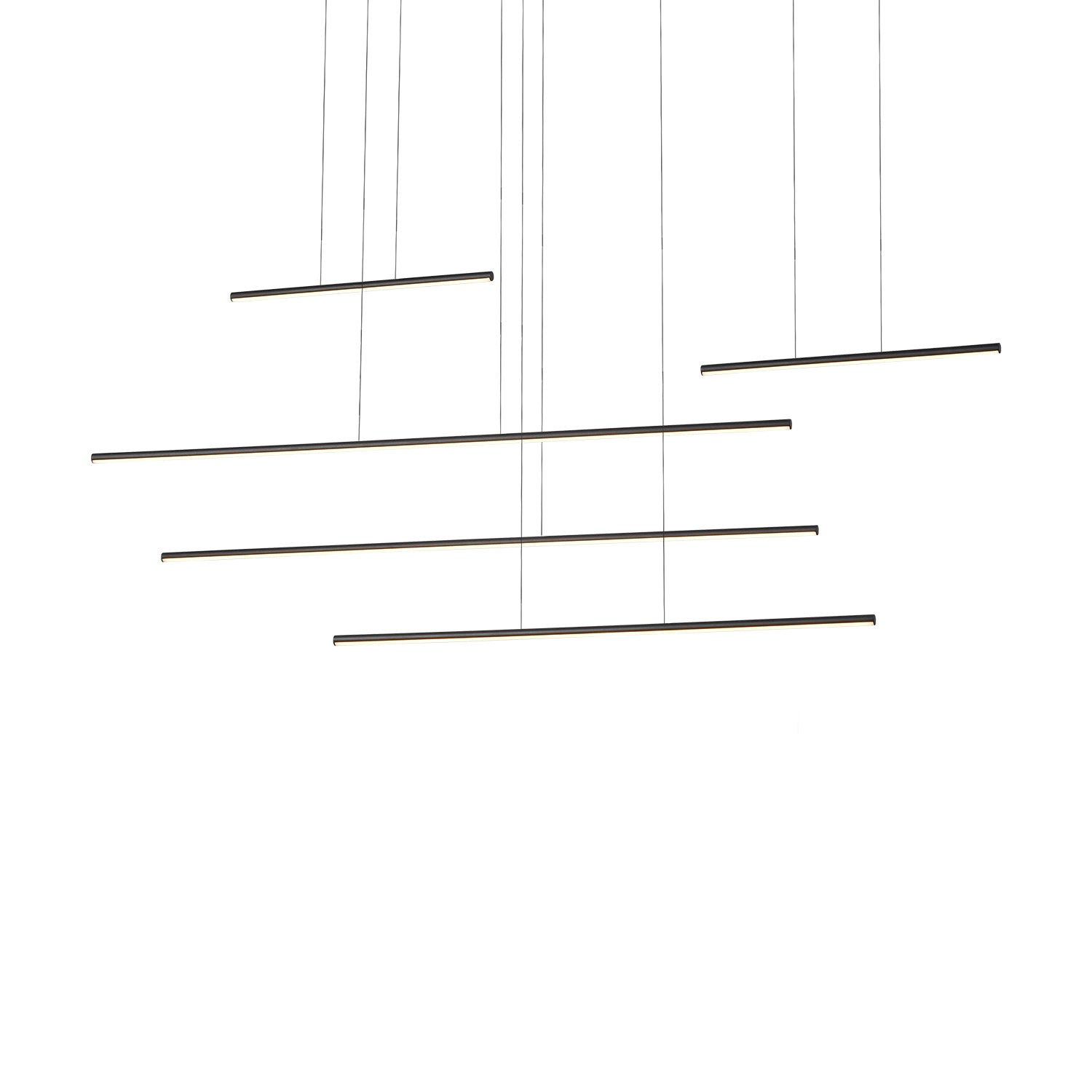

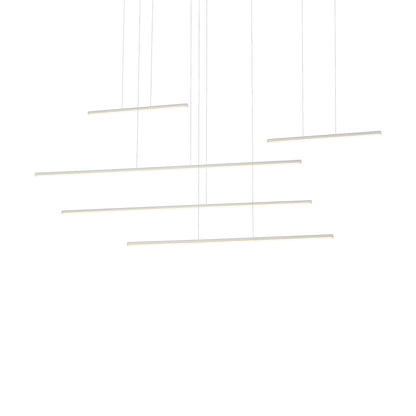

Chute Motion 60-in Multi Pendant
Chute Motion 60-in Multi Pendant
SKU:MP14960-BK
Extruded circular aluminum horizontal lamp rods. Flexible silicon rubber diffusers. Lightly textured powder-coat colors. Outward-emitting light. Custom options available.
Technical Description
Technical Description
- Extruded circular aluminum horizontal lamp rods
- Flexible silicon rubber diffusers
- Lightly textured powder-coat colors
- Custom options available
Specifications
Specifications
| Family | Chute Motion |
| Color Temperature | 3000K |

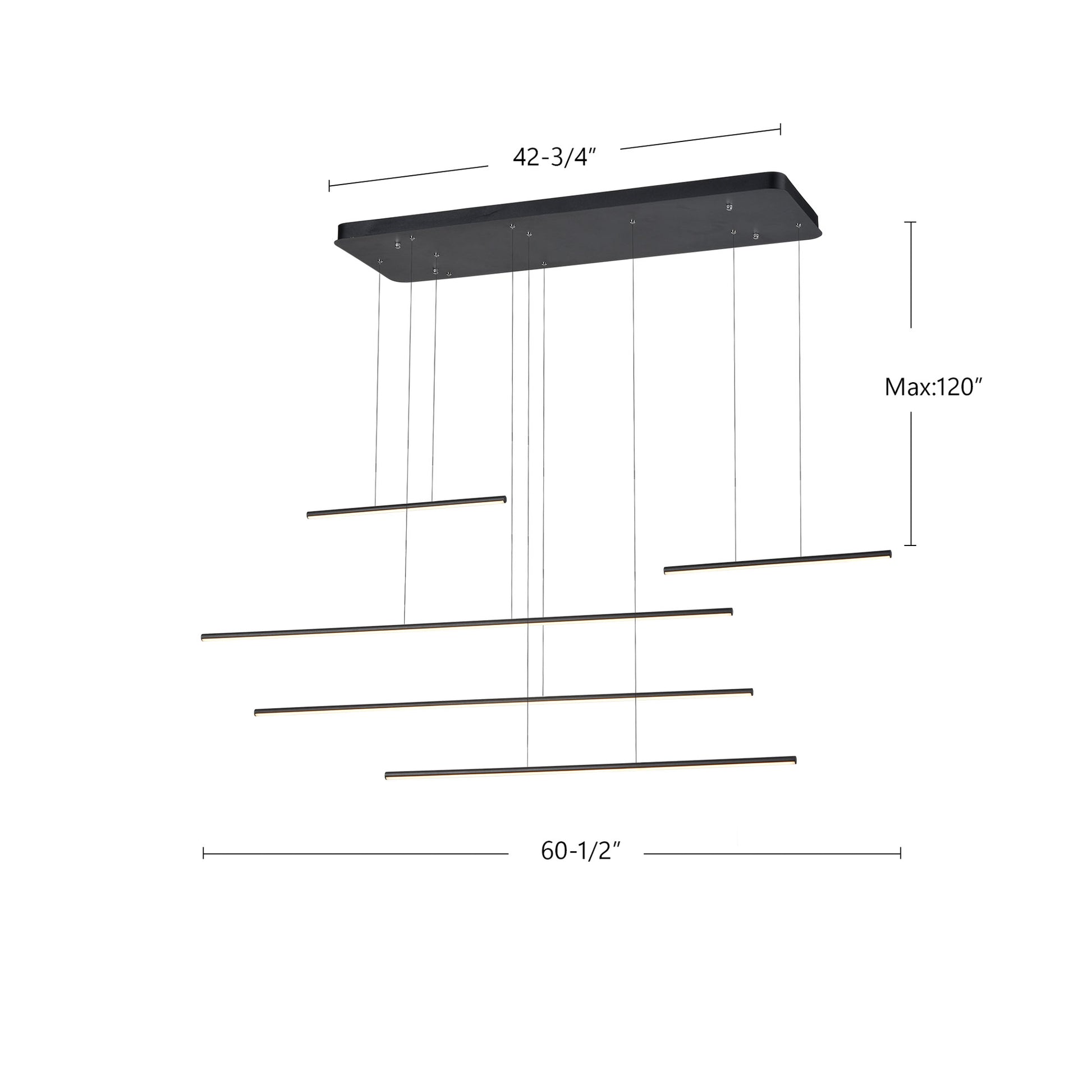

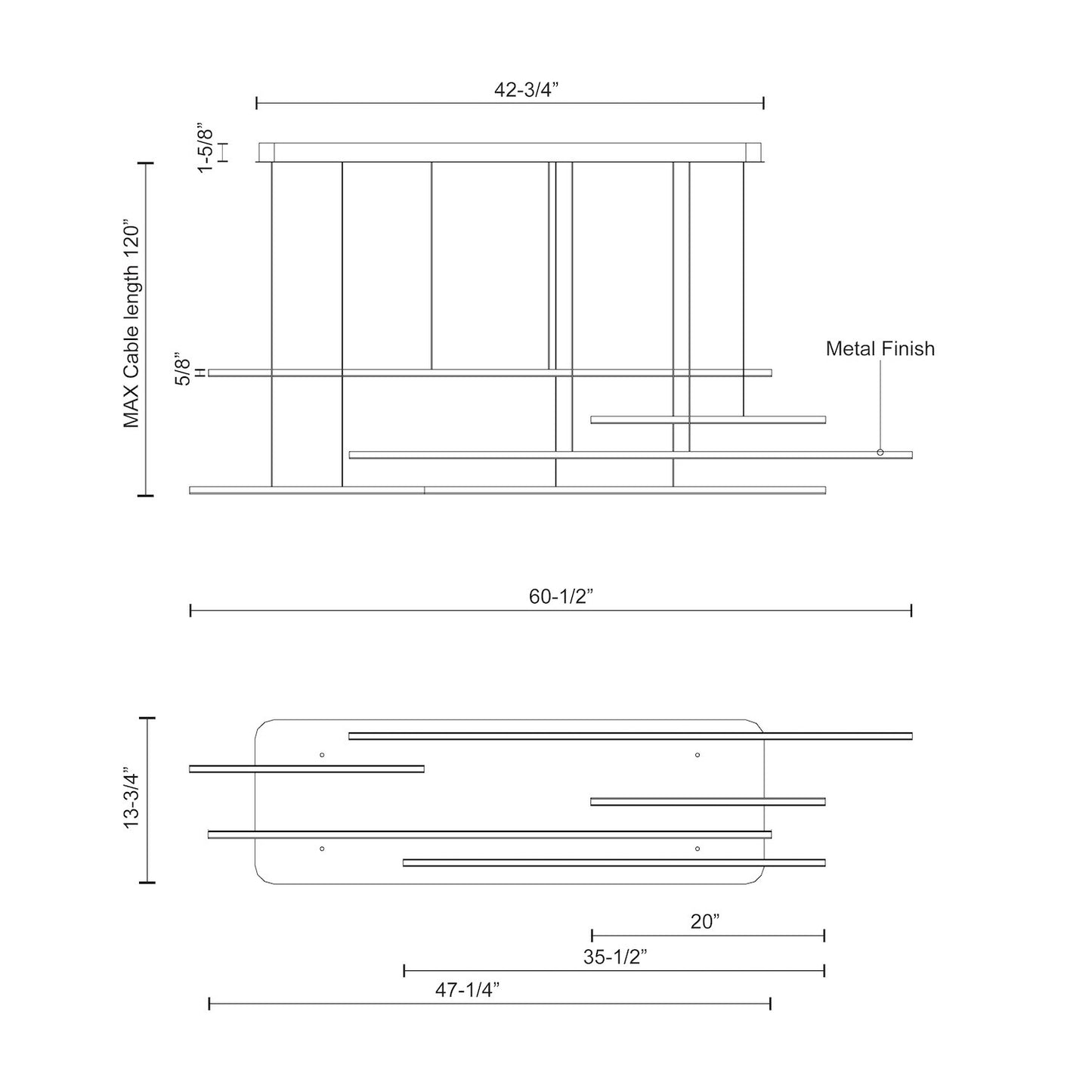

| Fixture Dimensions | 60-1/2 L x 13-3/4 W x 5/8 H |
| Primary Dimension | 60-in |
| Canopy Dimensions | L42-5/8" x W13-7/8" x H1-7/8" |
| Location Rating | Dry |
| Wattage | 70W |
| Dimming Range | 100% - 10% |
| Dimming Type | TRIAC/ELV (Not Included) or 0-10V Dimmer (Optional, Not Included) |
| CRI | 90CRI |
| LED Total Lumens | 4940lm |
| Fixture Delivered Lumens | BK-2925lm|WH-3575lm |
| LED Life Span | 50,000 hours |
| External Wire Type | BK - Black Wire; WH - White Wire |
| External Wire Length | 120" Max |
| Fixture Input Voltage | 120-277V |
| Illumination Direction | Downlight |
| Sloped Ceiling Adaptable | Yes |
| Hanging Method | Wire |
| Adjustable | Yes |
| Material | Aluminum + Polymeric Material |
| Diffuser Material | White Acrylic Diffuser |
| ETL Compliant | Yes |
| CEC Title 24 Ja8 | Yes |
| Country Of Origin | CHINA |
* All Universal Voltage and 0-10 Dimming products allow for 120-277V input voltages. All 0-10 Dimming (Dimmer not included) products allow for 0-10 volt dimming.
* Please review delivered lumens for most accurate lumen output
* Please visit Our Warranty Page for specific warranty details and limitations.
