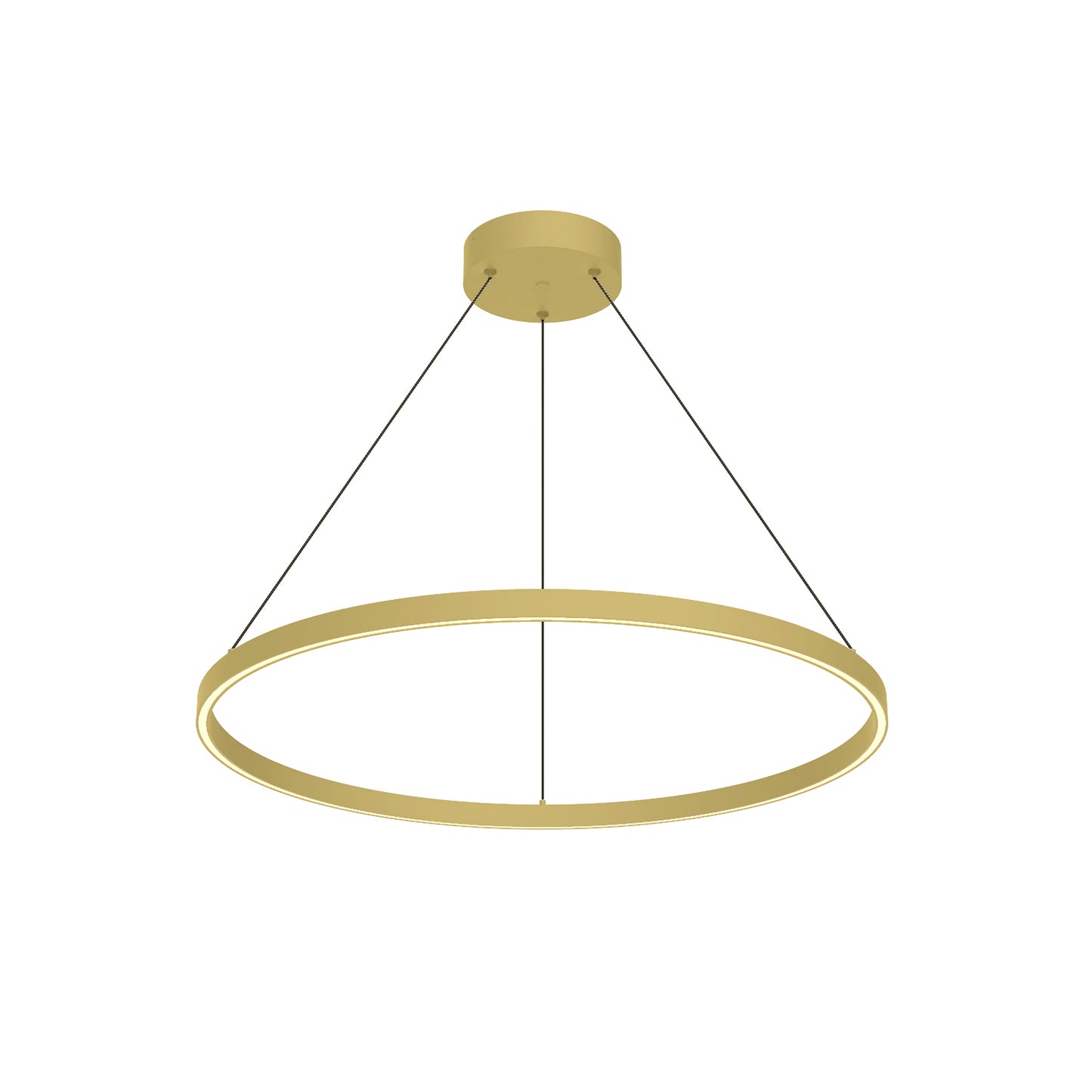

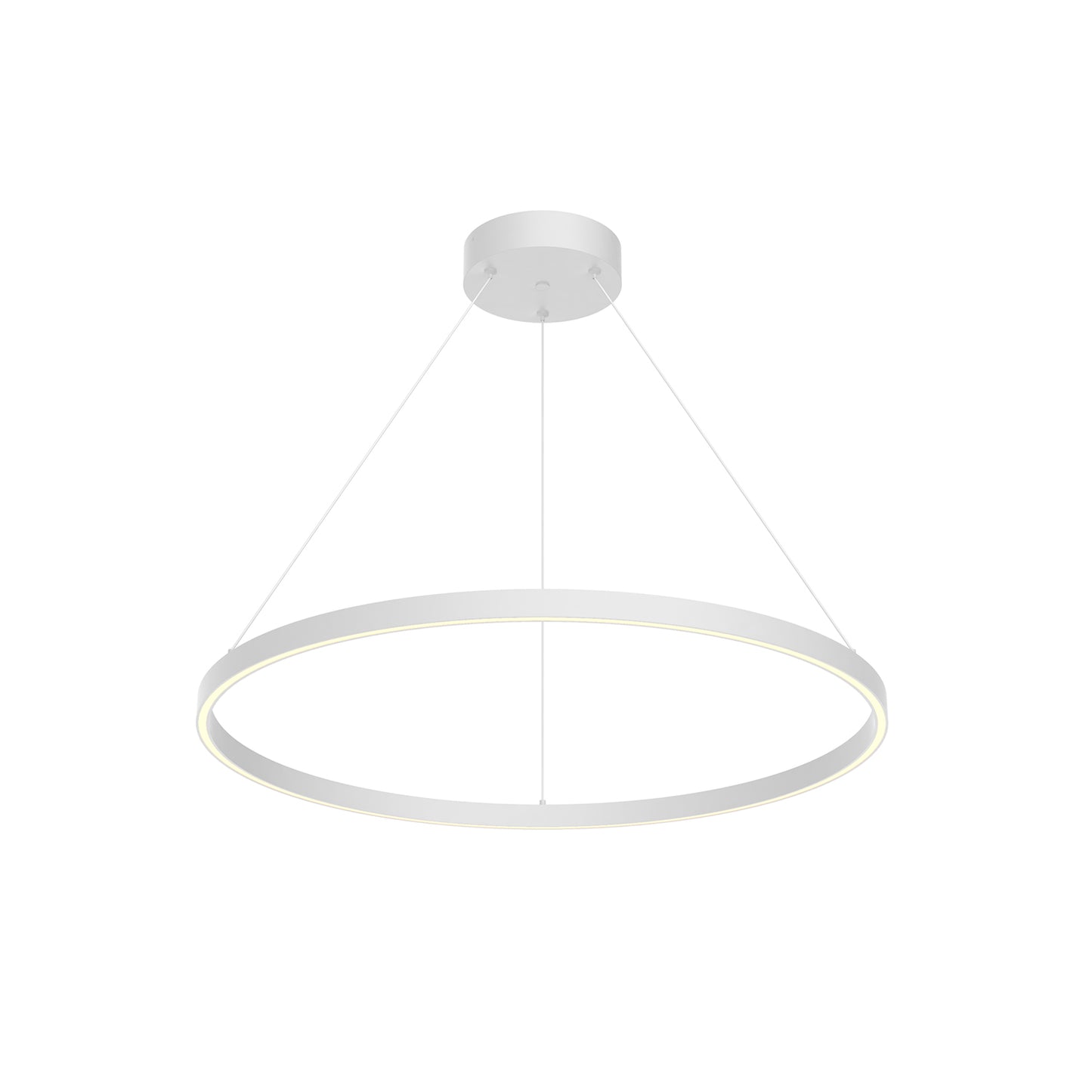

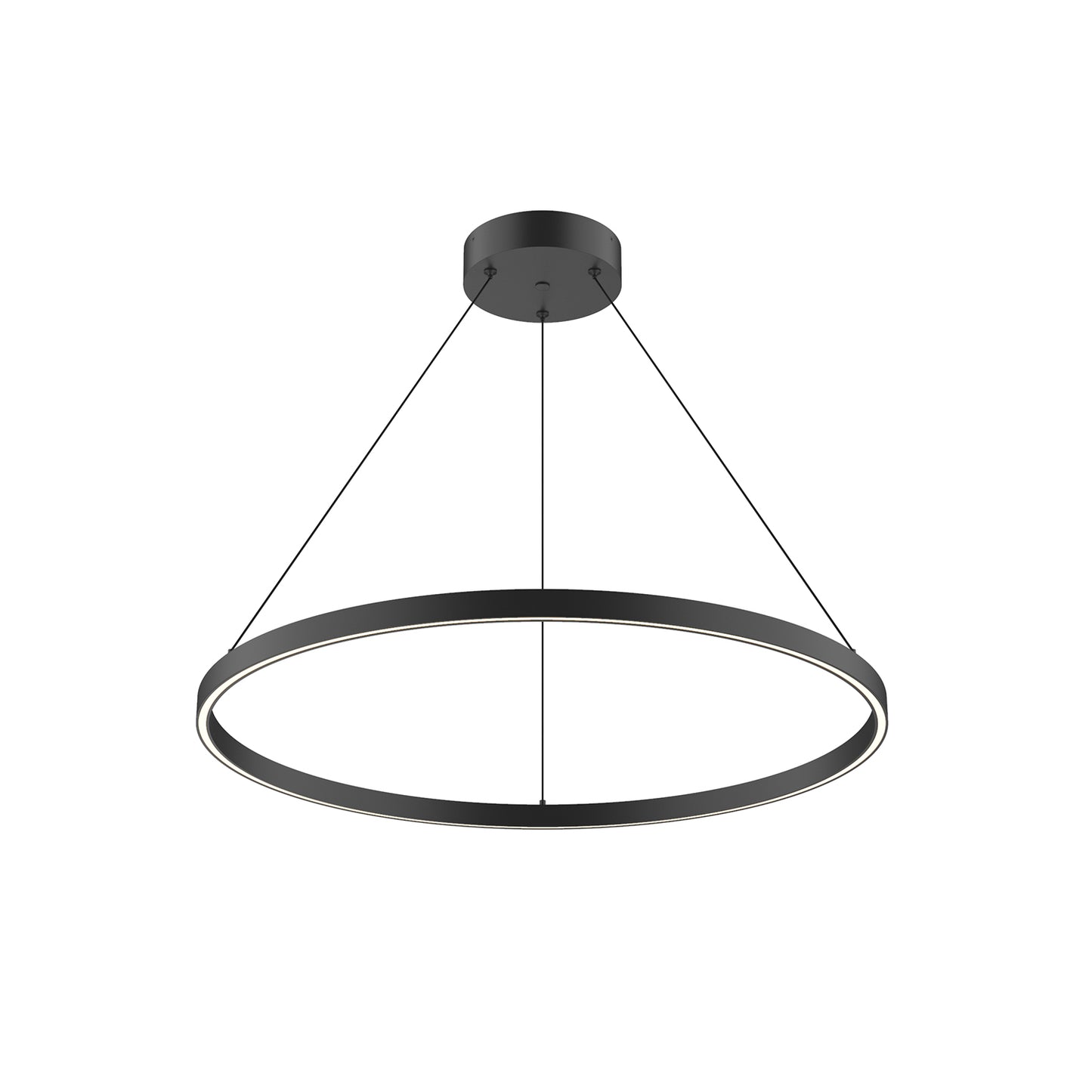

Cerchio 32-in Pendant

Cerchio 32-in Pendant

PD87132-BK

Extruded and rolled aluminum with rectangular profile. Flush silicone diffuser. Matte powder-coated finish. Down light. Duo canopy mounting style

Where to Buy

Technical Description

Specifications


Family Cerchio
Color Temperature 3000K

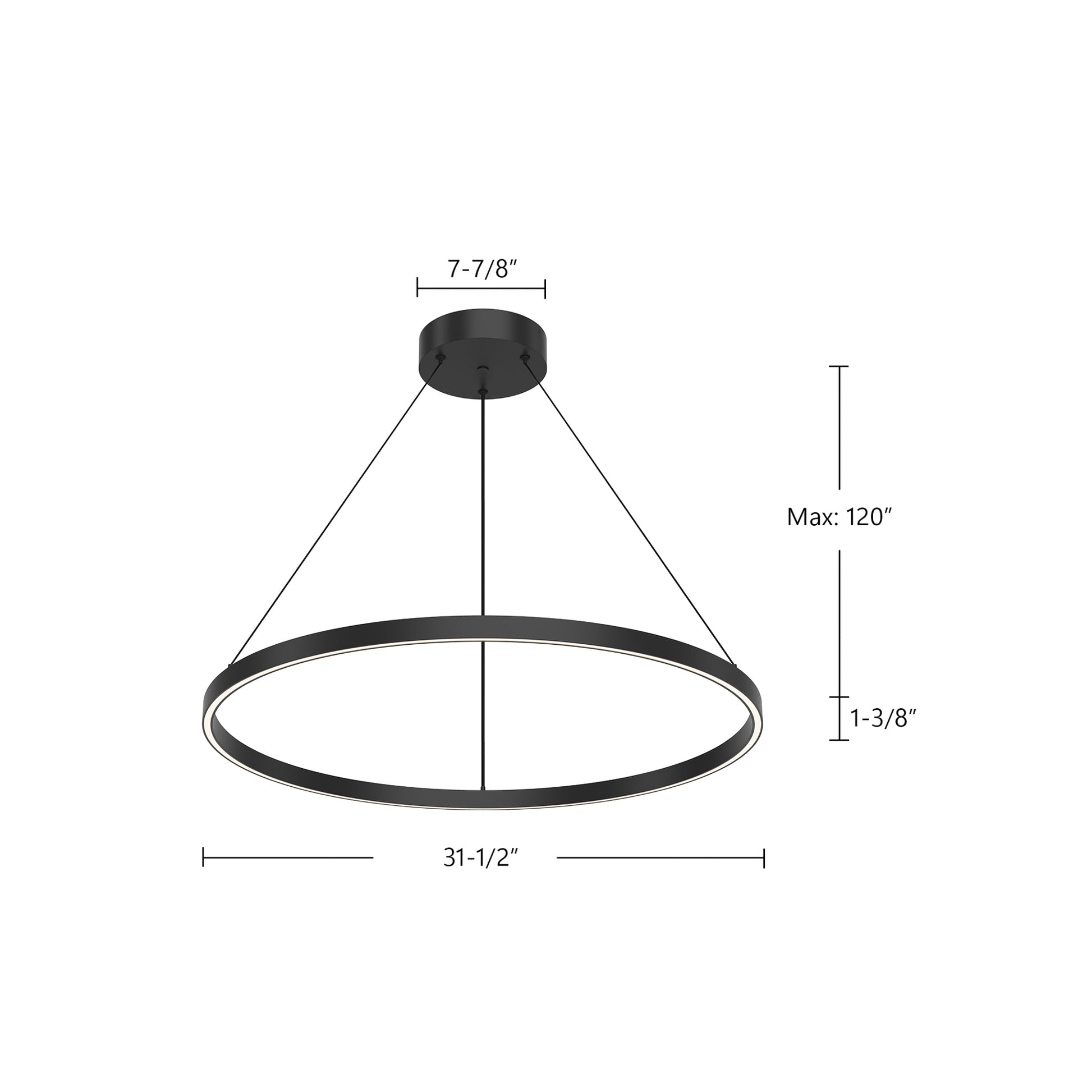

Fixture Dimensions 31-1/2 L x 31-1/2 W x 1-3/8 H x 31-1/2 D
Primary Dimension 32-in
Canopy Dimensions D8-3/4" x H2"
Location Rating Dry
Wattage 64W
Dimming Range 100% - 10%
Dimming Type TRIAC/ELV (Not Included) or 0-10V Dimmer (Optional, Not Included)
CRI 90CRI
LED Total Lumens 4700lm
Fixture Delivered Lumens BG-1920lm*|BK-1920lm*|WH-2585lm
LED Life Span 50,000 hours
External Wire Type BG - Black Wire|BK - Black Wire|WH - Clear Wire
External Wire Length 120" Max
Fixture Input Voltage 120-277V
Illumination Direction Downlight
Sloped Ceiling Adaptable Yes
Hanging Method Wire
Adjustable Yes
Material Aluminum + Polymeric Material
Diffuser Material Frosted Silicone Diffuser
ETL Compliant Yes
CEC Title 24 Ja8 Yes
Country Of Origin CHINA

* All Universal Voltage and 0-10 Dimming products allow for 120-277V input voltages. All 0-10 Dimming (Dimmer not included) products allow for 0-10 volt dimming.

* Please review delivered lumens for most accurate lumen output

* Please visit Our Warranty Page for specific warranty details and limitations.
